JOIL Diaphragm Repair Kit 2.5-inch, suitable for JISI65 Electromagnetic Pulse Valve

Product Description:

The JOIL membrane is favored in many harsh industrial settings due to several key characteristics. Firstly, it boasts excellent durability and a long service life. This is attributed to its unique interlayer design and high-quality elastic materials, providing exceptional wear-resistance and fatigue resistance. Official information indicates that laboratory testing has shown a blowing life of up to 3 million times, with many membrane models promising over 1 million blows in practical applications. Consequently, it can operate reliably for extended periods under normal conditions, reducing the need for frequent replacements.

Another notable feature of JOIL membranes is the use of top-quality materials and craftsmanship. Typically constructed from special nylon and synthetic rubber composites, these materials offer the membrane high mechanical strength and corrosion resistance, while preserving flexibility and sealing properties. This ensures the membrane can withstand various harsh working conditions, including exposure to oil stains, chemical agents, and fluctuations in temperature.

In terms of performance stability, the membrane is designed to facilitate fast opening and closing of the pulse valve. This design ensures a powerful instantaneous impact airflow during dust cleaning, leading to efficient dust removal, reduced system pressure loss, and the smooth operation of the dust collector system.

Lastly, JOIL membranes exhibit wide environmental adaptability. They can operate within a broad range of working pressures, such as 0.2-0.6 MPa or 0.3-0.8 MPa, and ambient temperatures from -10°C to +55°C. Clean compressed air is the required working medium for optimal performance.

Applications:

As the core component of pulse valves, JOIL membranes are used in the same way as pulse valves, mainly in the industrial dust removal field that requires efficient dust control.

Bag filter dust cleaning system: This is the core application of JOIL membrane. It is widely used in bag dust removal equipment in industries such as steel metallurgy (such as POSCO in South Korea), cement building materials (such as Lafarge Cement 23), power, chemical, aluminum (such as Alcoa in the United States), and waste incineration. In these dust collectors, the pulse valve is controlled for spraying, and the function of the diaphragm is to timely and effectively remove the accumulated dust on the filter bag, ensuring that the processing capacity and dust collection efficiency of the dust collector are always maintained in good condition.

Material recycling and pneumatic conveying system: In industries such as pharmaceuticals, food processing, and pigment production that require precise separation or recycling of expensive materials, pulse valves equipped with JOIL membranes are also commonly used in related dust removal equipment to help recycle materials and maintain a clean production environment.

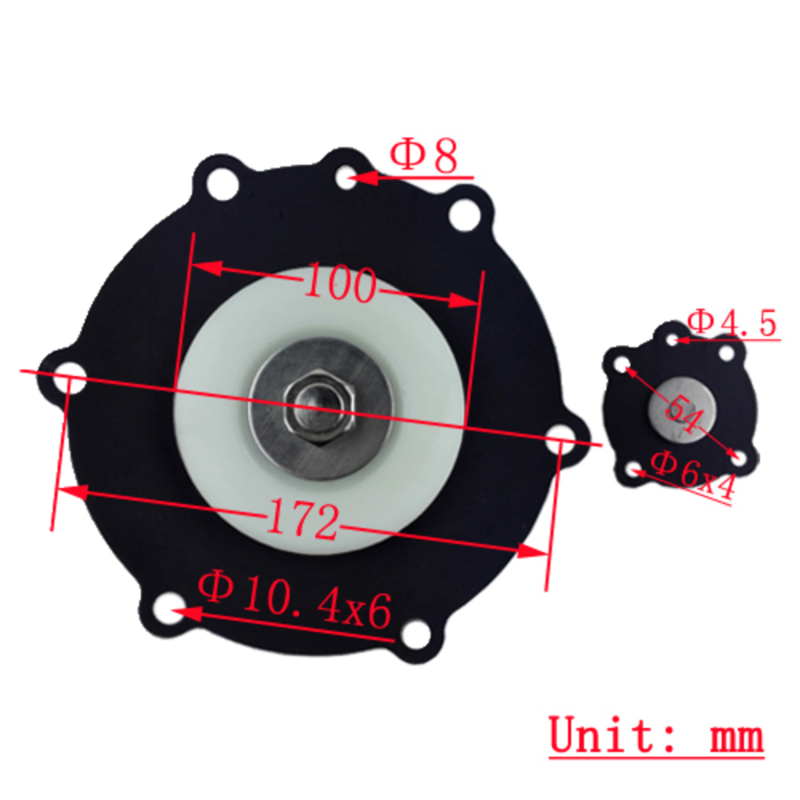

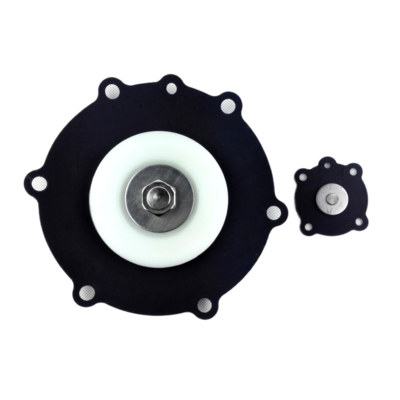

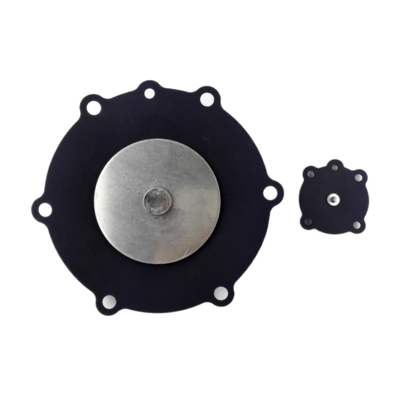

Diaphragm Repair Kit For 2 1/2'' JOIL JISI 65 JISR 65 JIFI 65 JIFR 65 Pulse Valve

This is NBR diaphragm repair kit for JOIL 2.5 inch JISI 65, JISR 65, JIFI 65, JIFR 65 pulse jet valve.

1. Product Name: Diaphragm Repair Kit.
2. Diaphragm Material: NBR.
3. Fitted Valves: JICI 20, JICR 20, JISI 20, JISR 20, JICI 25, JICR 25, JISI 25, JISR 25, JICI 40, JICR 40, JISI 40, JISR 40, JIFI 40, JIFR 40, JISI 50, JISR 50, JIFI 50, JIFR 50, JISI 65, JISR 65, JIFI 65, JIFR 65, JISI 80, JISR 80, JIHI 80, JIHR 80, JIHI 100, JIHR 100.

Support and Services:

Our product technical support team for the Pulse Valve Diaphragm is available to assist with any questions or issues you may have regarding the product. We provide extensive services to ensure that your pulse valve diaphragm operates efficiently and effectively.

Our services include troubleshooting assistance, installation guidance, maintenance tips, and product information to help you maximize the performance of your pulse valve diaphragm. Our team is dedicated to providing top-notch support to meet your needs and ensure your satisfaction with our product.

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality replacement diaphragm for pulse valves.

Material: Durable rubber

Packaging: Each diaphragm is individually packed in a sealed plastic bag to prevent damage during shipping.

Shipping: We ship the product in sturdy cardboard boxes to ensure safe delivery to your location.

Order now and enjoy reliable performance with our Pulse Valve Diaphragm!
