Taeha TH-5820-B MD01-20 MD02-20 3/4 Inch Pulse Valve Diaphragm TH-4820-B

Product Description:

Taeha diaphragm is the core component of electromagnetic pulse valve, and its performance directly affects the working efficiency and service life of the pulse valve. The following are its main characteristics:

• Durability and Long Life: Taeha film has attracted attention for its durable characteristics. According to some sources, the normal temperature membrane has a working life of not less than 1 million times under the conditions of ambient temperature of -30 ℃ to 90 ℃ and working pressure difference of 0.8MPa; The high-temperature membrane has a lifespan of no less than 1 million cycles under the same working pressure difference at an ambient temperature of 150 ℃ to 200 ℃. This means that under normal operating conditions, they can work stably for a long time, reducing replacement frequency and maintenance costs.

• Materials and processes: The membrane is often made of special composite materials, such as high-quality nylon and synthetic rubber composites. This material selection gives it good mechanical strength, elasticity, and fatigue resistance. The clamping cloth is usually located in the middle of the film, and the surface of the film is required to be smooth, flat, and free of defects such as cracks and bubbles. The Shore hardness can be adjusted between 50 degrees and 80 degrees to meet the specific needs of different customers.

• Reliable sealing: High quality Taeha diaphragm can provide effective sealing for pulse valves, prevent compressed air leakage, ensure dust cleaning effect and reduce energy consumption.

Applications:

Taeha membranes are primarily utilized in pulse cleaning systems within the industrial dust removal sector. They serve as a crucial component for ensuring the proper functioning of pulse valves.

The bag filter dust cleaning system represents a fundamental application of Taeha membranes. It finds extensive use in industries necessitating effective dust control, such as cement, steel, metallurgy, chemical industry, power generation, waste incineration, among others. Within the bag filter system, the pulse valve, operated by the controller, utilizes compressed air to expel dust accumulated on the filter bag. A key role of the membrane is to facilitate the swift opening and closing of the air passage, with its precision and reliability directly impacting the efficacy of dust cleaning and the operational resistance of the dust collector.

Material recycling and pneumatic conveying are additional areas where Taeha membranes, integrated into pulse valves, can be applied. Industries like pharmaceuticals, food processing, and pigment manufacturing can benefit from using dust removal equipment equipped with these membranes to assist in reclaiming costly raw materials or upholding a hygienic production environment.

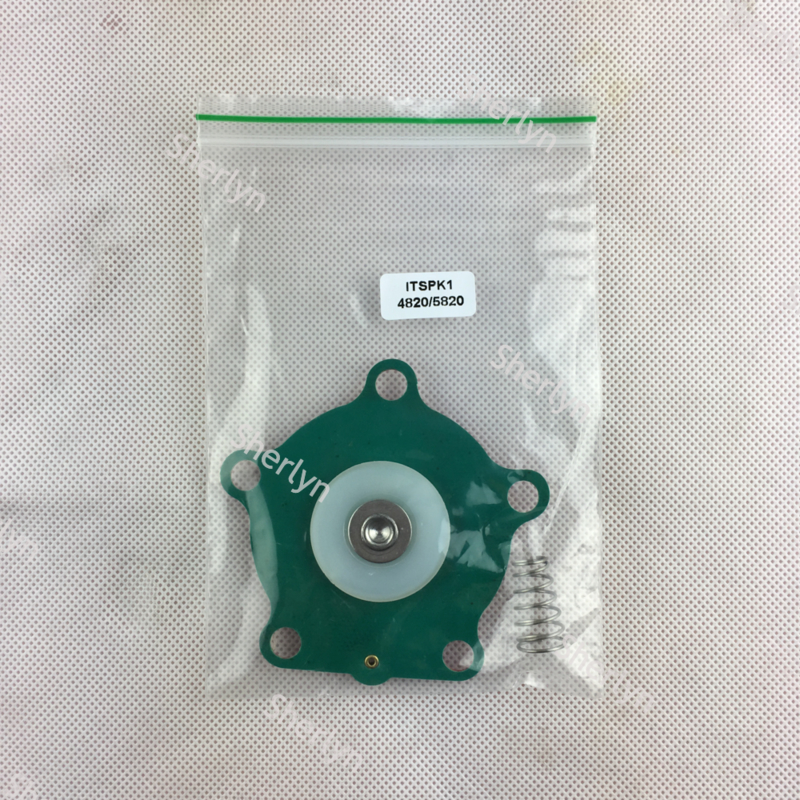

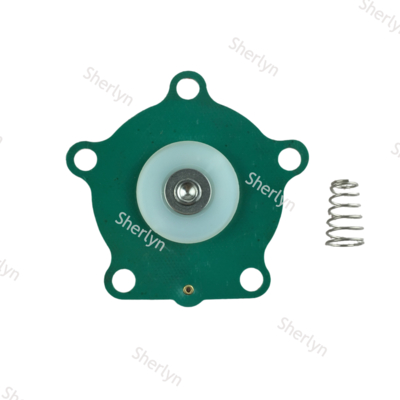

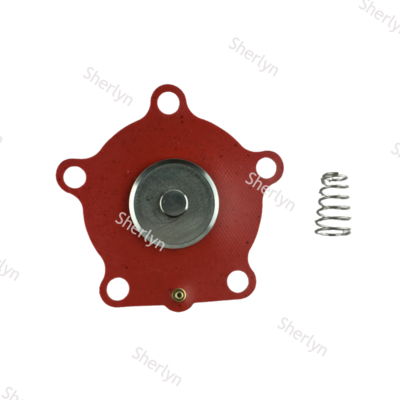

3/4'' MD01-20 MD02-20 Diaphragm Kits For Taeha Pulse Jet Valve

MD01-20, MD02-20 Diaphragm (Membrane) for Taeha pulse valve TH-5820-B, TH-4820-B, TH-5825-B, TH-5820-C, TH-4820-C; Pulse Jet valves are indirect type solenoid valves. When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm. Then the diaphragm is suddenly opened. When it is de-energized, air passes through the hole to the chamber which can balance the air pressure and close the valve. The opening and closing of the valve are done very fast for filter cleaning and consumption of compressed air effectively.

Ordering Code of Diaphragm For Taeha Pulse Valve:

Support and Services:

Product Technical Support and Services for Pulse Valve Diaphragm:

- Comprehensive troubleshooting assistance for installation and operation issues.

- Expert guidance on maintenance and care to ensure optimal performance.

- Access to online resources, manuals, and instructional materials for user convenience.

- Warranty coverage and assistance with product replacements or repairs as needed.

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality replacement diaphragm for pulse valves.

Material: Durable rubber

Package Includes: 1 Pulse Valve Diaphragm

Shipping Information:

- All orders are processed within 1-2 business days.

- We offer standard and expedited shipping options.

- Shipping costs will be calculated at checkout.
