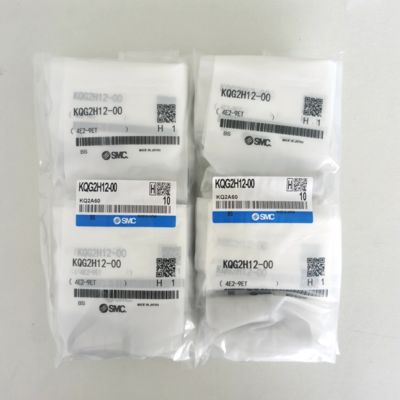

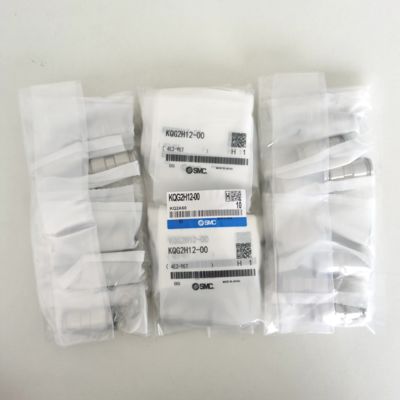

Product Description:
The SMC KQG2H Series are stainless steel 316 (SUS316) one-touch fittings designed for applications requiring high corrosion resistance, chemical resistance, and high temperature tolerance. These fittings feature a push-to-connect design, with metal parts made of SUS316 stainless steel and seal parts made of special FKM material. They are grease-free and suitable for use with steam.
Compared to the previous KQG series, this series is 30% smaller in volume and 62% lighter in weight, available in both metric and inch sizes.
Features:
Premium Material
Metal parts made of SUS316 stainless steel , providing better corrosion and pitting resistance than 304 stainless steel, especially in chloride environments.
Compact & Lightweight
30% smaller volume and 62% weight reduction compared to the traditional KQG series, ideal for space-constrained applications.
High Temperature Resistance
Fluid temperature range from -5°C to +150°C.
Wide Compatibility
Applicable to various tubing materials including FEP , PFA , nylon , soft nylon , polyurethane , polyolefin , etc.
Multi-Fluid Application
Suitable for air, water, steam, and other fluids.
Safe & Reliable
Operating pressure range -100kPa to 1MPa, with a proof pressure of 3.0MPa.
Technical Parameters:
| Fluid |
Air, Water, Steam |
| Seal parts |
Special FKM |
| Fluid temperature |
-5 To 150˚C |
| Metal parts |
Stainless Steel 316 |
| Proof pressure |
3.0 MPa |
| Applicable tubing material |
FEP PFA Nylon Soft Nylon |
| KQG2H04-00 |
KQG2H04-06 |
KQG2H04-01S |
KQG2H08-01S |
KQG2H12-03S |
KQG2H04-01 |
KQG2H08-02 |
KQG2H12-02 |
| KQG2H06-00 |
KQG2H06-08 |
KQG2H04-02S |
KQG2H08-02S |
KQG2H12-04S |
KQG2H04-02 |
KQG2H08-03 |
KQG2H12-03 |
| KQG2H08-00 |
KQG2H08-10 |
KQG2H06-M5 |
KQG2H08-03S |
KQG2H16-03S |
KQG2H06-01 |
KQG2H10-01 |
KQG2H12-04 |
| KQG2H10-00 |
KQG2H10-12 |
KQG2H06-01S |
KQG2H10-01S |
KQG2H16-04S |
KQG2H06-02 |
KQG2H10-02 |
KQG2H16-03 |
| KQG2H12-00 |
KQG2H12-16 |
KQG2H06-02S |
KQG2H10-02S |
KQG2H10-04S |
KQG2H06-03 |
KQG2H10-03 |
KQG2H16-04 |
| KQG2H16-00 |
KQG2H04-M5 |
KQG2H06-03S |
KQG2H10-03S |
KQG2H12-02S |
KQG2H08-01 |
KQG2H10-04 |
|
Applications:
Food & Pharmaceutical Industry: Complies with Japanese Food Hygiene Law requirements, suitable for food and pharmaceutical equipment.
Semiconductor & Electronics Industry: Ideal for gas and liquid transfer in high-purity environments.
Chemical Processing: Corrosion-resistant characteristics suitable for chemical transfer systems.
High-Temperature Steam Environments: Applicable for equipment requiring steam cleaning or sterilization.
