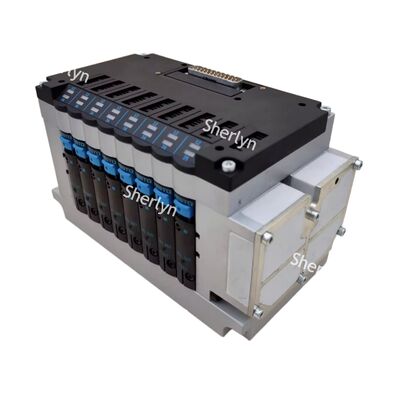

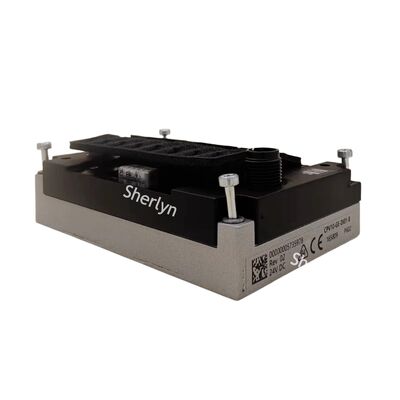

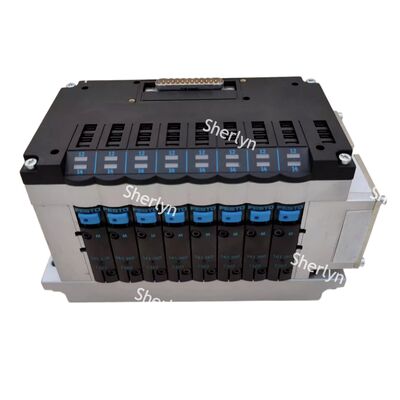

FESTO CPV10-GE-MP-8 Valve Terminal High Reliability Modular Pneumatic Valve Island For Industrial Equipment

Product Description:

One of the most remarkable characteristics of this series is its exceptional compactness. Each valve plate has a width of only 10 millimeters. Despite such a small installation footprint, it integrates the functions of two valves—either dual electric control or a two-position five-way valve—resulting in an extremely high power density.

This compact integration enables direct installation near actuators or equipment modules, greatly saving space within control cabinets and enhancing overall system efficiency.

The CPV10 series features a modular splicing design, allowing multiple valve plates to be connected in a flexible manner. Typically, 2 to 8 valve plates can be combined based on actual requirements and controlled centrally via bus nodes.

This modularity simplifies configuration and expansion. Should additional functionality be needed in the future, simply adding more valve plates is sufficient to meet evolving demands.

Despite its compact size, the CPV10 series delivers impressive fluid performance with a standard flow rate of up to 400 liters per minute, capable of driving most standard cylinders efficiently.

Installing the valve plates close to the actuator shortens the length of the airflow path, which reduces pressure losses and significantly enhances the response speed of the cylinder.

The series offers a variety of electrical interface options to accommodate diverse on-site requirements, including:

• Multi-pin Interface: Utilizes a multi-core cable to simplify wiring connections.
• Fieldbus Interface: Supports mainstream industrial fieldbus protocols such as PROFIBUS-DP, DeviceNet, CANopen, EtherCAT, and more, facilitating seamless integration into automation networks.
• AS-i Interface: Ideal for simple distributed I/O control applications.

The valve island offers a protection rating of IP65, effectively guarding against dust intrusion and water ingress from all directions. This ensures reliable operation even in harsh industrial environments.

Furthermore, certain models have obtained ATEX explosion-proof certification, making them suitable for use in hazardous areas susceptible to explosion risks, such as chemical and pharmaceutical plants.

Each valve plate is equipped with an LED status indicator that visually displays operational states including on/off status and fault conditions.

Additionally, most models come with manual control devices, or manual triggers, that allow for hands-on operation during system debugging, maintenance, or power outages, greatly simplifying these processes.

Applications:

The CPV10 valve island is known for its compact design, flexibility, and high reliability. These features make it an ideal choice for automation applications that demand both efficient use of space and high performance.

In general industrial automation, the CPV10 is widely applied. It is particularly suitable for packaging machines, assembly lines, material handling and transportation systems, as well as sorting equipment, providing seamless and effective pneumatic control.

Industries that require strict cleanliness standards also benefit from the CPV10 valve island. It is commonly implemented in sectors such as electronic assembly, semiconductor manufacturing, medical device production, and pharmaceutical packaging, where a high volume of reliable pneumatic components is essential.

For special environmental conditions, explosion-proof variants of the CPV10 are available. These models are designed to operate safely in chemical and biological industries where flammable or explosive gases and dust are present, ensuring secure and reliable function under hazardous circumstances.
