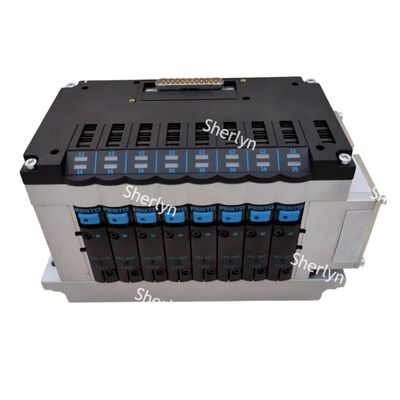

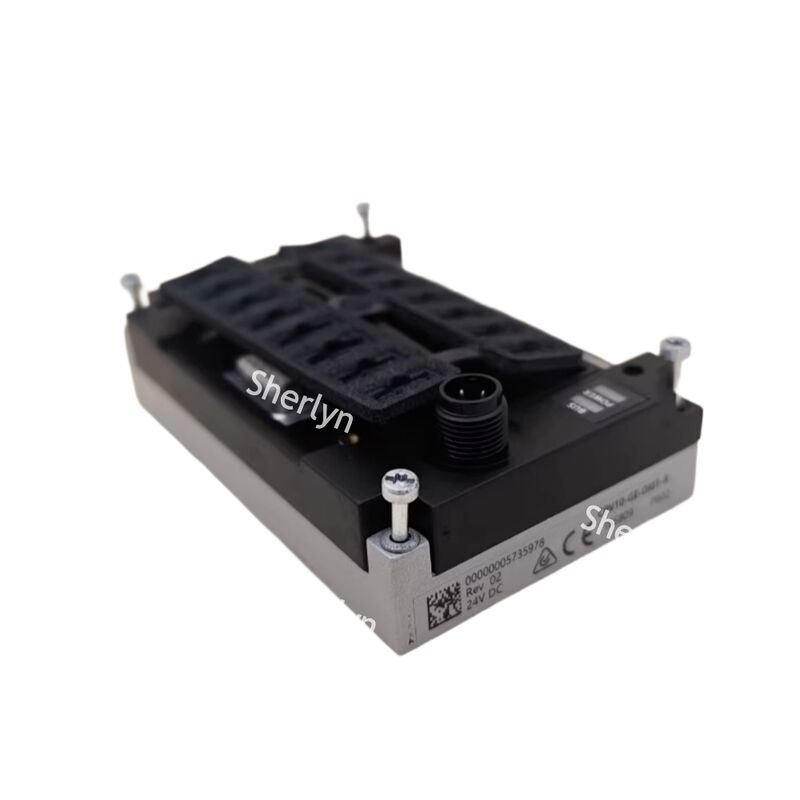

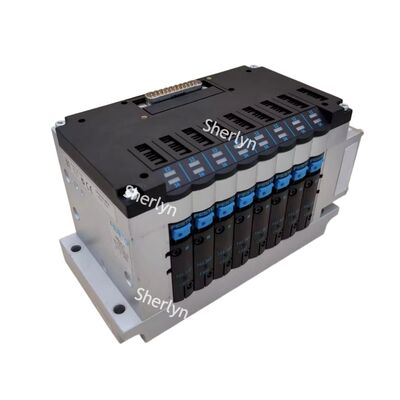

FESTO CPV10 Series Valve Terminal Modular Pneumatic Control Valve Island CPV10-GE-MP-6

Product Description:

A standout characteristic of this series is its remarkable compactness. Each valve plate measures only 10 millimeters in width. Within such a minimal installation space, it integrates the functionality of two valves — either dual electric control or a two-position five-way valve — achieving an impressive power density. This design enables direct installation near actuators or equipment modules, significantly reducing the space required for control cabinets.

The CPV10 utilizes a modular splicing architecture, allowing multiple valve plates to be flexibly connected. Typically, between two and eight valve plates can be combined based on actual requirements and managed uniformly through bus nodes. This modular approach facilitates effortless configuration and expansion. In the future, additional functionality can simply be added by attaching more valve plates.

Although compact in size, this valve series delivers impressive flow performance with a standard flow rate reaching up to 400 liters per minute, suitable for driving most standard cylinders. Its capability to be installed close to actuators significantly shortens the air path, minimizing pressure loss and enhancing the response speed of the cylinders.

To accommodate a variety of on-site requirements, this series offers multiple electrical interfaces:

• Multi-pin Interface: Utilizes multi-core cables to simplify wiring connections.
• Fieldbus Interface: Supports leading industrial fieldbus protocols such as PROFIBUS-DP, DeviceNet, CANopen, EtherCAT, and others, making integration into automation networks straightforward.
• AS-i Interface: Ideal for simple, distributed I/O control systems.

The valve island boasts an IP65 protection rating, ensuring effective resistance against dust ingress and water jets from all directions, thereby guaranteeing stable operation within demanding industrial environments. Furthermore, certain models have obtained ATEX explosion-proof certification, allowing safe deployment in hazardous areas with potential explosion risks, such as in chemical and pharmaceutical industries.

Each valve plate is fitted with an LED status indicator that visually displays operational states including activation, faults, and other relevant conditions. Additionally, most models feature manual control devices (manual triggers) to facilitate manual operation during debugging, maintenance, or power outages, thereby simplifying the entire maintenance process.

Applications:

The CPV10 valve island is known for its compact design, flexibility, and high reliability, making it a popular choice in automation environments where space efficiency and performance are crucial.

In general industrial automation, the CPV10 is well-suited for various applications including packaging machinery, assembly lines, material handling and transportation systems, as well as sorting equipment. Its reliable operation helps streamline processes and improve productivity across these sectors.

For industries that demand cleanliness and precision, the CPV10 valve island is widely implemented in fields such as electronic assembly, semiconductor manufacturing, medical device production, and pharmaceutical packaging. These sectors rely heavily on pneumatic control components that offer both high volume capacity and dependable performance.

Additionally, the CPV10 valve island is available in explosion-proof versions designed to operate safely in specialized environments. These models are particularly suitable for chemical and biological industries where the presence of flammable or explosive gases and dust requires stringent safety measures.

Support and Services:

Festo provides comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our support includes detailed product documentation, installation guides, troubleshooting tips, and maintenance instructions to help you get the most out of your solenoid valves.

We offer expert engineering assistance to help you select the right solenoid valve for your application, considering factors such as pressure, flow rate, voltage, and environmental conditions. Our team is available to provide customized solutions and advice tailored to your specific requirements.

In addition to technical support, Festo supplies a range of services including repair and maintenance, calibration, and product upgrades. Regular maintenance services are designed to prolong the life of your solenoid valves and prevent unexpected downtime.

Training sessions and workshops are also available to help your personnel understand the operation, installation, and maintenance of Festo solenoid valves, ensuring safe and efficient use in your operations.

For any technical inquiries, troubleshooting assistance, or service requests related to Festo solenoid valves, our dedicated support team is ready to assist you with prompt and professional service.

Packing and Shipping:

Each Festo solenoid valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in anti-static and moisture-resistant materials to prevent damage from environmental factors. It is then placed in a sturdy, custom-designed cardboard box that securely holds the product in place to avoid movement and potential impact.

The packaging includes clear labeling with product details, handling instructions, and barcodes for easy identification and inventory management. For bulk orders, multiple units are packed in larger cartons with appropriate cushioning materials to maintain product integrity.

Shipping is carried out through reliable carriers with tracking options to guarantee timely and safe delivery. All shipments comply with international shipping regulations and standards, ensuring the Festo solenoid valves arrive in perfect working condition, ready for immediate use.
