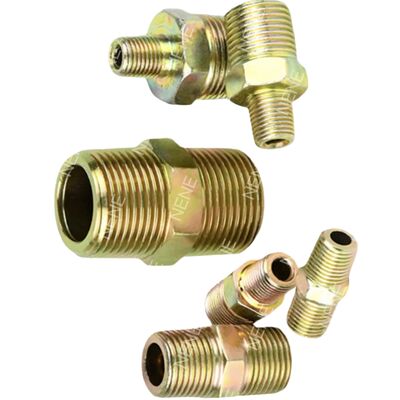

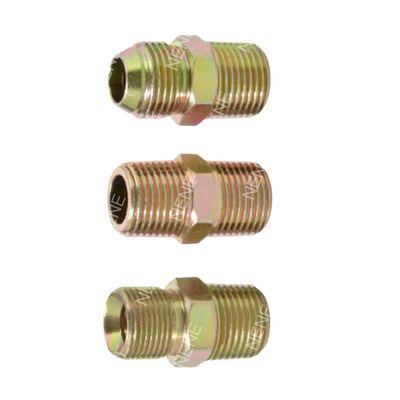

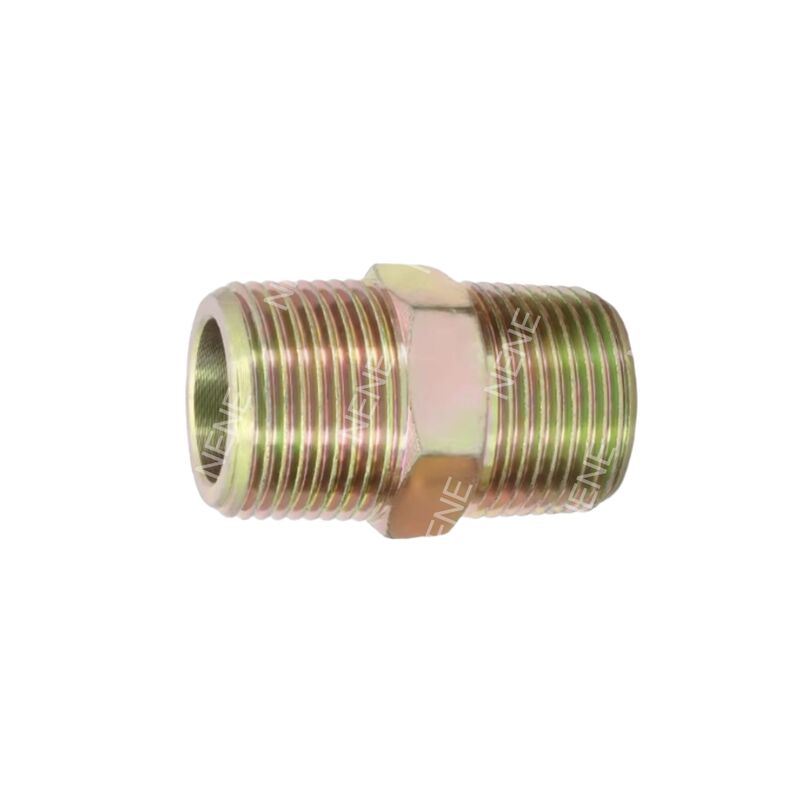

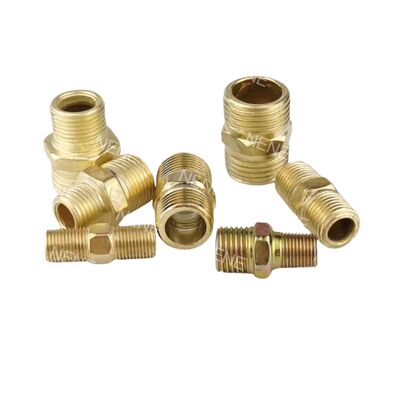

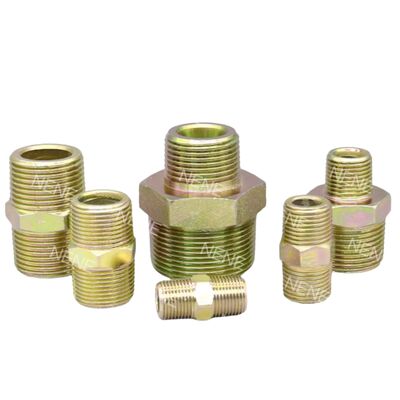

Flat Mouth Union Joint 1/8" to 3/8" Reducing Pipe Connection Joint with Different Sizes on Both Ends

Product Description:

This product is a hydraulic union high-pressure transition joint, crafted from premium carbon steel as its base material. It undergoes a specialized galvanizing treatment process that significantly enhances its resistance to corrosion and rust, thereby extending the overall service life of the product.

Designed as a Type A BSP pipe joint, this component features an external thread configuration along with a reducing structure. This design allows it to precisely connect BSP oil pipes of different specifications, effectively meeting the medium transmission requirements within high-pressure hydraulic systems.

Manufactured according to stringent industrial general standards, the joint boasts a compact structure, robust sealing capabilities, and simple installation procedures. It effectively prevents medium leakage under high-pressure conditions, making it adaptable to a wide range of industrial environments.

As a crucial accessory in hydraulic pipeline connections, this product ensures a reliable and stable operation of hydraulic systems across various applications, providing users with confidence and durability in their hydraulic setups.

Features:

High Pressure and Durability: Constructed from carbon steel, this material boasts exceptional strength and resistance to high pressure. It is capable of withstanding demanding working conditions without deformation or damage. This makes it suitable for various medium to high-pressure hydraulic systems, meeting the stringent requirements of industrial applications.

Corrosion and Wear Resistance: The galvanized surface layer effectively blocks corrosive elements such as air and moisture. This protection prevents rust and aging of the joint, while simultaneously enhancing surface wear resistance. As a result, the product enjoys a longer service life.

Precise Compatibility: Featuring a Type A BSP standard design with highly accurate external threads, this joint can flexibly connect to BSP oil pipes of different specifications. The design ensures a tight, secure connection with strong adaptability, eliminating the need for additional adapters or accessories.

Excellent Sealing Performance: The joint is precision machined to guarantee superior sealing once connected. This effectively prevents leaks of hydraulic oil and other fluids, ensuring the hydraulic system operates smoothly and reliably, while minimizing potential failures.

Ease of Installation: Designed with an external thread union, the joint can be installed without the need for complex tools. Connections can be completed either manually or with simple tools, saving time and effort and enhancing the efficiency of pipeline assembly.

Wide Versatility: Compliant with general industrial hydraulic joint standards, this product is suitable for hydraulic pipelines across diverse industrial sectors. Its broad compatibility with various hydraulic equipment highlights its practical utility and value.

Technical Parameters:

Applications:

This hydraulic union high-pressure transition joint, made of galvanized carbon steel and featuring an external thread with a Type A BSP reducing union design, is primarily utilized for connecting pipelines in various high-pressure hydraulic systems. It is specifically designed to accommodate the reducing connection requirements of BSP oil pipes, ensuring a secure and efficient link.

The applications of this transition joint span multiple industries. In the field of construction machinery, it serves as a reliable connection component for pipelines in equipment such as excavators, loaders, cranes, and road rollers. It effectively supports the oil transmission needs of high-pressure hydraulic systems in these heavy machines.

For industrial equipment, this joint facilitates pipeline connections in a variety of production machines including machine tools, hydraulic presses, injection molding machines, and compressors. By enabling reducing connections between oil pipes of different specifications, it contributes to the smooth and stable operation of industrial equipment.

In the mining sector, the joint is ideal for hydraulic systems used in mining and conveying machinery. It is engineered to withstand high pressure and challenging working environments, preventing leaks of hydraulic medium and ensuring durability under harsh conditions.

Agricultural machinery also benefits from this component, which is used in the hydraulic pipelines of large tractors, combine harvesters, and other farming equipment. Its resistance to rust and corrosion makes it suitable for the demanding outdoor environments encountered in agricultural applications.

Additionally, the joint plays a key role in hydraulic system engineering projects by enabling reducing connections of BSP oil pipes in various industrial hydraulic systems and pipeline renovation efforts. This enhances the stability and sealing performance of pipeline connections.

Beyond these sectors, this hydraulic union is also utilized in high-pressure hydraulic equipment pipelines within the metallurgy, chemical, and shipping industries. It effectively meets the transmission requirements of hydraulic media across a broad range of operational scenarios.

Support and Services:

Our Pneumatic Pipe Fittings are designed to provide reliable and efficient connections in various pneumatic systems. To ensure optimal performance and longevity, please follow the installation and maintenance guidelines provided in the product manual.

For installation, verify that all components are clean and free from debris. Use compatible tubing and ensure that fittings are properly seated and tightened to prevent leaks. Avoid over-tightening, which may damage the fittings or the connected tubing.

Routine inspection is recommended to check for signs of wear, corrosion, or leaks. Replace any damaged or worn fittings immediately to maintain system integrity and safety.

Our product support team is available to assist with technical inquiries, troubleshooting, and guidance on product selection to meet your specific application requirements. We also offer replacement parts and accessories to support your maintenance needs.

For detailed technical specifications, installation instructions, and troubleshooting tips, please refer to the product documentation provided with your purchase or visit our website.

Packing and Shipping:

Our Pneumatic Pipe Fittings are carefully packaged to ensure maximum protection during transit. Each fitting is individually wrapped in protective material to prevent scratches and damage. They are then securely placed in sturdy boxes with cushioning to absorb shocks and vibrations.

For bulk orders, fittings are organized in labeled compartments within strong cartons, facilitating easy identification and handling. All packages are sealed tightly and clearly marked with handling instructions and product details.

We use reliable shipping partners to guarantee timely delivery. Tracking information is provided for all shipments to keep you informed of your order status. Whether shipped domestically or internationally, our packaging standards ensure your Pneumatic Pipe Fittings arrive safely and in excellent condition.
