Product Description:

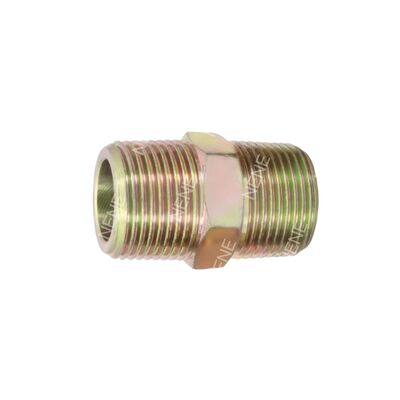

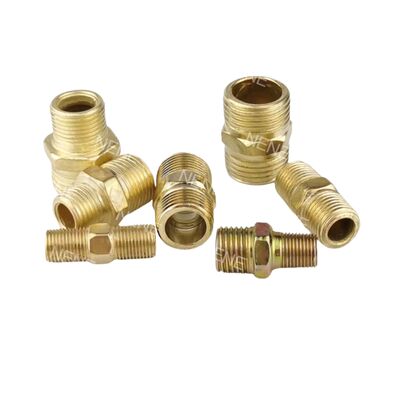

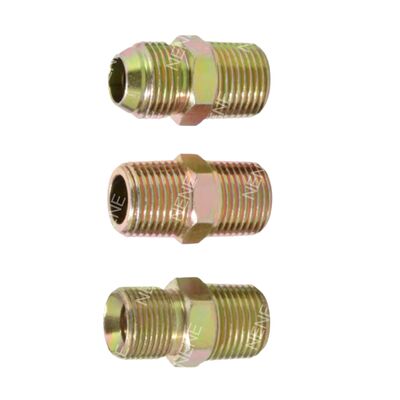

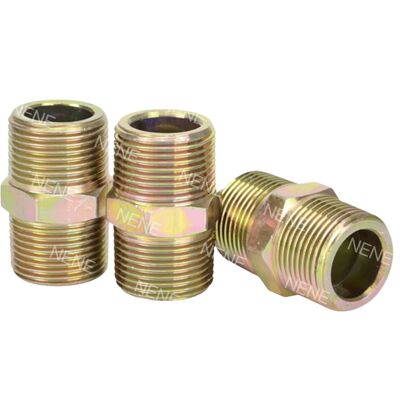

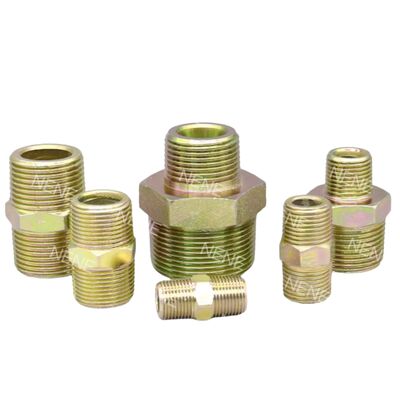

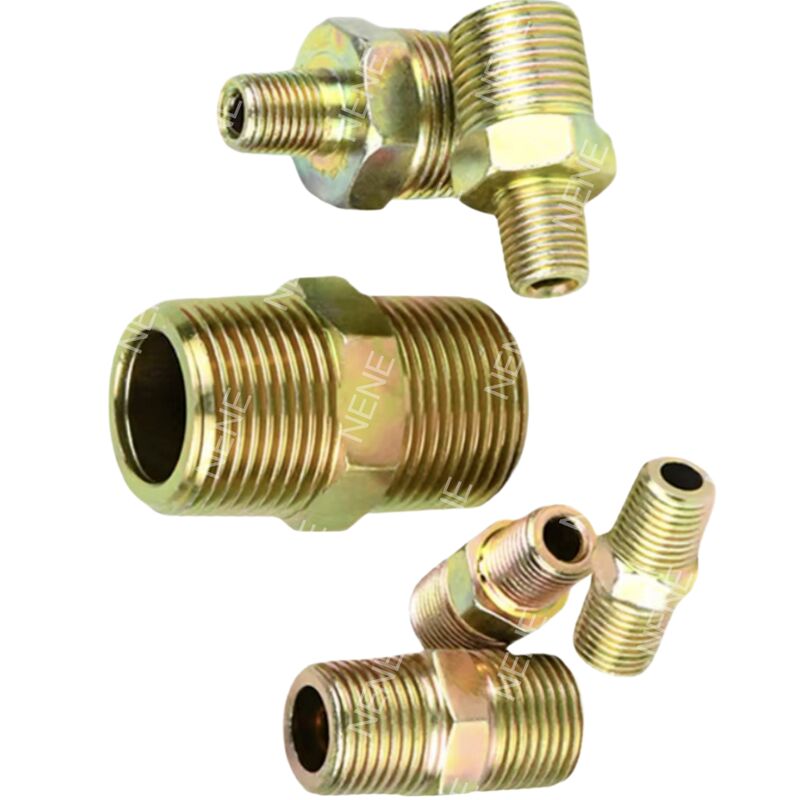

This product is a hydraulic union high-pressure transition joint, crafted from high-quality carbon steel as its base material. It undergoes a professional galvanizing process that significantly enhances its resistance to corrosion and rust, thereby extending the overall service life of the product.
Designed as a Type A BSP pipe joint, it features an external thread with a reducing structure. This design allows for the precise connection of BSP oil pipes with different specifications, effectively meeting the medium transmission requirements in high-pressure hydraulic systems.
Manufactured in strict compliance with general industrial standards, the joint boasts a compact structure, robust sealing capabilities, and easy installation. It effectively prevents medium leakage even under high-pressure operating conditions, ensuring reliable performance.
Suitable for various industrial applications, this product provides a dependable connection solution that supports the stable operation of hydraulic systems. As a core accessory in hydraulic pipeline connections, it plays an essential role in maintaining system integrity.
Features:
High Pressure and Durable: Made from carbon steel, this material boasts exceptional strength and resistance to high pressure. It is capable of withstanding demanding high-pressure operating environments without deforming or sustaining damage. This makes it suitable for a wide range of medium to high-pressure hydraulic systems, effectively meeting rigorous industrial application requirements.
Corrosion and Wear Resistant: The galvanized coating provides a protective barrier that effectively shields the joint from corrosive elements such as air and moisture. This protective layer helps prevent rust and aging, while also enhancing surface wear resistance, ultimately extending the overall lifespan of the product.
Precise Adaptation: Featuring a Type A BSP standard design with highly accurate external threads, this component ensures compatibility with various BSP oil pipes of differing specifications. The reducing structure allows for flexible connections with a secure and tight fit, eliminating the need for additional adapters or accessories.
Excellent Sealing Performance: The joint is manufactured with precision machining techniques, resulting in superior sealing capabilities once connected. This effectively prevents leaks of hydraulic oil and other fluids, thereby maintaining stable hydraulic system operations and minimizing the risk of potential malfunctions.
Easy Installation: Designed with an external thread union, this joint simplifies installation by eliminating the necessity for complex tools. Connections can be fastened manually or with basic tools, which saves time and effort while enhancing the efficiency of pipeline assembly.
Strong Versatility: Conforming to universal industrial hydraulic joint standards, this product is compatible with hydraulic pipelines across various industrial sectors. Its wide applicability with diverse hydraulic equipment underscores its practicality and utility in multiple operational contexts.
Technical Parameters:
| Nominal Pressure |
≥30MPa |
| Operating Temperature |
-20℃~120℃ |
| Material Specification |
Galvanized Carbon Steel |
| Suitable Medium |
Hydraulic Oil, Lubricating Oil, Diesel Oil, Etc |
| Thread Standard |
BSP (BSPP/BSPT) |
| Accuracy Grade |
Thread Accuracy 6H |
Applications:
This hydraulic union high-pressure transition joint, made of carbon steel with a galvanized finish and featuring an external thread, is a Type A BSP reducing union designed primarily for connecting pipelines in a variety of high-pressure hydraulic systems. It is specifically engineered to accommodate the reducing connection needs of BSP oil pipes, ensuring reliable and efficient operation.
The applications for this component span across multiple industries. In the realm of construction machinery, it is used to connect pipelines in equipment such as excavators, loaders, cranes, and road rollers. It effectively supports the transmission of oil in high-pressure hydraulic systems, enhancing the overall performance and durability of these machines.
Industrial equipment also benefits significantly from this transition joint. It is suitable for use in connecting pipelines of various production machines, including machine tools, hydraulic presses, injection molding machines, and compressors. The union ensures seamless reducing connections between different specifications of oil pipes, contributing to the normal and safe functioning of industrial machinery.
In mining machinery applications, this hydraulic union is indispensable for connecting hydraulic systems of mining and conveying equipment. It is designed to withstand high pressure and endure harsh working conditions, while effectively preventing medium leakage. This makes it a reliable choice for demanding mining environments.
The joint is also widely used in agricultural machinery. It serves as a vital hydraulic pipeline accessory for large tractors, combine harvesters, and other agricultural equipment. Its resistance to rust and corrosion allows it to perform well in complex outdoor environments, ensuring longevity and stable hydraulic operation.
Furthermore, this transition joint plays a crucial role in hydraulic system engineering. It is commonly employed in projects involving the reducing connection of BSP oil pipes across various industrial hydraulic systems and pipeline renovations. By improving the stability and sealing of pipeline connections, it helps maintain system integrity and efficiency.
Beyond these fields, the hydraulic union is also applicable in several other industries, including metallurgy, chemical processing, and shipping. It meets the demands for hydraulic medium transmission in diverse high-pressure scenarios, making it a versatile and essential component in any hydraulic system.
Support and Services:
Our Pneumatic Pipe Fittings are designed to provide reliable and efficient connections for various pneumatic systems. To ensure optimal performance, it is important to follow proper installation and maintenance procedures.
When installing pneumatic pipe fittings, ensure that all components are clean and free from debris. Use compatible tubing and apply appropriate tightening torque to avoid leaks or damage. Avoid over-tightening, which can cause thread damage or deformation of the fittings.
Regular inspections should be conducted to check for signs of wear, leaks, or corrosion. Replace any damaged or worn fittings immediately to maintain system integrity and safety.
For troubleshooting common issues such as air leaks or pressure drops, verify the fitting connections, check for proper alignment, and inspect the tubing for cracks or blockages. Using the correct fitting type and size for your application is crucial to prevent operational problems.
Our technical support team is available to assist with product selection, installation guidance, and maintenance tips to ensure your pneumatic systems operate smoothly and efficiently.
Packing and Shipping:
Our Pneumatic Pipe Fittings are carefully packaged to ensure maximum protection during transit. Each fitting is individually wrapped with protective materials to prevent scratches and damage. They are then securely placed in sturdy, custom-designed boxes that provide cushioning and support.
For bulk orders, fittings are organized in labeled compartments within larger cartons to facilitate easy identification and handling. All packages are sealed tightly and clearly marked with handling instructions to ensure safe delivery.
We offer reliable shipping options worldwide, utilizing trusted carriers to guarantee timely and secure delivery. Tracking information is provided for all shipments, allowing customers to monitor their orders from dispatch to arrival.
Our commitment to quality packaging and shipping ensures that your Pneumatic Pipe Fittings arrive in perfect condition, ready for immediate use.
