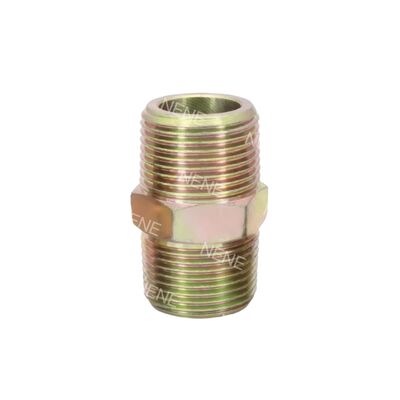

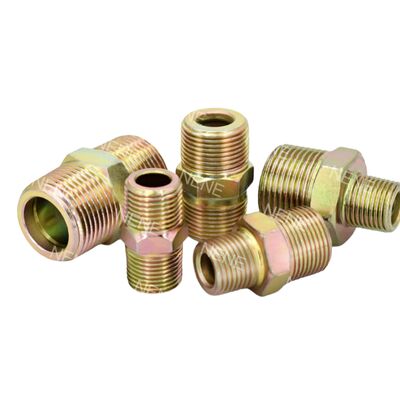

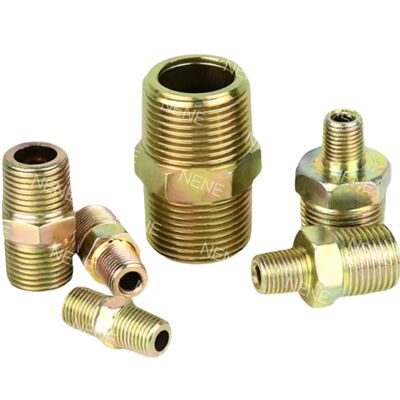

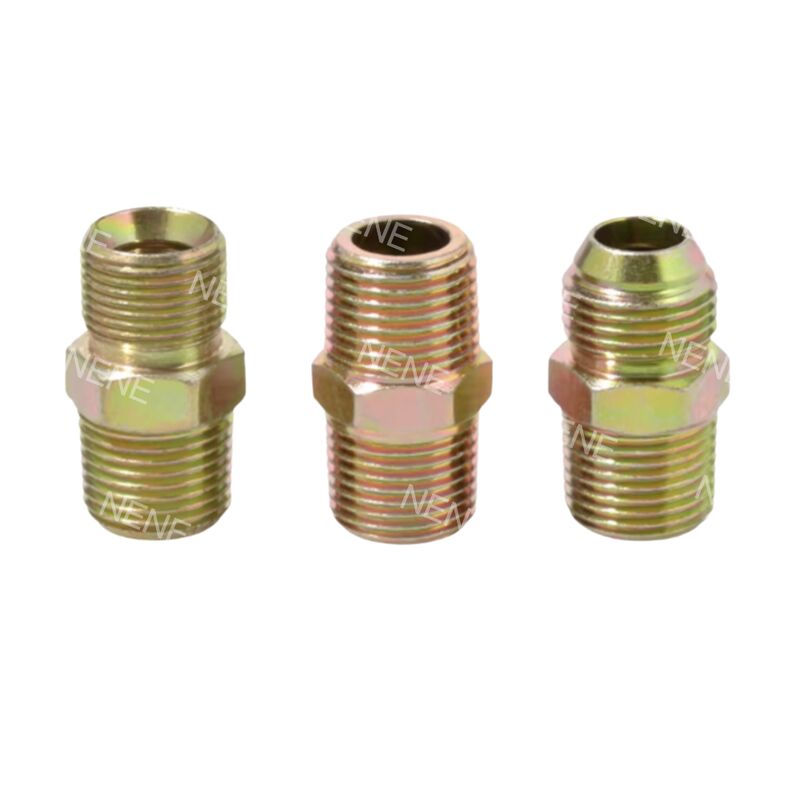

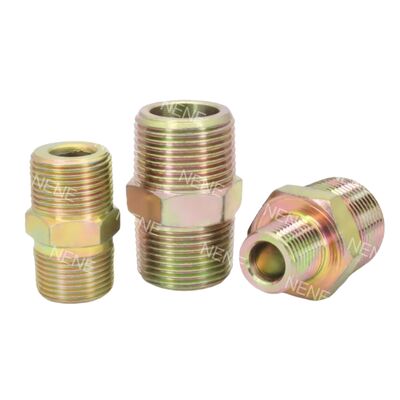

3/4 Inch BSP Thread Standard Flat Mouth Pneumatic Pipe Fittings Galvanized Carbon Steel

Product Description:

This product is a hydraulic union high-pressure transition joint, crafted from high-quality carbon steel as its base material. It undergoes a professional galvanizing treatment, which significantly enhances its corrosion resistance and ability to prevent rust, thereby extending the overall service life of the product.

The joint features a Type A BSP pipe connection with an external thread design and a reducing structure. This configuration allows for precise connections between BSP oil pipes of varying specifications, making it suitable for medium transmission requirements in high-pressure hydraulic systems.

Manufactured in strict accordance with general industrial standards, the product boasts a compact structure, strong sealing performance, and ease of installation. It effectively prevents medium leakage during high-pressure operations, adapts well to various industrial environments, and offers a reliable connection to ensure the stable functioning of hydraulic systems. As such, it is an essential core component in hydraulic pipeline connections.

Features:

The carbon steel construction offers exceptional strength and pressure resistance, making it capable of withstanding high-pressure operating environments. This durable material resists deformation and damage, making it suitable for a wide range of medium to high-pressure hydraulic systems and meeting the demanding requirements of industrial applications.

Its galvanized surface provides robust protection against corrosive elements such as air and moisture. This coating effectively prevents rust and aging of the joint, while also enhancing surface wear resistance, thereby prolonging the overall service life of the product.

Designed according to the Type A BSP standard, the product features highly accurate external threading. This precision allows for flexible connection with different BSP oil pipe specifications without the need for additional adapters. The tight and secure fit ensures strong adaptability across various applications.

The joint undergoes precision machining to achieve outstanding sealing capabilities. Once connected, it effectively stops any leakage of hydraulic oil or other media, ensuring stable system operation and reducing the risk of potential faults or failures.

The external thread union design simplifies installation significantly. Complex tools are not required; connections and fastening can be completed manually or with basic tools. This ease of installation saves time and effort, enhancing overall pipeline assembly efficiency.

Complying with general industrial hydraulic joint standards, this product boasts wide versatility. It is well-suited for hydraulic pipelines across diverse industrial sectors and can be used extensively with various hydraulic equipment, making it highly practical and adaptable.

Technical Parameters:

Applications:

This hydraulic union high-pressure transition joint, made of galvanized carbon steel with external threading, is designed as a Type A BSP reducing union. It primarily serves the purpose of connecting pipelines within various high-pressure hydraulic systems. Its design makes it suitable for scenarios requiring the reduction connection of BSP oil pipes.

The product finds applications across a broad range of industries. In construction machinery, it facilitates pipeline connections for equipment such as excavators, loaders, cranes, and road rollers, supporting the oil transmission processes in high-pressure hydraulic systems.

Within industrial equipment, this transition joint connects pipelines for devices including machine tools, hydraulic presses, injection molding machines, and compressors. It enables the reduction connection between oil pipes of differing specifications, ensuring the smooth and reliable operation of the equipment.

In the mining sector, it is used for pipeline connections in hydraulic and conveying machinery. The union is capable of withstanding high pressure and harsh working conditions, effectively preventing medium leakage and maintaining system integrity.

Agricultural machinery also benefits from this component, where it is utilized in hydraulic pipeline systems of large tractors, combine harvesters, and other equipment. Its resistance to rust and corrosion makes it suitable for complex outdoor environments.

Additionally, this hydraulic union plays an important role in hydraulic system engineering. It is employed for reducing connections of BSP oil pipes in diverse industrial hydraulic systems and during hydraulic pipeline renovation projects, contributing to improved stability and sealing of pipeline connections.

Beyond these applications, the union is also suited for use in other fields such as metallurgy, chemical industries, and shipping. It meets the transmission requirements for hydraulic media across different operational scenarios, making it a versatile component for high-pressure hydraulic equipment connections.

Support and Services:

Our Pneumatic Pipe Fittings are designed to provide reliable and efficient connections in pneumatic systems. For technical support, please ensure that you have the product model number and specifications ready to facilitate a quick and accurate response.

We offer comprehensive services including installation guidance, troubleshooting assistance, and maintenance tips to ensure optimal performance of your pneumatic fittings. Our technical support team is trained to help with compatibility questions, pressure ratings, and system integration challenges.

For best results, always use fittings that meet the required standards and specifications of your pneumatic system. Regular inspection and proper handling can extend the lifespan of your fittings and prevent system failures.

We also provide detailed product manuals and technical datasheets to assist you in understanding the features and correct usage of our pneumatic pipe fittings. If replacement parts are needed, our support team can guide you through the ordering process.

Our commitment is to ensure that your pneumatic systems operate smoothly and efficiently with our quality fittings and dedicated technical support services.

Packing and Shipping:

Our Pneumatic Pipe Fittings are carefully packaged to ensure maximum protection during transit. Each fitting is individually wrapped in protective material to prevent scratches and damage. They are then securely placed in sturdy, labeled boxes to maintain product integrity and facilitate easy identification.

For shipping, we use reliable and trusted carriers to guarantee timely delivery. Our packaging is designed to withstand handling and environmental conditions during transportation, ensuring that the Pneumatic Pipe Fittings arrive at your location in perfect condition. We also offer customized packaging options upon request to meet specific customer requirements.
