Product Description:

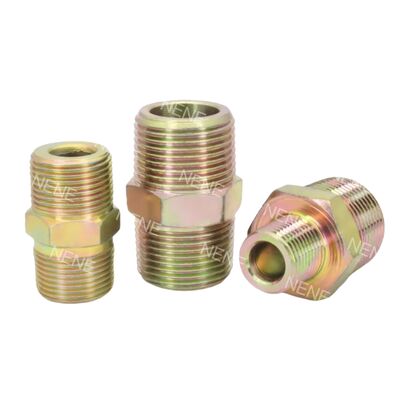

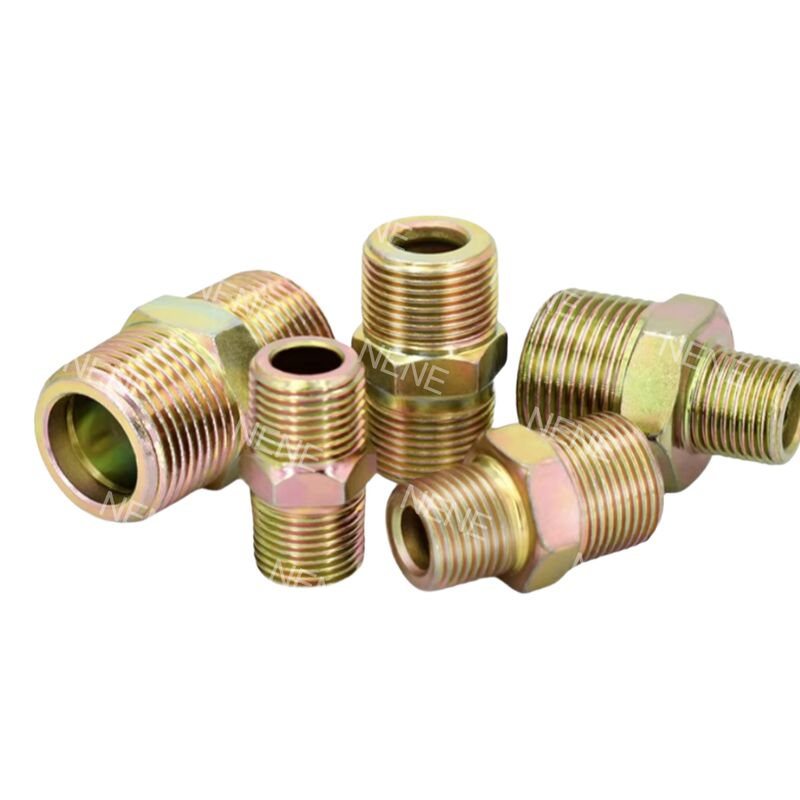

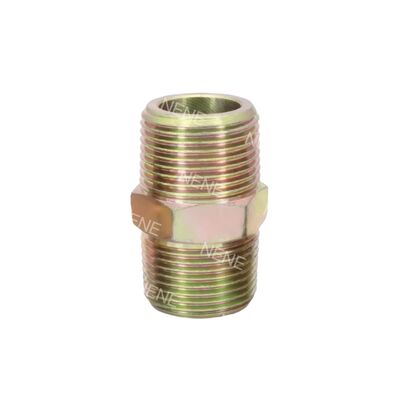

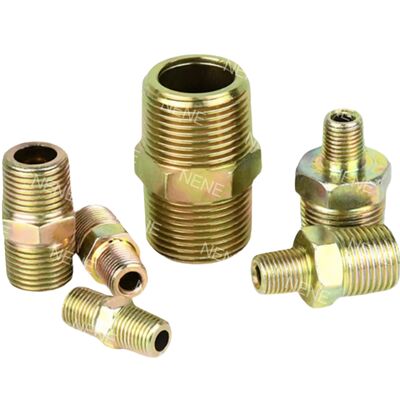

This product is a hydraulic union high-pressure transition joint crafted from premium carbon steel. The base material undergoes a professional galvanizing process, which significantly enhances its resistance to corrosion and rust. This treatment effectively extends the overall service life of the component, making it durable and reliable for long-term use.
Designed as a Type A BSP pipe joint, the device features an external thread with a reducing structure. This design allows for precise connections between different specifications of BSP oil pipes, ensuring compatibility and meeting the transmission requirements of high-pressure hydraulic systems.
Manufactured in strict compliance with industry general standards, the product boasts a compact structure combined with strong sealing performance. It offers easy installation while effectively preventing medium leakage under high-pressure operating conditions.
Adaptable to various industrial environments, this transition joint provides a dependable connection solution that supports the stable operation of hydraulic systems. As an essential core accessory, it plays a critical role in hydraulic pipeline connections.
Features:
High Pressure and Durable: Made from carbon steel material, this product offers exceptional strength and pressure resistance. It is capable of withstanding high-pressure working conditions without easily deforming or sustaining damage. This durability makes it suitable for various medium and high-pressure hydraulic systems, meeting the demanding requirements of industrial applications.
Corrosion and Wear Resistant: The galvanized surface treatment effectively isolates corrosive elements such as air and moisture. This prevents rust and aging of the joint, while also enhancing surface wear resistance. As a result, the product enjoys an extended service life even in harsh environments.
Precise Adaptation: Featuring a Type A BSP standard design with highly accurate external threading, this joint enables flexible connections between different specifications of BSP oil pipes. Its tight fit and strong adaptability eliminate the need for additional adaptation accessories, simplifying system assembly.
Excellent Sealing Performance: The joint structure is precision machined to ensure outstanding sealing once connected. This effectively prevents leakage of hydraulic oil and other media, guaranteeing stable operation of hydraulic systems and minimizing the risk of faults.
Easy Installation: The external thread union design allows for straightforward installation without the necessity of complex tools. Connections and securing can be accomplished manually or with simple tools, saving installation time and effort while enhancing pipeline assembly efficiency.
Strong Versatility: Compliant with general industrial hydraulic joint standards, this product is suitable for hydraulic pipelines across multiple industrial sectors. It can be widely applied with various hydraulic equipment, demonstrating strong practical utility.
Technical Parameters:
| Operating Temperature |
-20℃~120℃ |
| Material Specification |
Galvanized Carbon Steel |
| Nominal Pressure |
≥30MPa |
| Suitable Medium |
Hydraulic Oil, Lubricating Oil, Diesel Oil, Etc |
| Thread Standard |
BSP (BSPP/BSPT) |
| Accuracy Grade |
Thread Accuracy 6H |
Applications:
The hydraulic union high-pressure transition joint, crafted from carbon steel with a galvanized finish and featuring an external thread, is a Type A BSP reducing union designed primarily for pipeline connections in various high-pressure hydraulic systems. It is specifically engineered to accommodate the reducing connection requirements of BSP oil pipes, ensuring reliable and efficient performance.
This component finds extensive application across multiple industries. In construction machinery, it facilitates pipeline connections for equipment such as excavators, loaders, cranes, and road rollers. It plays a vital role in the oil transmission within high-pressure hydraulic systems, contributing to the machinery’s overall functionality and durability.
In industrial equipment, this transition joint is utilized for connecting pipelines in machines like machine tools, hydraulic presses, injection molding machines, and compressors. It supports the reducing connection of oil pipes with different specifications, ensuring smooth and normal operation of the equipment.
The mining sector also benefits from this product, where it connects hydraulic systems in mining and conveying machinery. Designed to withstand high pressure and harsh working environments, it effectively prevents medium leakage, enhancing operational safety and reliability.
Agricultural machinery, including large tractors and combine harvesters, also utilizes this hydraulic pipeline accessory. It is built to tolerate complex outdoor environments while being resistant to rust and corrosion, thus extending the lifespan of the machinery’s hydraulic systems.
Additionally, the hydraulic union is widely used in hydraulic system engineering projects. It is ideal for reducing connections of BSP oil pipes in various industrial hydraulic systems and pipeline renovation projects. Its application improves the stability and sealing performance of pipeline connections, which is critical for system integrity.
Beyond these sectors, the transition joint is applicable in other fields such as metallurgy, chemical industry, and shipping. It meets the demands of high-pressure hydraulic equipment by ensuring efficient hydraulic medium transmission across a variety of operational scenarios.
Support and Services:
Our Pneumatic Pipe Fittings are designed to provide reliable and efficient connections for a variety of pneumatic systems. To ensure optimal performance and longevity of the fittings, proper installation and maintenance are essential.
Before installation, please verify that the fittings are compatible with the type and size of pipes being used. Ensure that all components are clean and free from debris to prevent contamination within the pneumatic system.
During installation, use appropriate tools to avoid damaging the fittings. Tighten the fittings according to the recommended torque specifications to achieve a secure and leak-free connection. Avoid over-tightening, which may cause damage or deformation.
Regular inspection of the pneumatic fittings is recommended to detect any signs of wear, corrosion, or leakage. Replace any damaged or worn components promptly to maintain system integrity and safety.
For maintenance, clean the fittings with a dry cloth or a mild cleaning agent suitable for pneumatic components. Avoid using harsh chemicals that could degrade the material of the fittings.
If you encounter any issues with the pneumatic pipe fittings, refer to the product manual for troubleshooting tips. Common issues such as leaks or connection failures are often resolved by checking installation procedures and ensuring proper component compatibility.
Our technical support team is available to provide assistance with product selection, installation guidance, and troubleshooting advice to help you achieve the best results with your pneumatic systems.
Packing and Shipping:
Our Pneumatic Pipe Fittings are carefully packaged to ensure maximum protection during transit. Each fitting is individually wrapped with protective materials to prevent scratches and damage. They are then securely placed in sturdy boxes with adequate cushioning to absorb shocks and vibrations.
For bulk orders, fittings are packed in reinforced cartons or wooden crates depending on the size and destination to guarantee safe delivery. All packages are clearly labeled with product details and handling instructions.
We offer reliable shipping options worldwide, ensuring timely and efficient delivery. Tracking information is provided for every shipment to keep you informed until your Pneumatic Pipe Fittings arrive safely at your doorstep.
