Product Description:

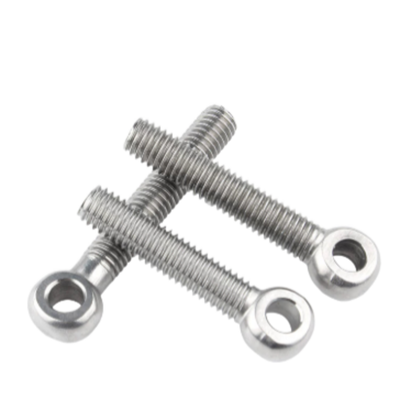

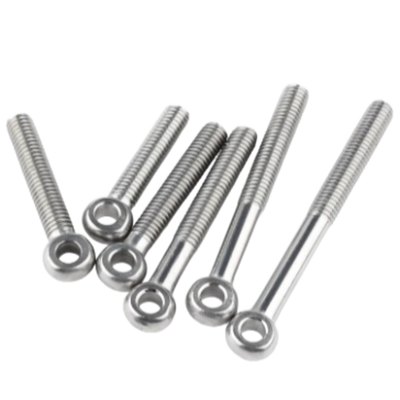

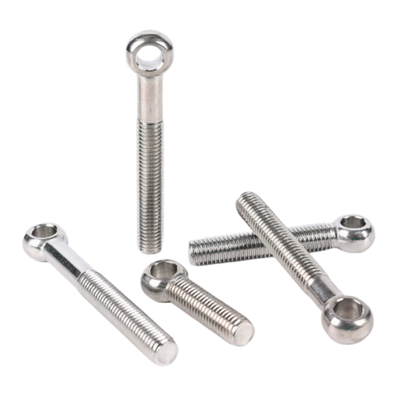

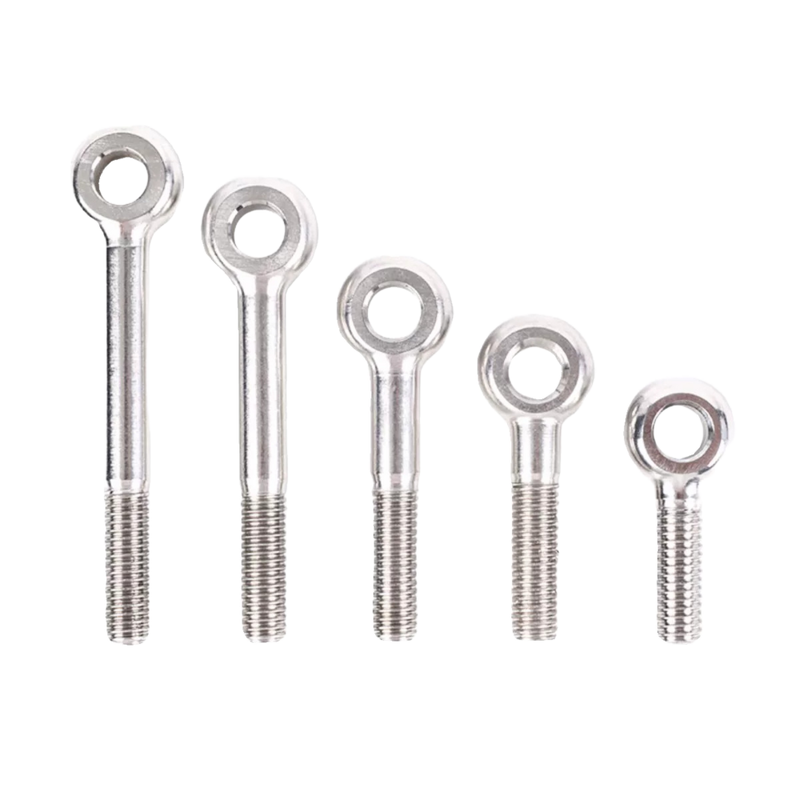

The Eye Bolt, commonly referred to as a Fish Eye Bolt or Live Joint Screw, is a highly versatile fastener designed to provide flexible and secure connections. It is characterized by a precisely machined circular eye located at one end, while the opposite end consists of a shank that is either fully or partially threaded.
Made from robust materials such as 304 Stainless Steel or Carbon Steel (Q235), this bolt ensures excellent resistance to corrosion and enhanced durability. Its reliable performance makes it suitable for use in stringent and demanding environments. The manufacturing of this bolt adheres to stringent standards including GB/T 798-1988, a Chinese National Standard, and DIN 444, a German Industrial Standard, guaranteeing accurate dimensions and thread quality.
Available in an extensive range of sizes, the Eye Bolt accommodates thread diameters from M6 up to M64. This broad size availability allows it to meet the requirements of various projects and applications with ease.
This type of eye bolt is especially suited for situations that demand a pivot point, adjustable angles, or a dependable lifting solution. Its design facilitates quick and easy connection and disconnection, making it an indispensable component in both industrial settings and general-purpose applications.
Features:
Premium Material Options: These components are offered in high-quality 304 Stainless Steel (A2), which ensures excellent resistance to rust and corrosion. Alternatively, Carbon Steel (Q235) variants are available, enhanced with surface treatments such as black oxide coating or hot-dip galvanizing to improve their durability and lifespan.
High Strength: Crafted through forging from strong materials, these parts provide exceptional tensile strength and enduring performance. Various strength grades are offered, including 4.8, 8.8, and 10.9 for carbon steel, as well as A2-70 for stainless steel, catering to diverse application needs.
Precision Engineering: Manufactured in accordance with stringent GB798 and DIN444 standards, these products feature a smooth spherical surface and finely machined, high-precision threads to ensure reliable and accurate fastening.
Versatile Threading Options: Available in both fully threaded and partially threaded designs, these components can meet different fastening requirements, offering flexibility depending on the specific usage scenario.
Flexible Design: The circular eye design facilitates easy connection with pins, chains, or ropes. This allows for flexible rotation and angular adjustments, making the components suitable for various mechanical and structural applications.
Technical Parameters:
| Standard |
GB/T 798-1988, DIN 444 |
| Material |
Stainless Steel 304, Carbon Steel |
| Thread Pitch |
Standard |
| Surface Finish |
Bright, Smooth, With Minimal Burrs |
| Thread Diameter |
M6, M8, M10, M12, M16, M20 Up To M30 |
| Nominal Length |
20mm To 50mm |
Applications:
Industrial Machinery
These components are commonly utilized in industrial machinery to connect parts that require regular angle adjustments or frequent disassembly. Their design facilitates easy modification and maintenance within mechanical equipment.
Valve & Pipeline
In the field of valves and pipelines, these elements find extensive use, particularly in systems operating under low-temperature and high-pressure conditions. They are essential in pressure pipelines and various fluid engineering applications where reliable connections are crucial.
Lifting & Rigging
When paired with suitable slings or hooks, these components act as dependable lifting points necessary for hoisting and rigging operations. Their robustness ensures safety and stability during heavy lifting activities.
Automotive & Transportation
Within the automotive and transportation sectors, they are employed in suspension systems and chassis connections. Additionally, they play a vital role in assembling folding bicycles and children’s bikes, supporting both functionality and ease of assembly.
General Assembly
These components are also ideal for general assembly purposes, including furniture production such as adjustable brackets. They are widely used in outdoor installations, like tent fixings and gym equipment, as well as in the assembly of various hardware tools.
Support and Services:
Our Pneumatic Pipe Fittings are designed to ensure secure and efficient connections in pneumatic systems. For technical support, please refer to the product manual which provides detailed installation instructions, maintenance guidelines, and troubleshooting tips.
If you encounter any issues during installation or operation, verify that all fittings are compatible with your system’s specifications and that they are installed according to recommended torque settings. Regular inspection for wear and tear can prevent leaks and ensure optimal performance.
We offer comprehensive services including product selection guidance, custom solution consultation, and training sessions to help you maximize the efficiency of your pneumatic systems. Replacement parts and accessories are also available to maintain system integrity over time.
For advanced technical inquiries, our support team is equipped to assist with system design optimization, compatibility assessments, and performance enhancements tailored to your specific applications.
Packing and Shipping:
Our Pneumatic Pipe Fittings are carefully packaged to ensure maximum protection during transit. Each fitting is individually wrapped in protective material to prevent scratches and damage. They are then securely placed in sturdy, corrugated cardboard boxes designed to withstand handling and shipping stresses.
For bulk orders, fittings are organized in custom trays or compartments within the boxes to avoid movement and potential impact damage. All packages are clearly labeled with product details and handling instructions to facilitate smooth logistics.
We offer reliable shipping options worldwide, utilizing trusted carriers to guarantee timely delivery. Tracking information is provided for all shipments, allowing customers to monitor their orders from dispatch to arrival.
Special packaging requests and expedited shipping services are available upon request to meet specific customer needs.
