Product Description:

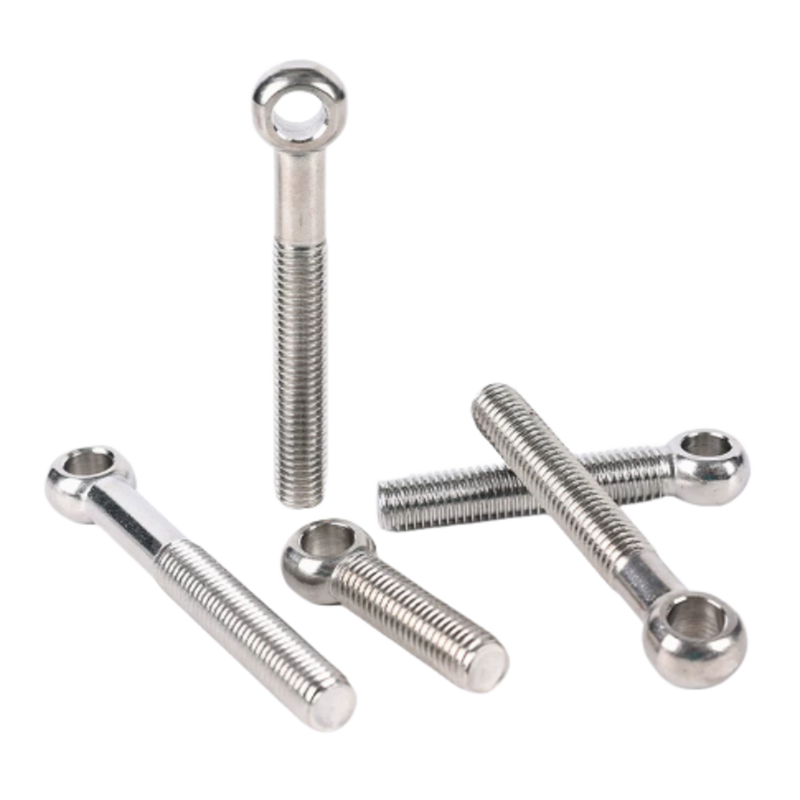

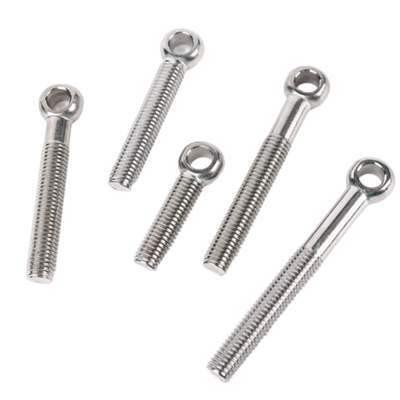

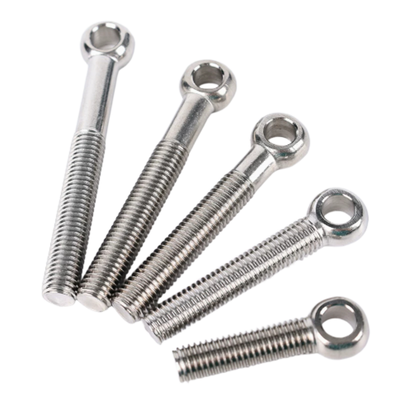

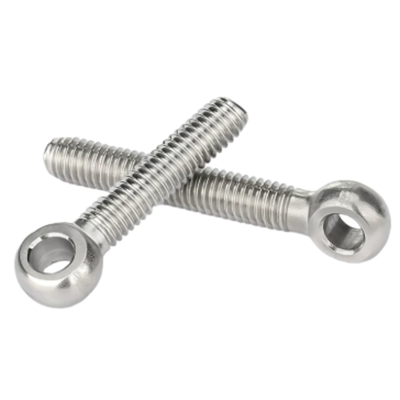

The Eye Bolt, which is sometimes referred to as a Fish Eye Bolt or Live Joint Screw, is a highly adaptable hardware fastener. It is specifically designed to provide flexible yet secure connections. One end of the bolt features a precisely machined circular eye, while the opposite end consists of a shank that can be fully or partially threaded.
Crafted from durable, high-strength materials such as 304 Stainless Steel or Carbon Steel (Q235), this bolt guarantees excellent resistance to corrosion and long-lasting performance, even under demanding conditions. The manufacturing process adheres strictly to established standards, including GB/T 798-1988 (Chinese National Standard) and DIN 444 (German Industrial Standard). This adherence ensures the bolt maintains accurate dimensions and precise threading.
Available in a broad spectrum of sizes, with thread diameters ranging from M6 to M64, the Eye Bolt can accommodate a variety of project requirements. Its design makes it especially suitable for applications that need a reliable pivot point, an adjustable angle, or a secure lifting point. Additionally, its ease of connection and disconnection makes it an indispensable element for both industrial applications and general-purpose use.
Features:
Premium Material Options
Our products are available in high-quality 304 Stainless Steel (A2), which provides excellent resistance to rust and corrosion. Alternatively, you can choose Carbon Steel (Q235), which is treated with surface finishes such as black oxide or hot-dip galvanizing to improve its durability and lifespan.
High Strength
These items are forged from strong materials, ensuring superior tensile strength and long-lasting performance. For carbon steel variants, strength grades include 4.8, 8.8, and 10.9, while stainless steel options are offered in the A2-70 grade.
Precision Engineering
Manufactured adhering to rigorous GB798 and DIN444 standards, these components feature a smooth spherical surface and threads crafted with high precision to guarantee reliable fastening.
Versatile Threading Options
To meet varying fastening needs, the products are available in both fully threaded and partially threaded designs, providing flexibility for different applications.
Versatile Design
The circular eye design enables easy connection with pins, chains, or ropes, allowing for flexible rotation and angular adjustment to suit diverse usage scenarios.
Technical Parameters:
| Nominal Length |
20mm To 150mm |
| Surface Finish |
Bright, Smooth, With Minimal Burrs |
| Material |
Stainless Steel 304, Carbon Steel |
| Thread Pitch |
Standard |
| Thread Diameter |
M6, M8, M10, M12, M16, M20 Up To M30 |
| Standard |
GB/T 798-1988, DIN 444 |
| Mon |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M27 |
M30 |
| P |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
3 |
3.5 |
| d1 max |
5.03 |
6.03 |
8.036 |
10.036 |
12.043 |
16.043 |
18.043 |
22.052 |
25.052 |
28.052 |
| d1 min |
5 |
6 |
8 |
10 |
12 |
16 |
18 |
22 |
25 |
28 |
| dk max |
12 |
14 |
18 |
20 |
25 |
32 |
40 |
45 |
50 |
55 |
| dk min |
10.9 |
12.9 |
16.9 |
18.7 |
23.7 |
30.4 |
38.4 |
43.4 |
48.4 |
53.1 |
| s max |
8 |
9 |
11 |
14 |
17 |
19 |
24 |
28 |
30 |
34 |
| s min |
7.52 |
8.52 |
10.3 |
13.3 |
16.3 |
18.16 |
23.16 |
27.16 |
29.16 |
33 |
| ds max |
5 |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
27 |
30 |
Applications:
Industrial Machinery
In the realm of industrial machinery, these components play a crucial role in linking parts that necessitate frequent angle adjustments or easy disassembly. They are essential in various mechanical equipment where flexibility and maintenance efficiency are paramount.
Valve & Pipeline
These components find widespread use in systems involving low-temperature, high-pressure valves and pressure pipelines. Additionally, they are integral to fluid engineering systems, providing reliable performance under demanding conditions.
Lifting & Rigging
When combined with suitable slings or hooks, they serve as dependable lifting points for hoisting and rigging activities. This reliability ensures safety and efficiency in various lifting operations.
Automotive & Transportation
In the automotive and transportation sectors, these components are utilized in suspension systems and chassis connections. They are also commonly used in the assembly of folding bicycles and children’s bikes, contributing to structural integrity and ease of use.
General Assembly
These parts are ideal for general assembly applications, including furniture manufacturing, such as adjustable brackets. Moreover, they are widely applied in outdoor facilities like tent fixings and gym equipment, as well as in assembling various hardware tools.
