Product Description:

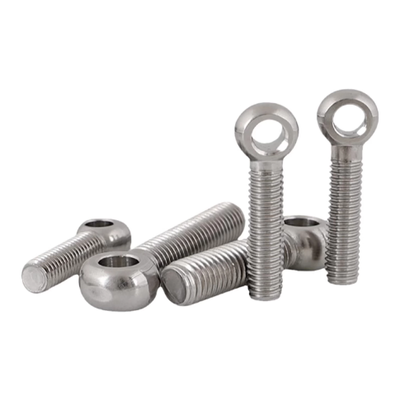

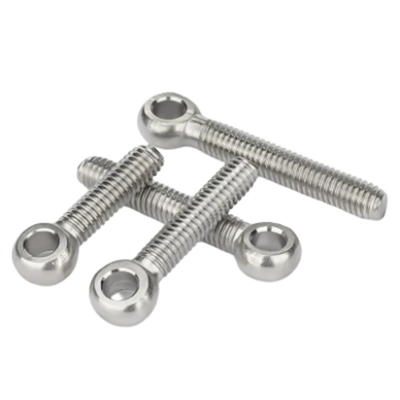

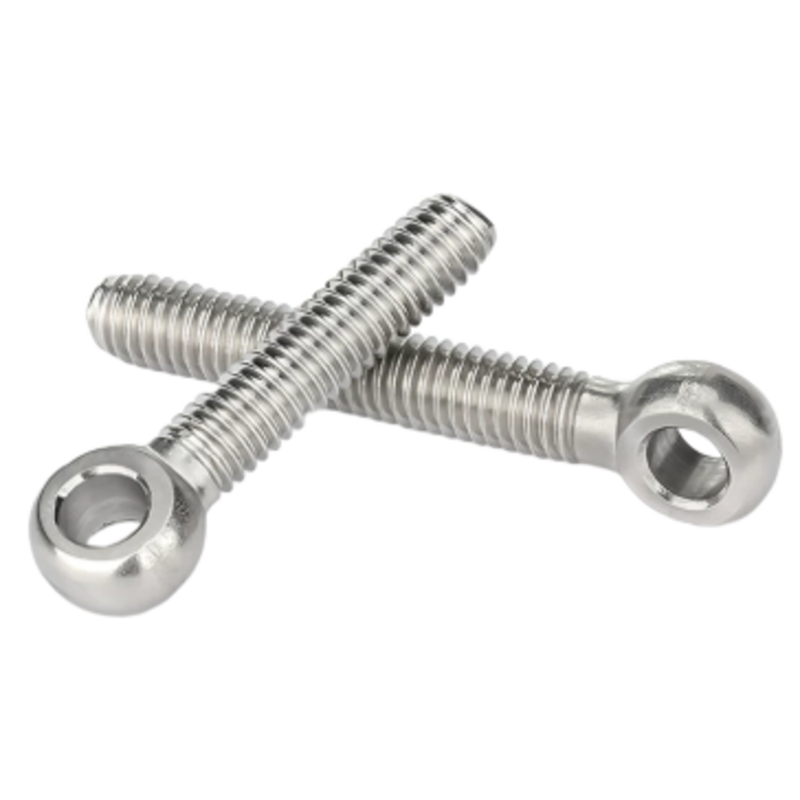

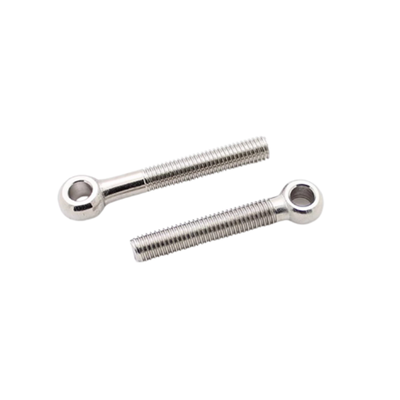

The Eye Bolt, which is sometimes referred to as a Fish Eye Bolt or Live Joint Screw, is a highly adaptable hardware fastener. It is specifically designed to provide flexible and secure connections in various applications. One end of the bolt features a precisely machined circular eye, while the opposite end has a shank that is either fully or partially threaded.
Crafted from robust materials such as 304 Stainless Steel or Carbon Steel (Q235), this eye bolt is built to withstand harsh conditions. It offers exceptional resistance to corrosion, outstanding durability, and dependable performance even in challenging environments. The manufacturing process adheres strictly to the GB/T 798-1988 (Chinese National Standard) and DIN 444 (German Industrial Standard), guaranteeing accurate dimensions and thread precision.
Available in a broad range of sizes, with thread diameters ranging from M6 up to M64, this product is tailored to meet the demands of diverse projects. Its design makes it especially suitable for applications that require a pivot point, an adjustable angle, or a secure lifting point. Easy to connect and disconnect, the eye bolt is an indispensable component for both industrial operations and general-purpose use.
Features:
Premium Material Options: Our products are crafted from high-quality materials to meet various needs. You can choose between 304 Stainless Steel (A2), which provides exceptional resistance to rust and corrosion, or Carbon Steel (Q235) that has been treated with surface coatings such as black oxide or hot-dip galvanizing to boost its durability.
High Strength: These components are forged from sturdy materials, ensuring excellent tensile strength and long-lasting performance. For carbon steel variants, strength grades of 4.8, 8.8, and 10.9 are available, while stainless steel options come with an A2-70 grade.
Precision Engineering: Manufactured in compliance with the stringent GB798 and DIN444 standards, each piece features a smooth spherical surface as well as high-precision threading, guaranteeing reliable and efficient operation.
Versatile Threading Options: To cater to different fastening needs, the product comes in both fully threaded and partially threaded versions, providing flexibility in application.
Versatile Design: The circular eye design allows for easy attachment to pins, chains, or ropes. This feature supports flexible rotation and angular adjustments, enhancing its usability in various scenarios.
Technical Parameters:
| Standard |
GB/T 798-1988, DIN 444 |
| Thread Pitch |
Standard |
| Surface Finish |
Bright, Smooth, With Minimal Burrs |
| Material |
Stainless Steel 304, Carbon Steel |
| Thread Diameter |
M6, M8, M10, M12, M16, M20 Up To M30 |
| Nominal Length |
50mm To 200mm |
| Mon |
M5 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M27 |
M30 |
| P |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2.5 |
3 |
3 |
3.5 |
| d1 max |
5.03 |
6.03 |
8.036 |
10.036 |
12.043 |
16.043 |
18.043 |
22.052 |
25.052 |
28.052 |
| d1 min |
5 |
6 |
8 |
10 |
12 |
16 |
18 |
22 |
25 |
28 |
| dk max |
12 |
14 |
18 |
20 |
25 |
32 |
40 |
45 |
50 |
55 |
| dk min |
10.9 |
12.9 |
16.9 |
18.7 |
23.7 |
30.4 |
38.4 |
43.4 |
48.4 |
53.1 |
| s max |
8 |
9 |
11 |
14 |
17 |
19 |
24 |
28 |
30 |
34 |
| s min |
7.52 |
8.52 |
10.3 |
13.3 |
16.3 |
18.16 |
23.16 |
27.16 |
29.16 |
33 |
| ds max |
5 |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
27 |
30 |
Applications:
Industrial machinery often requires components to be connected in a way that allows for frequent angle adjustments or easy disassembly. These connectors are essential in mechanical equipment to ensure flexibility and maintenance convenience.
In the field of valves and pipelines, these connectors find widespread use, especially in low-temperature, high-pressure valves, as well as pressure pipelines and various fluid engineering systems. Their robust design helps maintain secure and leak-proof connections under demanding conditions.
For lifting and rigging applications, these components serve as dependable lifting points. When paired with suitable slings or hooks, they facilitate safe and efficient hoisting and rigging operations, ensuring stability and reliability throughout the process.
Within the automotive and transportation industries, these connectors play a crucial role in suspension systems and chassis connections. Additionally, they are commonly used in the assembly of folding bicycles and children's bikes, where durability and adjustability are important considerations.
Finally, in general assembly tasks, these connectors are ideal for various purposes such as furniture manufacturing—particularly adjustable brackets—as well as outdoor facility constructions like tent fixings and gym equipment. They also contribute effectively to hardware tool assembly, enhancing overall structural integrity and functionality.
