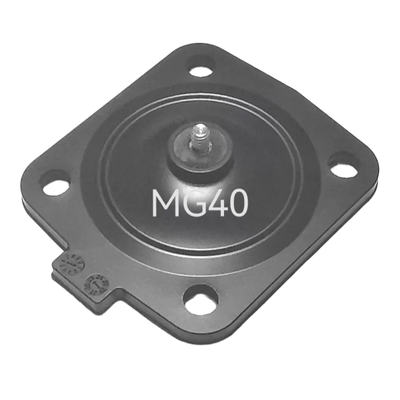

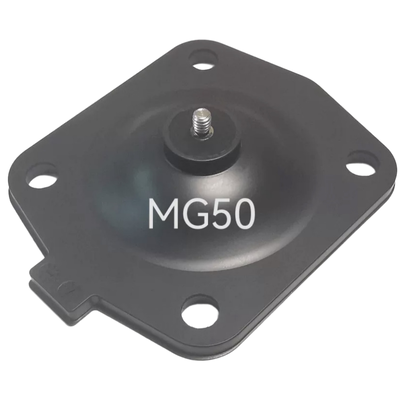

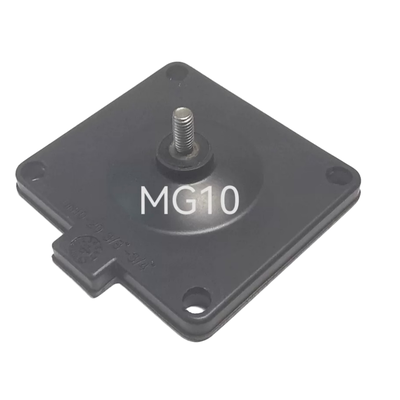

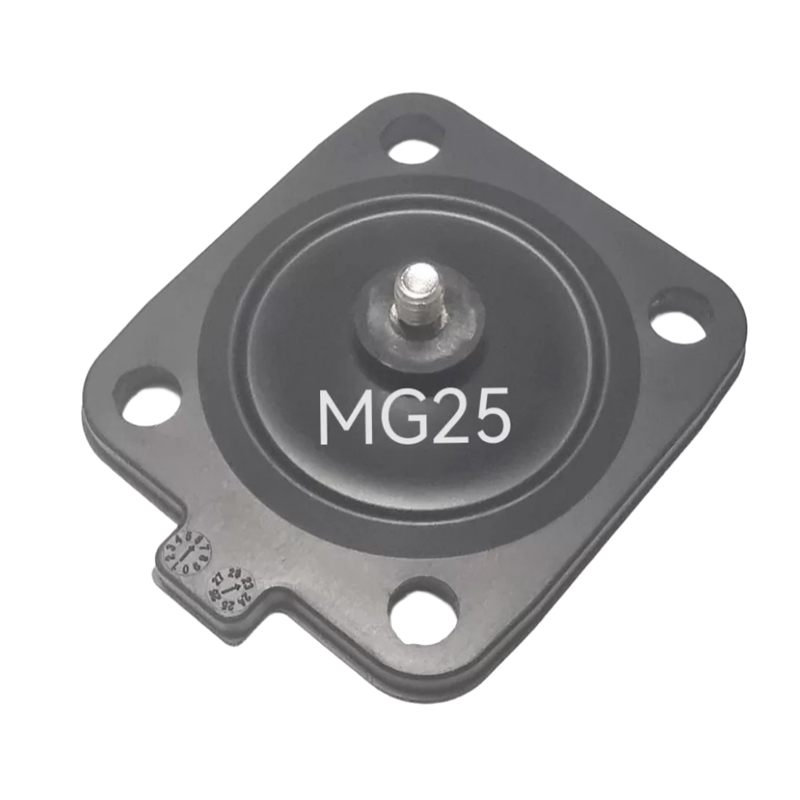

Product Description:
The GEMÜ diaphragm valve diaphragm is a key sealing component independently developed by the GEMÜ Group. As a crucial functional part of diaphragm valves, it plays an essential role in ensuring reliable performance. This diaphragm is designed to be compatible with the entire range of GEMÜ sanitary and industrial diaphragm valves, covering nominal diameters from DN4 to DN300.
The mainstream design of this diaphragm features a double-layer composite structure, consisting of a PTFE surface layer combined with an EPDM elastomer backing. Depending on specific working conditions, various material options are available, including pure elastomer versions and fully PTFE variants. This versatility allows the diaphragm to meet diverse application requirements.
Leveraging decades of research and development experience in sealing technology alongside an exclusive annular weir sealing structure, the product achieves sealing without dead angles and enables precise control of valve opening and closing. All diaphragms undergo rigorous factory inspections and obtain international authoritative industry certifications.
The diaphragm is well-suited for complex industrial environments, including sterile, corrosive, and extreme temperature conditions. As a core accessory, it ensures cleanliness and tightness in fluid control systems, contributing significantly to the reliability and safety of various industrial processes.
Features:
Engineered to ensure zero leakage, this product offers outstanding resistance to pressure, making it highly reliable under demanding conditions.
Compliant with FDA, EHEDG, and GMP standards, it is fully autoclavable, ensuring it meets rigorous hygiene and safety requirements.
Designed to withstand acids, alkalis, and various corrosive substances, it also features excellent anti-aging properties for prolonged durability.
With easy replacement options, the product guarantees a long service life and requires minimal maintenance, reducing downtime and operational costs.
Its sensitive response mechanism allows for precise control of flow, enhancing performance and accuracy in various applications.
Technical Parameters:
| Working Temperature Range |
Liquid Media: -20~90°C; Steam: 150°C Max., 180°C Min. |
| Material |
EPDM |
| Highlight |
GEMU Diaphragm Valve Repair Kit, EPDM Diaphragm Valve Kits, FDA Class GEMU Diaphragm Parts |
| Brand Name |
GEMU |
| Product Name |
MG80 |
| Diaphragm Size |
DN8~DN100 |
Applications:
This product finds extensive applications across a variety of industries, including , food and beverage, and chemicals. It is specifically designed to meet the stringent requirements of sterile and high-cleanliness environments.
In addition to these sectors, it is also widely utilized in water treatment processes, semiconductor manufacturing, new energy solutions, and precision equipment production. Its robust design ensures effective control of corrosive fluids, making it an essential component in complex fluid control systems.
Support and Services:
Our Pulse Valve Diaphragm product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal functionality.
Our expert support team is equipped to help you with any issues related to the diaphragm’s compatibility, wear and tear, or replacement procedures. We recommend regular inspection and timely replacement of the diaphragm to maintain the pulse valve’s performance and prevent unexpected downtime.
In addition to technical support, we offer a range of services such as custom diaphragm manufacturing, performance testing, and on-site consultation to meet your specific requirements. Our commitment is to provide high-quality products along with responsive and knowledgeable service to support your operational needs.
Please refer to the product manual for detailed specifications and handling instructions. For further assistance, our technical support resources are available to help you maximize the lifespan and efficiency of your Pulse Valve Diaphragm.
Packing and Shipping:
Product Packaging and Shipping for Pulse Valve Diaphragm
The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually wrapped in anti-static and moisture-resistant material to prevent damage and contamination. The wrapped diaphragms are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.
For bulk orders, the diaphragms are organized in secure trays or compartments within the shipping carton to avoid movement and friction between parts. All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics.
Shipping is available via air, sea, or land freight depending on the destination and customer requirements. We work with reliable carriers to ensure timely and safe delivery. Additionally, tracking information is provided for all shipments to keep customers informed throughout the delivery process.
Special packaging options can be arranged upon request to meet specific industry standards or customer preferences. Our goal is to deliver the Pulse Valve Diaphragm in perfect condition, ready for immediate use.
