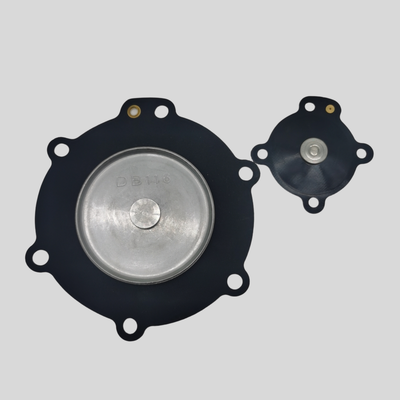

Field Maintenance Spare Consumable DB116 FKM Diaphragm Spring Unit Direct Swap To Fix Air Leakage Issues On Mecair Pulse Jet Valve

The Mecair DB Series diaphragm repair kits are meticulously engineered replacement membranes specifically designed for Mecair VNP and VEM 200 series pulse jet solenoid valves. These valves are extensively utilized in industrial dust collector and baghouse systems. Serving as vital sealing and actuating components within pulse valves, the diaphragms regulate the opening and closing mechanisms, enabling the delivery of compressed air pulses essential for efficient filter cleaning.

The product line offers a wide range of port sizes, ranging from 3/4" to 3". Each repair kit generally comprises the diaphragm(s) along with the necessary spring(s), ensuring a comprehensive solution suitable for on-site replacements.

Customers can choose between diaphragms made from NBR (nitrile) and FKM (fluororubber/Viton) materials, both known for their superior thermal aging resistance and extensive chemical compatibility. NBR diaphragms are ideal for general applications, performing well within temperature ranges from -20°C to +80°C. In contrast, FKM diaphragms are tailored for high-temperature environments, offering robust chemical resistance and withstanding temperatures up to +120°C.

The catalog includes single diaphragm kits such as DB16, DB18, DB112, DB114, DB116, DB120, and DB124, as well as combination kits like DB114+DB16, DB116+DB16, and DB120+DB16. These combination sets come with both main and smaller diaphragms plus springs, designed specifically for valves incorporating multiple diaphragms. Additionally, the DB18M and DB18MV variants are available in either plastic-sealed packaging or M-bag packaging.

Each repair kit is crafted to fit particular Mecair VNP and VEM valve models, including VNP206, VNP208, VNP212, VNP214, VNP216, VNP220, and their corresponding VEM versions. Renowned across global industrial dust collection sectors, the Mecair DB series diaphragms provide dependable, high-flow pulse jet cleaning performance combined with minimal maintenance requirements.

Our product range includes a broad selection of part numbers such as DB16, DB18, DB18M, DB112, DB114, DB116, DB120, and DB124, designed to support a wide variety of Mecair pulse valves. This extensive coverage ensures you can find the right component for virtually any application within the Mecair system.

To offer optimal performance across different operating conditions, we provide multiple material options. The standard material is NBR, suitable for temperatures from -20°C up to +80°C. For high-temperature environments, we recommend FKM/Viton, which can withstand temperatures as high as +120°C, ensuring broad compatibility with various media.

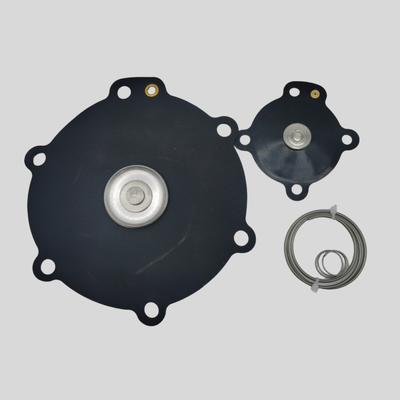

Our complete repair kits contain essential parts including diaphragms and springs. These kits are designed to facilitate full field replacement, simplifying maintenance tasks and reducing operational downtime.

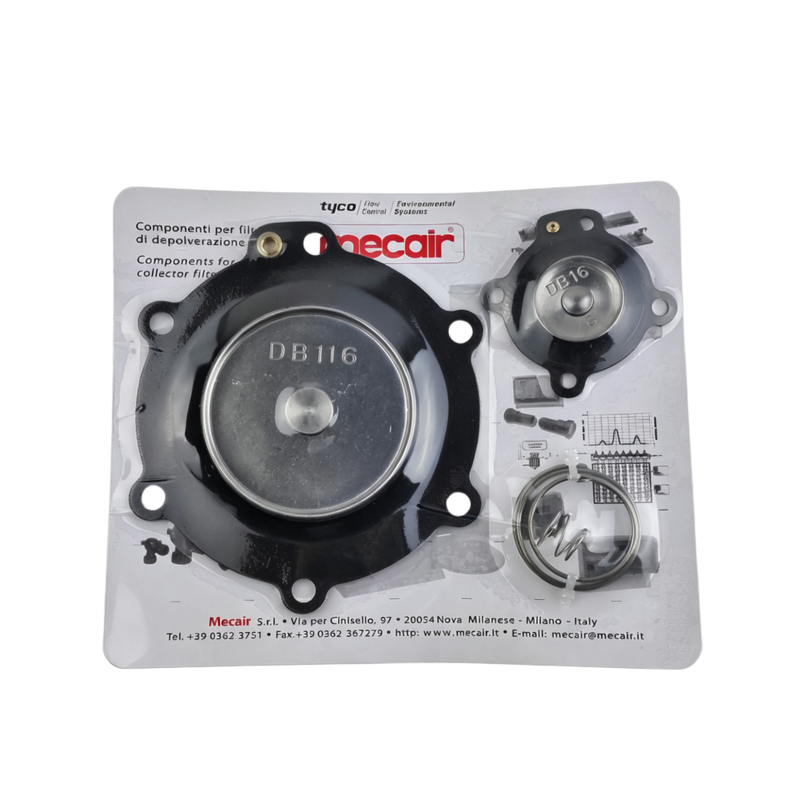

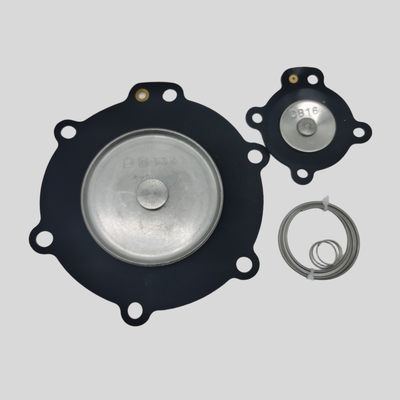

For multi-diaphragm valve systems, combination kits such as DB114+DB16, DB116+DB16, and DB120+DB16 are available. Each set includes two springs, enabling efficient servicing and ensuring reliable functionality of complex valve assemblies.

Our diaphragms feature a fabric-reinforced construction, specifically nylon-reinforced NBR, which offers excellent resistance to thermal aging. This design enhances the durability and lifespan of the valve components under rigorous operating conditions.

The valves are precision engineered to provide dependable sealing, guaranteeing consistent valve operation and minimizing air leakage. This meticulous design contributes to overall system efficiency and reliability.

Constructed for endurance, these components are capable of achieving over one million pulse cycles, even in demanding dust collector environments. This high cycle life ensures extended operational periods without frequent replacements.

Our parts cover a comprehensive range of port sizes including 3/4", 1", 1-1/2", 2", 2-1/2", and 3". This variety supports diverse installation requirements and system configurations.

For specific models such as DB18M and DB18MV, packaging options include plastic-sealed or M-bag formats. This ensures product integrity during transportation and storage.

Designed with ease of maintenance in mind, the replacement procedures are straightforward, helping to minimize downtime and maintain continuous operation of your equipment.

All components are manufactured to meet exact Mecair specifications, guaranteeing OEM quality. This ensures perfect fit and reliable performance consistent with original equipment standards.

Pulse jet baghouse dust collectors utilize a reverse pulse cleaning method to maintain the efficiency of fabric filter bags. This technique involves cleaning the bags by sending a rapid burst of compressed air in the opposite direction of the airflow, which effectively dislodges accumulated dust.

Cartridge filter systems are designed to clean pleated cartridge filters. These systems play a crucial role in capturing dust particles and maintaining clean air flow through industrial processes.

In the cement industry, dust control is essential for operations in kilns, mills, and material handling. Efficient dust collection helps improve air quality and maintain compliance with environmental regulations.

The steel and metallurgy sectors rely on effective furnace fume extraction and blast furnace dust control to ensure a safe working environment and protect equipment from dust accumulation.

Power generation facilities use dust control systems primarily for fly ash collection and boiler dust management, which are critical for maintaining operational efficiency and environmental standards.

Chemical processing plants benefit from dust collection systems that handle powder materials and process dust, helping to prevent contamination and ensure worker safety.

In the mining and quarrying industries, dust control focuses on crushing and material handling areas to reduce airborne dust and protect equipment and personnel.

Food and grain processing operations employ dust extraction systems to maintain cleanliness, prevent cross-contamination, and ensure product quality.

General industrial filtration requires maintenance of pulse jet cleaning valves, which is vital across various industries to sustain the performance of dust collection systems.
