Product Description:
The diaphragms for the QBY and QBY3 series air-operated diaphragm pumps serve as the essential wear parts for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models, including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3 series models such as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

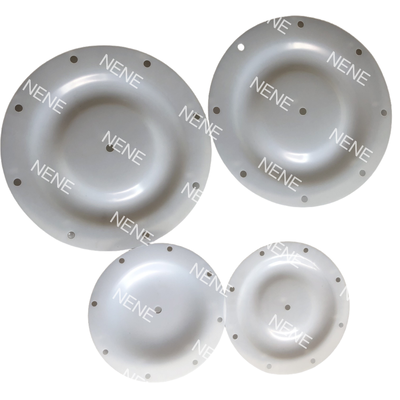

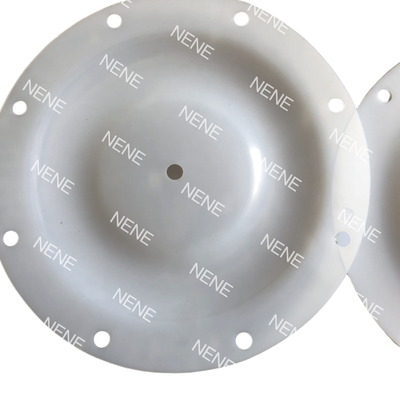

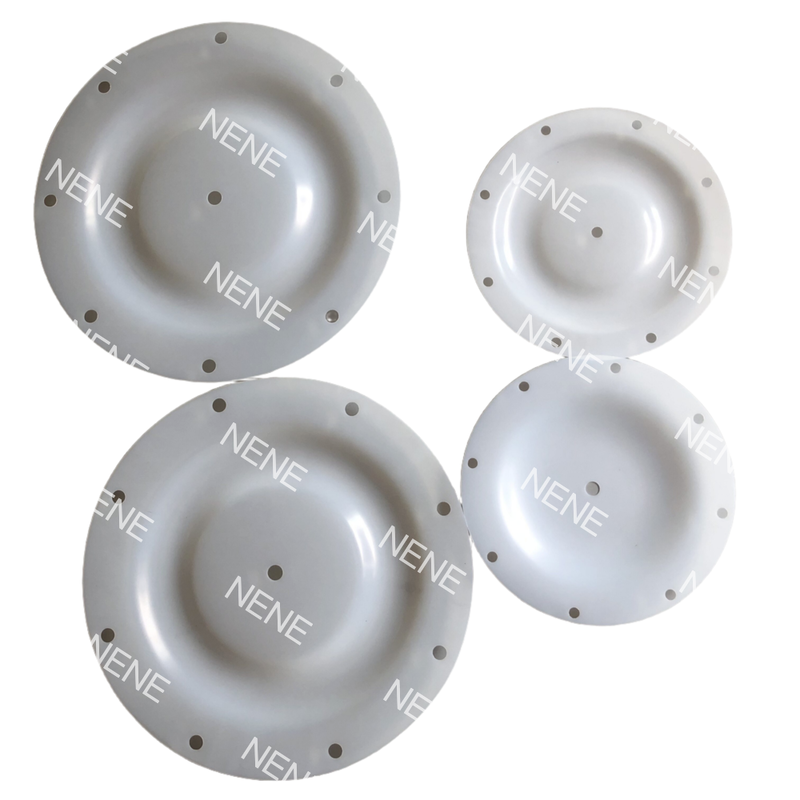

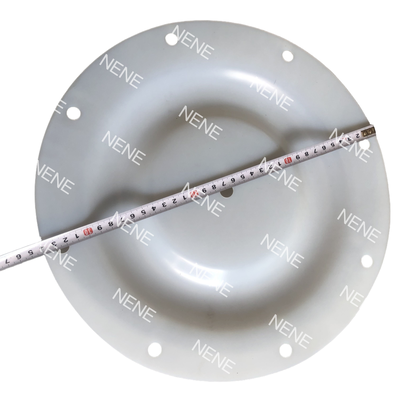

This white F46 diaphragm comes in multiple outer diameter sizes and hole configurations to accommodate various pump requirements. The available outer diameters include 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. Additionally, users can select from versions with 6 holes, 8 holes, 10 holes, no holes, or a center hole of 92mm, ensuring a perfect fit for different pump systems.
Constructed from F46 material, the diaphragm offers outstanding corrosion resistance, making it suitable for transferring acidic, alkaline, and chemically corrosive fluids with consistent reliability. This diaphragm is designed as a maintenance replacement part, enabling straightforward installation. It is widely utilized as a standard spare part for air diaphragm pumps across a range of industries, including chemical processing, wastewater treatment, and electroplating.
Features:
These components are fully compatible with the QBY and QBY3 pump series, offering a variety of outer diameters and hole configurations. This ensures an ideal fit with the original pump equipment, providing seamless integration and optimal performance.
Manufactured from F46 material, the product exhibits excellent resistance to corrosion caused by acids, alkalis, and solvents. This makes it highly suitable for use in demanding chemical environments where durability is critical.
The material also boasts superior elasticity and outstanding resistance to fatigue. It can endure repeated reciprocating motions without cracking, which significantly extends the operational lifespan of the pump.
With precise dimensional accuracy, this spare part ensures stable sealing capabilities. Its design allows for easy installation, enabling quick and direct replacement of worn diaphragms without hassle.
Designed as an industrial-grade spare part for Air-Operated Double Diaphragm (AODD) pumps, it is ideal for self-priming transfer tasks and the delivery of high-flow corrosive liquids, meeting rigorous industrial requirements.
Technical Parameters:
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
| Material |
F46 White |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole 92MM |
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
This product is an essential component of QBY air diaphragm pump spare parts, designed specifically for QBY diaphragm pump models. As a reliable QBY air diaphragm pump spare parts option, it ensures optimal performance and durability.
Applications:
Chemical Industry: This industry involves the transportation of a wide range of corrosive chemical liquids, ensuring safe and efficient delivery processes.
Wastewater Treatment: The transfer of wastewater sludge slurry plays a crucial role in sewage management, facilitating effective treatment and disposal.
Electroplating Industry: Circulation and transfer of electroplating liquids are essential for maintaining the plating process and achieving high-quality finishes.
Coating & Ink: The movement of paint and dye fluids is critical in the production and application of coatings and inks, supporting consistent color and texture.
Mining Industry: Delivery of slurry and corrosive pulp is necessary to handle the materials extracted during mining operations safely.
Pharmaceutical Industry: The transfer of corrosive raw materials is a key aspect in pharmaceutical manufacturing, ensuring proper handling and processing of sensitive substances.
Support and Services:
Our Pulse Valve Diaphragm is designed to ensure optimal performance and longevity of your pulse valve systems. For technical support, we provide comprehensive guidance on installation, maintenance, and troubleshooting to help you achieve efficient operation.
Our services include detailed product documentation, application advice, and replacement part identification to minimize downtime and extend the service life of your equipment. We also offer expert consultation to tailor solutions to your specific operational requirements.
Should you encounter any issues with your Pulse Valve Diaphragm, our technical team is ready to assist with diagnostic support and step-by-step corrective actions. Regular maintenance services and inspection schedules are recommended to maintain peak functionality and prevent unexpected failures.
We are committed to delivering high-quality support and services to empower your operations with reliable and durable pulse valve components.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first wrapped in a protective film to prevent any damage or contamination. It is then placed in a sturdy, custom-designed box with foam inserts that secure the product and absorb shocks.
For shipping, we use reliable carriers that provide tracking and insurance options to guarantee safe delivery to your location. All packages are clearly labeled with handling instructions to ensure proper care throughout the shipping process.
Whether you are ordering a single diaphragm or bulk quantities, we ensure that your Pulse Valve Diaphragm arrives in perfect condition and ready for immediate use.
