Product Description:
The diaphragms for the QBY and QBY3 series air operated diaphragm pumps are essential wear parts designed specifically for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3 series models such as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

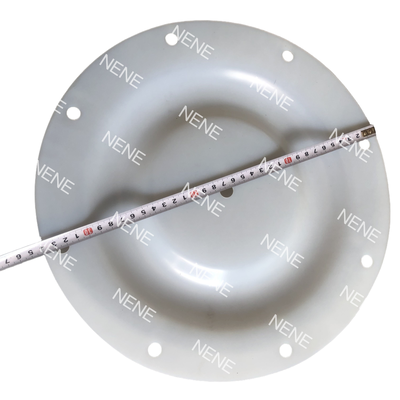

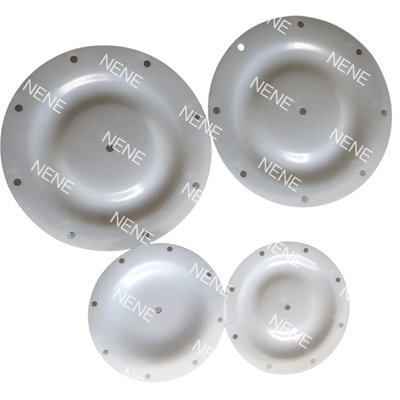

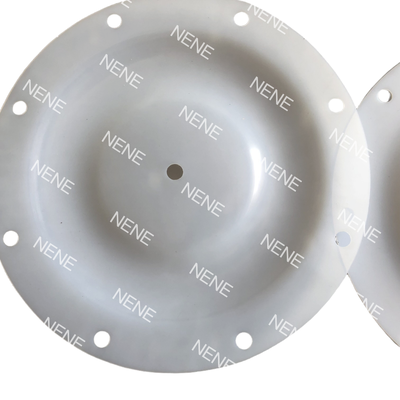

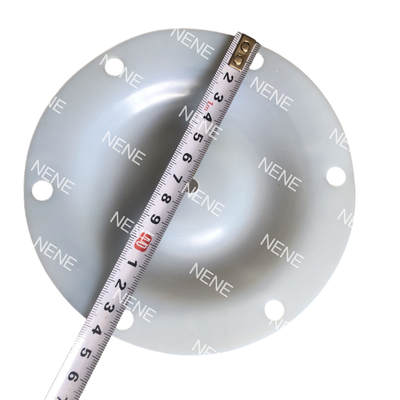

The white F46 diaphragm is available in a wide range of outer diameters and hole configurations to accommodate different pump setups. Outer diameters offered include 125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, and 450MM. Customers can choose from multiple hole options such as 6 holes, 8 holes, 10 holes, no holes, and a center hole version with a 92MM dimension to ensure a perfect fit for their equipment.
Constructed from F46 material, these diaphragms provide exceptional corrosion resistance, making them suitable for handling acidic, alkaline, and chemically corrosive fluids. They offer a stable and reliable service life. These diaphragms serve as convenient maintenance replacement parts, are easy to install, and are widely used as standard spare parts for air diaphragm pumps in industries like chemical processing, wastewater treatment, and electroplating.
Features:
The specifications of this diaphragm are fully compatible with the QBY and QBY3 pump series. It offers multiple options for outer diameters and hole configurations, ensuring an ideal fit with the original pump equipment.
Made from F46 material, the diaphragm exhibits excellent corrosion resistance against acids, alkalis, and solvents. This makes it highly suitable for use in harsh chemical environments where durability is essential.
Its superior elasticity and anti-fatigue properties enable the diaphragm to withstand repeated reciprocating motions without cracking. This feature significantly contributes to extending the overall service life of the pump.
The diaphragm boasts high dimensional accuracy and reliable sealing performance. Its design allows for easy installation, facilitating direct replacement of worn diaphragms without complications.
As an industrial-grade AODD pump spare part, this diaphragm is suitable for self-priming transfer applications and the delivery of corrosive liquids at high flow rates.
Technical Parameters:
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
| Material |
F46 White |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole 92MM |
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
Applications:
The chemical industry requires the efficient delivery of a variety of corrosive chemical liquids. Specialized equipment is essential to handle these substances safely and effectively, ensuring smooth operational processes.
In wastewater treatment, the transfer of sewage sludge slurry plays a crucial role. Proper handling and movement of this slurry are vital for maintaining environmental standards and optimizing treatment procedures.
The electroplating industry relies on the circulation and transfer of electroplating liquids. Maintaining consistent flow and preventing contamination are key factors in achieving high-quality plating results.
When it comes to coating and ink production, the transfer of paint and dye fluids must be managed carefully. This ensures uniformity in the final product and prevents any interruption in the manufacturing line.
The mining industry demands reliable delivery systems for slurry and corrosive pulp. Safe and efficient transport of these materials supports the continuous extraction and processing of valuable minerals.
In the pharmaceutical sector, the transfer of corrosive raw materials is a critical process. Specialized equipment ensures safe handling while maintaining the purity and integrity of pharmaceutical ingredients.
