Product Description:
The diaphragms for the QBY and QBY3 series air operated diaphragm pumps are essential wearable spare parts designed specifically for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

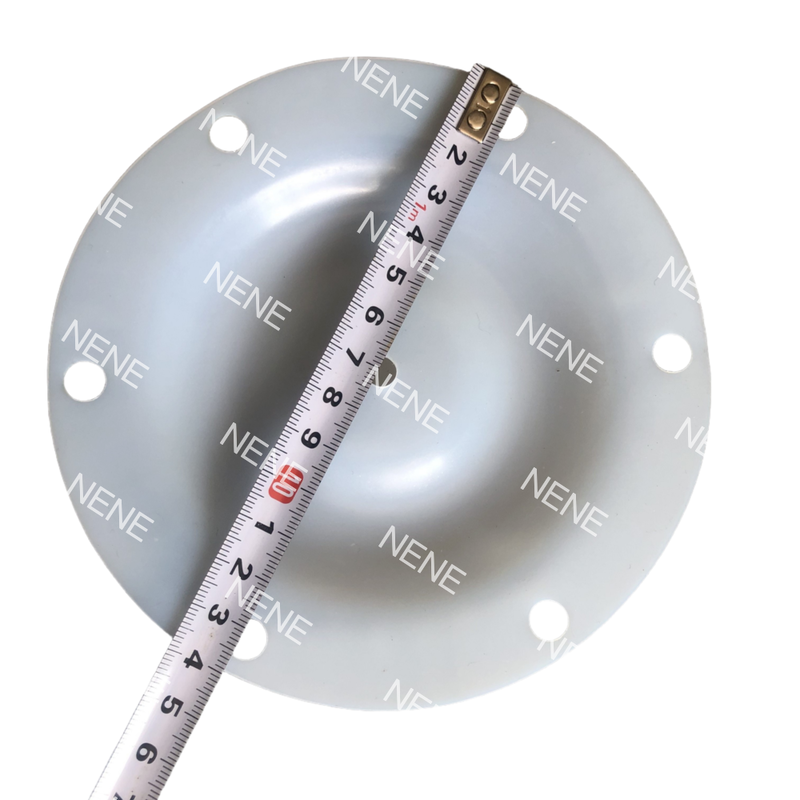

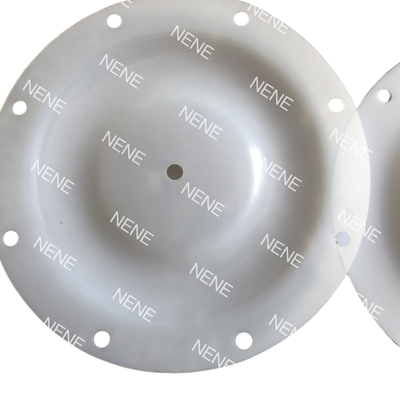

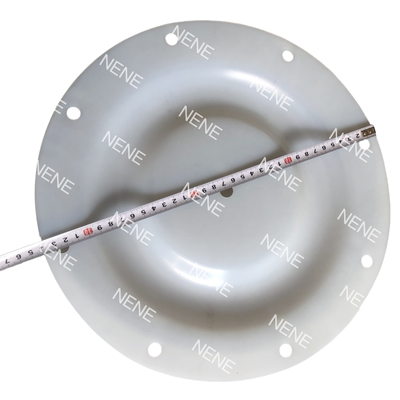

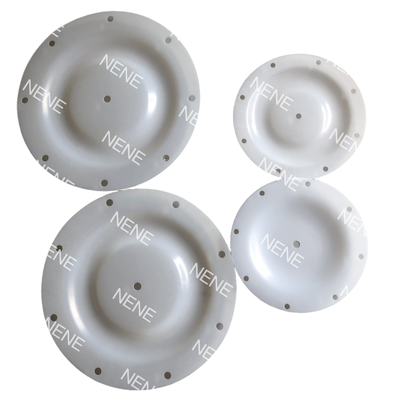

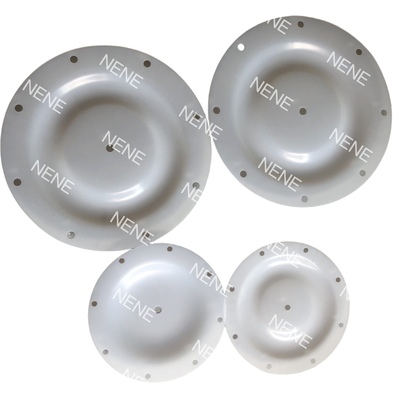

This white F46 diaphragm is designed to support a diverse range of outer diameter sizes and hole configurations, making it versatile for various applications. The available outer diameters include 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. Additionally, users can select from multiple hole options such as 6 holes, 8 holes, 10 holes, no holes, and a 92mm center hole to perfectly fit different pump equipment.
Constructed from F46 material, this diaphragm offers outstanding corrosion resistance, making it ideal for handling acidic, alkaline, and chemically corrosive fluid transfers. It provides a stable and reliable service life, ensuring consistent performance. The diaphragm serves as an easy-to-install maintenance replacement part and is widely used as a standard spare component for air diaphragm pumps in industries such as chemical processing, wastewater treatment, and electroplating.
Features:
The specifications are fully compatible with the QBY and QBY3 pump series, featuring multiple outer diameters and hole configurations to ensure a perfect fit with the original pump equipment.
Constructed from F46 material, this product offers excellent corrosion resistance against acids, alkalis, and solvents, making it ideal for use in harsh chemical environments.
It exhibits good elasticity and superior anti-fatigue properties, which help prevent cracking during repeated reciprocating movements, thereby extending the overall service life of the pump.
With high dimensional accuracy and stable sealing capabilities, the diaphragm is easy to install and enables direct replacement of worn parts without hassle.
This industrial-grade spare part is designed specifically for AODD pumps and is well-suited for self-priming transfer and the delivery of high flow corrosive liquids.
Technical Parameters:
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
| Material |
F46 White |
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole 92MM |
Applications:
The chemical industry requires reliable solutions for the transportation of various corrosive chemical liquids. Ensuring safe and efficient delivery systems is essential to handle these aggressive substances.
In wastewater treatment, the transfer of sewage sludge slurry plays a crucial role. Effective handling and movement of this waste material are necessary for optimizing treatment processes and maintaining environmental standards.
The electroplating industry depends on the continuous circulation and transfer of electroplating liquids. Maintaining fluid flow is important for the consistency and quality of electroplating operations.
Within the coating and ink sector, the transfer of paint and dye fluids is a vital process. Proper handling ensures the integrity of these materials and supports efficient manufacturing workflows.
The mining industry deals with the delivery of slurry and corrosive pulp. Robust transfer solutions are required to manage these abrasive and chemically aggressive substances safely and effectively.
In the pharmaceutical industry, the transfer of corrosive raw materials must be managed with precision and care. Reliable systems help maintain product quality while ensuring the safety of operators and equipment.
Support and Services:
Our Pulse Valve Diaphragm products are designed to deliver exceptional performance and durability in demanding industrial environments. To ensure optimal operation, we provide comprehensive technical support and services tailored to your specific needs.
Technical support includes assistance with installation, troubleshooting, maintenance, and replacement procedures. Our team of experts is available to guide you through proper diaphragm selection based on your application requirements, ensuring compatibility and longevity.
We also offer detailed product documentation, including specifications, installation manuals, and maintenance guidelines to help you maximize the efficiency and lifespan of your pulse valve diaphragm.
For service, we provide inspection and testing to identify wear or damage, as well as repair and replacement services to minimize downtime. Regular maintenance programs can be arranged to keep your pulse valve diaphragms functioning at peak performance.
Our commitment is to support your operations with reliable products and responsive service, helping you achieve consistent, trouble-free pulse valve performance.
Packing and Shipping:
The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually wrapped in a protective film to prevent contamination and damage. The wrapped diaphragms are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. The packaging is labeled clearly with handling instructions to ensure the product is treated with care. Bulk orders are securely packed on pallets with additional padding to prevent movement and damage during transportation.
Our packaging and shipping processes comply with industry standards to ensure that the Pulse Valve Diaphragm arrives in perfect condition, ready for immediate use.
