Product Description:
The diaphragms in the QBY and QBY3 series of air-operated diaphragm pumps are essential, wearable spare parts designed specifically for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models including QBY-15, QBY-25, QBY-40, QBY50, QBY65, QBY80, QBY100 as well as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

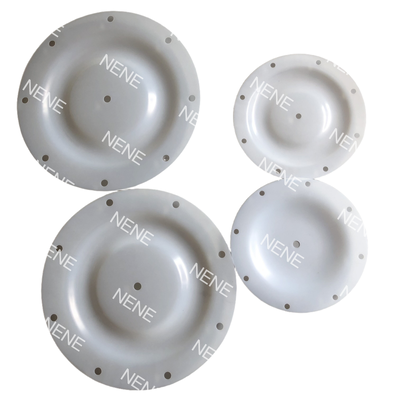

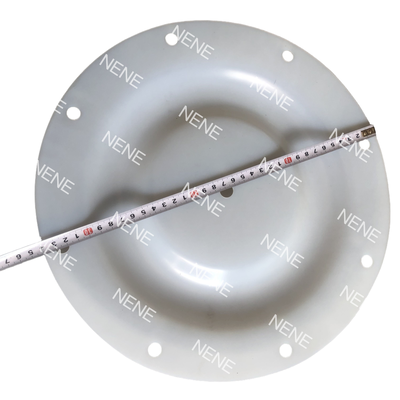

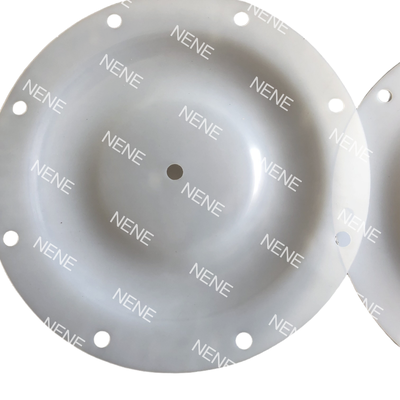

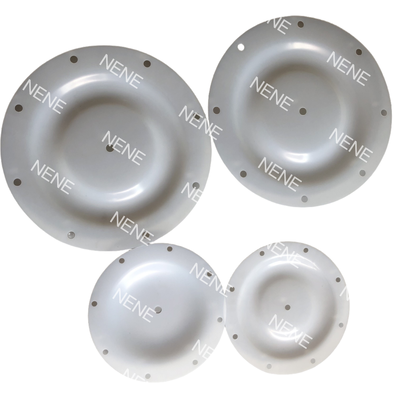

This white F46 diaphragm accommodates a broad selection of outer diameter sizes and hole configurations to meet diverse requirements. The available outer diameters include 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. Additionally, options for hole patterns include 6 holes, 8 holes, 10 holes, no holes, and center hole versions with a 92mm diameter, allowing it to fit various pump equipment perfectly.
Manufactured from F46 material, this diaphragm provides outstanding corrosion resistance, making it ideal for transferring acidic, alkaline, and chemically corrosive fluids. It ensures a stable service life and functions as an easy-to-install maintenance replacement part. This diaphragm is widely used as a standard spare component for air diaphragm pumps across industries such as chemical processing, wastewater treatment, and electroplating.
Features:
The product boasts complete specifications that are fully compatible with the QBY and QBY3 pump series. It offers multiple outer diameter and hole configuration options, ensuring an ideal fit for original pump equipment.
Manufactured from F46 material, this product delivers excellent corrosion resistance against acids, alkalis, and solvents. This makes it highly suitable for challenging chemical working environments.
It features good elasticity and outstanding anti-fatigue properties, which help resist cracking caused by repeated reciprocating movements. This durability effectively extends the service life of the pump.
With high dimensional accuracy and reliable sealing performance, the diaphragm is easy to install. It can be directly used as a replacement for worn diaphragms without any complications.
Designed as an industrial-grade spare part for Air-Operated Double Diaphragm (AODD) pumps, it is ideal for self-priming transfer applications and the delivery of high flow corrosive liquids.
Technical Parameters:
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
| Material |
F46 White |
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole, 92MM |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
Applications:
Chemical Industry
This sector involves the transportation of a wide range of corrosive chemical liquids. Efficient and safe delivery methods are crucial to handle these aggressive substances.
Wastewater Treatment
The treatment of wastewater includes the transfer of sewage sludge slurry, which requires specialized equipment to manage the thick and often abrasive mixtures.
Electroplating Industry
In electroplating processes, it is essential to circulate and transfer electroplating liquids continuously to maintain optimal coating quality.
Coating and Ink Industry
This industry focuses on the movement of paint and dye fluids, ensuring smooth transfer without contamination or consistency loss.
Mining Industry
Mining operations involve the delivery of slurry and corrosive pulp, which demands robust handling solutions due to the abrasive and corrosive nature of the materials.
Pharmaceutical Industry
The pharmaceutical field requires the transfer of corrosive raw materials with high precision and safety standards to maintain product integrity and worker safety.
Support and Services:
Our Pulse Valve Diaphragm product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal functionality, we offer comprehensive technical support and services tailored to meet your specific needs.
Our technical support team is available to assist with installation guidance, troubleshooting, and maintenance procedures. We provide detailed product documentation, including specifications, operation manuals, and maintenance tips to help you maximize the lifespan and efficiency of your pulse valve diaphragm.
We also offer repair and replacement services to minimize downtime and maintain system integrity. Our experts can help diagnose issues and recommend the best solutions, ensuring your equipment operates smoothly and effectively.
For customized solutions, we work closely with clients to understand their operational requirements and provide tailored modifications or enhancements to the pulse valve diaphragm. Our goal is to support your operations with high-quality products and responsive service.
Regular training sessions and webinars are available to keep your technical staff updated on the latest product features and maintenance practices. By partnering with us, you gain access to a dedicated support network committed to your success.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first placed in a protective plastic sleeve to prevent contamination and damage. It is then securely positioned within a custom-designed, shock-absorbent box that safeguards the product from impact and vibration.
For shipping, we use reliable carriers with tracking services to guarantee timely and safe delivery. All packages are labeled clearly with handling instructions to ensure proper care throughout the shipping process. Our packaging and shipping procedures are designed to maintain product integrity and ensure that the Pulse Valve Diaphragm arrives in perfect condition, ready for immediate use.
