Product Description:
The diaphragms for the QBY and QBY3 series air operated diaphragm pumps serve as essential wearable components for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models, including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

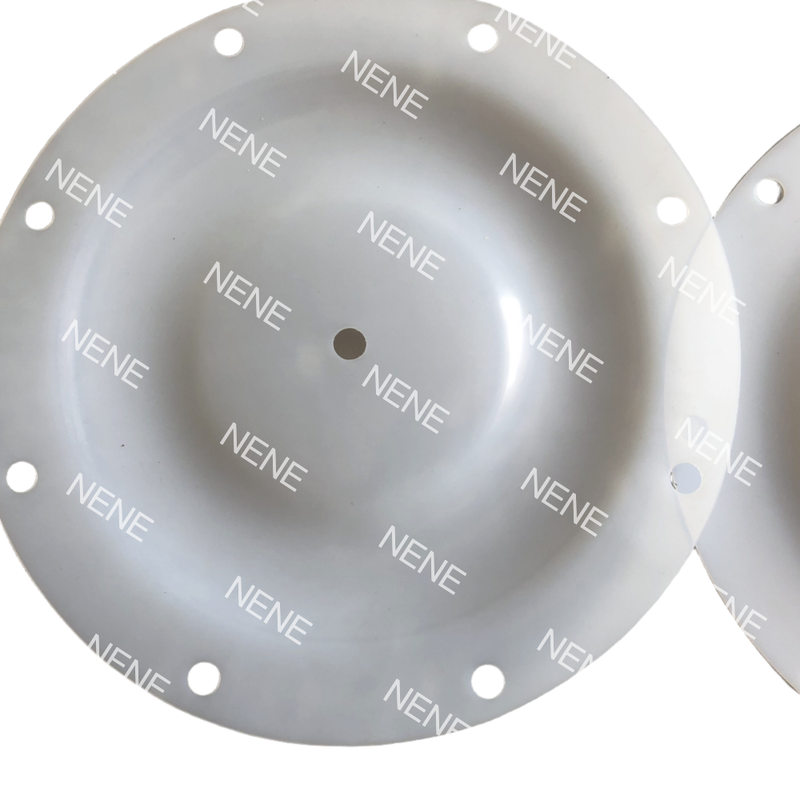

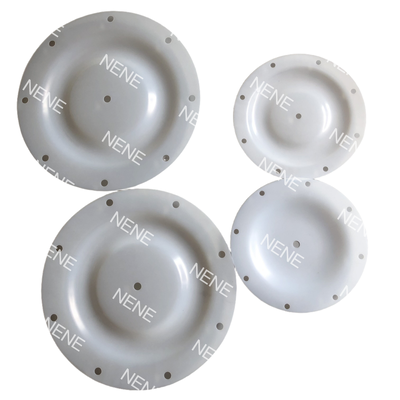

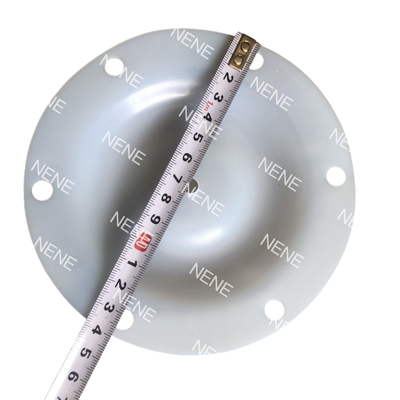

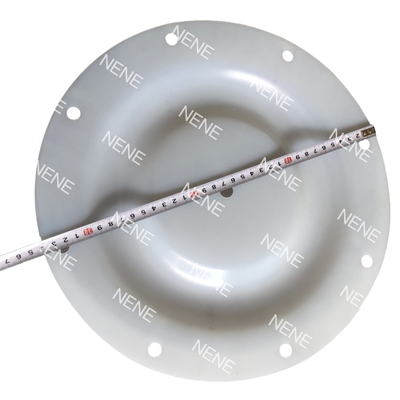

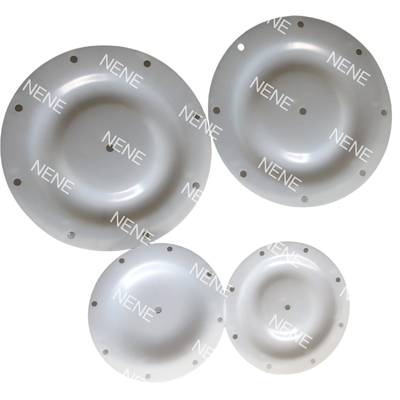

This white F46 diaphragm comes in multiple outer diameter sizes and hole configurations to accommodate a wide range of pump requirements. The available outer diameters include 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. In addition, customers can select from various hole patterns including 6 holes, 8 holes, 10 holes, no holes, or a center hole with a diameter of 92mm, ensuring compatibility with different pump models and equipment.
Manufactured from high-quality F46 material, these diaphragms offer excellent resistance against corrosion caused by acids, alkalis, and other chemically aggressive fluids. This ensures a stable and reliable service life under demanding conditions. Designed for easy installation and maintenance, the diaphragm serves as a standard replacement part widely used in industries such as chemical processing, wastewater treatment, and electroplating.
Features:
The product is fully compatible with the QBY and QBY3 pump series, offering a variety of outer diameters and hole configurations. This ensures a perfect fit with the original pump equipment, making it an ideal choice for seamless integration.
Constructed from F46 material, the diaphragm exhibits excellent resistance to corrosion caused by acids, alkalis, and solvents. This makes it well-suited for use in demanding chemical environments where durability is crucial.
Featuring good elasticity and outstanding anti-fatigue properties, the diaphragm is resistant to cracking even under continuous reciprocating movements. This characteristic helps to significantly extend the service life of the pump.
With high dimensional accuracy and reliable sealing capabilities, the diaphragm is easy to install, allowing for quick and direct replacement of worn-out parts. This helps minimize downtime and maintenance efforts.
Designed as an industrial-grade spare part for AODD pumps, it is perfect for self-priming transfer applications and the delivery of corrosive liquids at high flow rates, ensuring efficient and safe operation.
Technical Parameters:
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Material |
F46 White |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole 92MM |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
Applications:
The chemical industry often deals with the transportation of a wide range of corrosive chemical liquids. Specialized equipment is essential to safely deliver these substances without causing damage or contamination.
In wastewater treatment, the transfer of sewage sludge slurry plays a critical role in managing and processing waste materials. Efficient pumping systems are needed to handle these thick mixtures effectively.
The electroplating industry requires the circulation and transfer of electroplating liquids to maintain precise coating processes. Reliable fluid handling ensures consistent quality in metal finishing applications.
When it comes to coatings and inks, transferring paint and dye fluids requires careful control to preserve the integrity and quality of the materials. Proper handling techniques facilitate smooth and accurate fluid movement.
Mining operations involve the delivery of slurries and corrosive pulp materials. Robust and durable equipment is necessary to withstand the harsh conditions and abrasive nature of these substances.
In the pharmaceutical industry, the transfer of corrosive raw materials is a sensitive process that demands high standards of safety and hygiene. Precise and contamination-free handling is vital to maintain product quality.
