Product Description:
The diaphragms for the QBY and QBY3 series air operated diaphragm pumps serve as essential wearable spare parts for air double diaphragm pumps. These diaphragms are designed to be compatible with a variety of pump models, including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

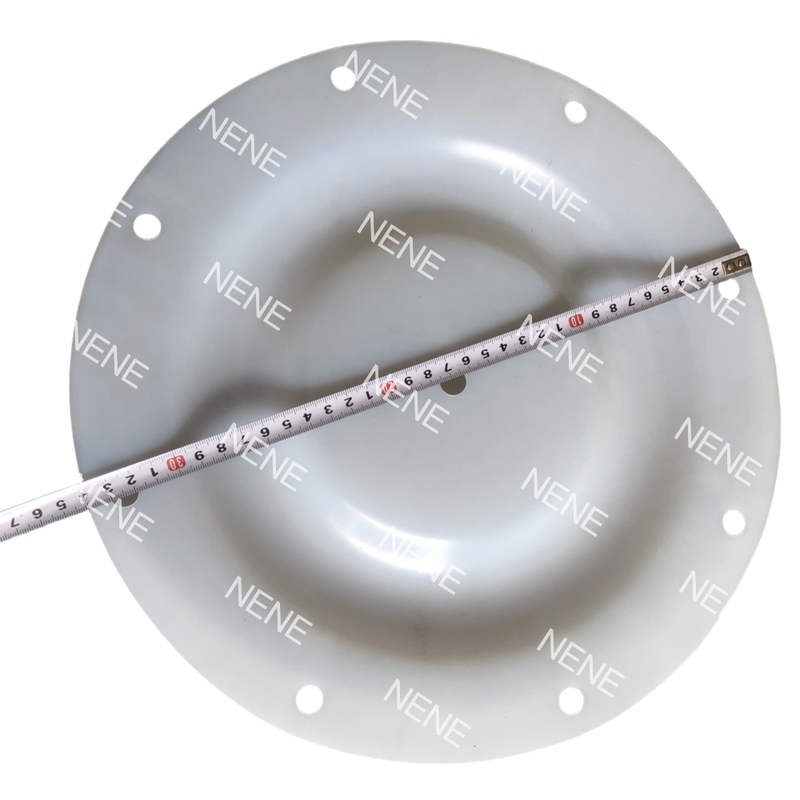

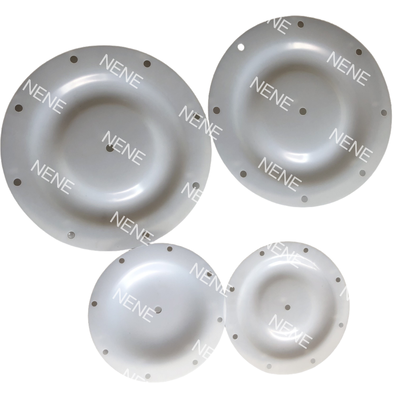

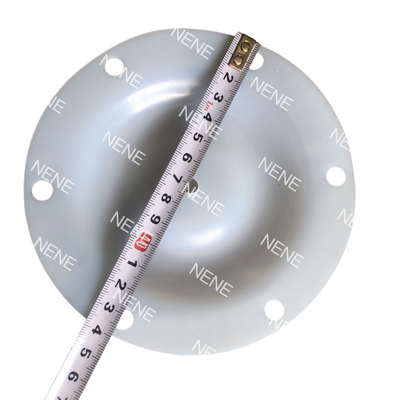

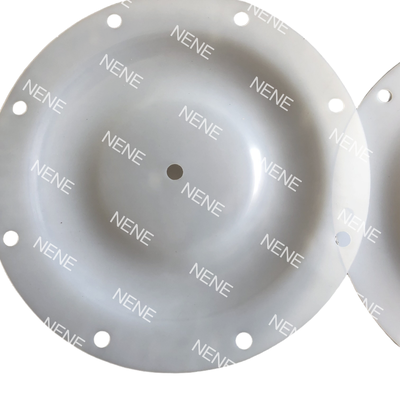

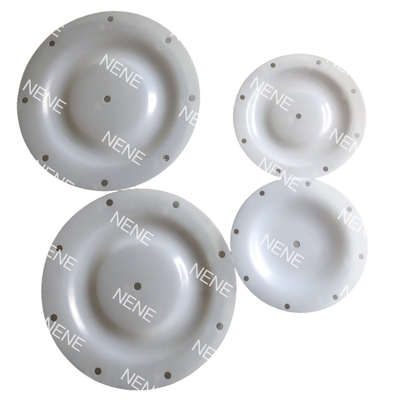

This white F46 diaphragm accommodates a broad selection of outer diameters and hole configurations to meet diverse requirements. Available outer diameter options include 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. Additionally, users can select from versions featuring 6 holes, 8 holes, 10 holes, no holes, or a center hole with a 92mm diameter, ensuring compatibility with different pump equipment.
Constructed from F46 material, the diaphragm offers outstanding resistance to corrosion caused by acids, alkalis, and other chemically aggressive fluids. This ensures a stable and extended service life. The diaphragm functions as a maintenance replacement part that is easy to install and is widely recognized as a standard spare component for air diaphragm pumps used in industries such as chemical processing, wastewater treatment, and electroplating.
Features:
The specifications are fully compatible with the QBY and QBY3 pump series. Various outer diameters and hole configurations are available to ensure an ideal fit with the original pump equipment.
Constructed from F46 material, this diaphragm offers excellent resistance to corrosion caused by acids, alkalis, and solvents. It is well-suited for demanding chemical environments where durability is essential.
Featuring good elasticity and outstanding anti-fatigue properties, the diaphragm is designed to resist cracking even under repeated reciprocating motions. This durability helps to significantly extend the service life of the pump.
With high dimensional accuracy and consistently stable sealing performance, the diaphragm is easy to install. It allows for direct replacement of worn parts, simplifying maintenance and reducing downtime.
This industrial-grade diaphragm is an ideal spare part for AODD pumps, perfectly suited for self-priming transfer and the delivery of corrosive liquids at high flow rates.
Technical Parameters:
| Product Name |
QBY K Air Operated Diaphragm Pump Diaphragm |
| Hole Type |
6 Holes, 8 Holes, 10 Holes, No Hole, Center Hole 92MM |
| Function |
Wear Replacement Spare Part For Air Diaphragm Pump |
| Outer Diameter |
125MM, 140MM, 170MM, 225MM, 230MM, 275MM, 300MM, 330MM, 340MM, 365MM, 420MM, 450MM |
| Applicable Pump |
QBY Series, QBY3 Series Air Operated Diaphragm Pump |
| Material |
F46 White |
This QBY diaphragm pump diaphragm is an essential QBY air diaphragm pump spare part designed for superior durability and performance in QBY diaphragm pump applications.
Applications:
Chemical Industry: This industry involves the transportation of various corrosive chemical liquids, ensuring safe and efficient delivery.
Wastewater Treatment: It includes the transfer of wastewater, sewage, and sludge slurry, playing a crucial role in managing and processing waste materials.
Electroplating Industry: The circulation and transfer of electroplating liquids are essential for maintaining the quality and consistency of the plating process.
Coating & Ink: This sector focuses on the movement of paint and dye fluids, facilitating smooth operations in coatings and ink production.
Mining Industry: It deals with the delivery of slurry and corrosive pulp, which are common materials in mining operations.
Pharmaceutical Industry: The transfer of corrosive raw materials is critical for the manufacturing of , requiring careful handling and precision.
