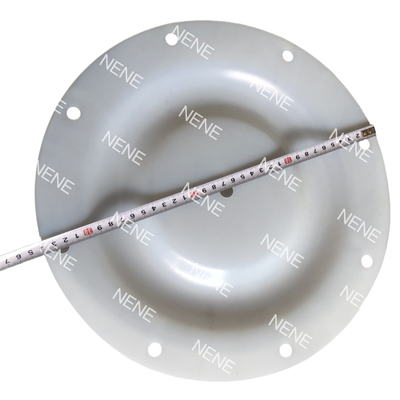

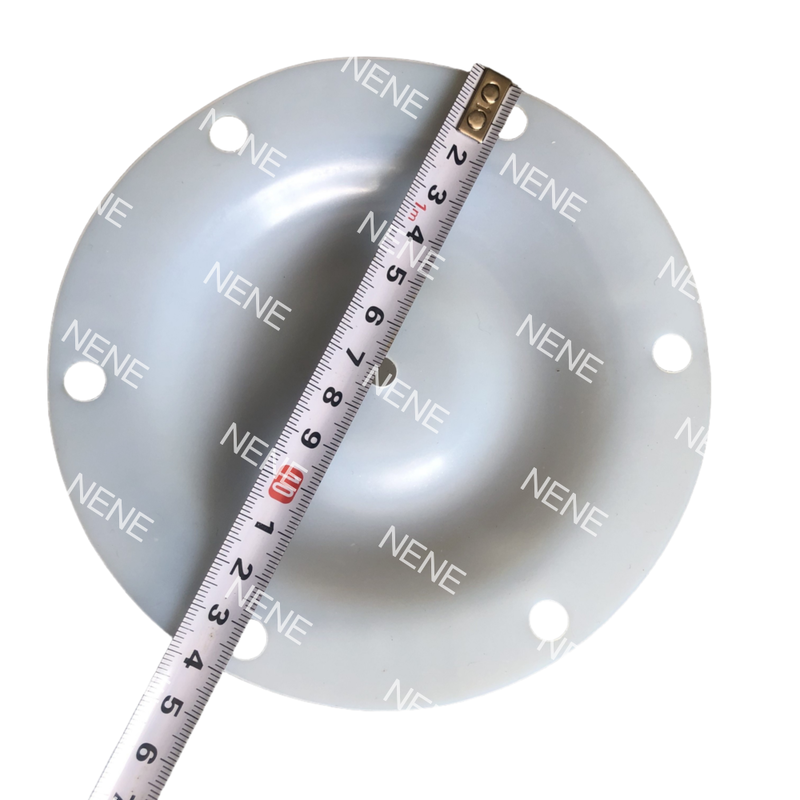

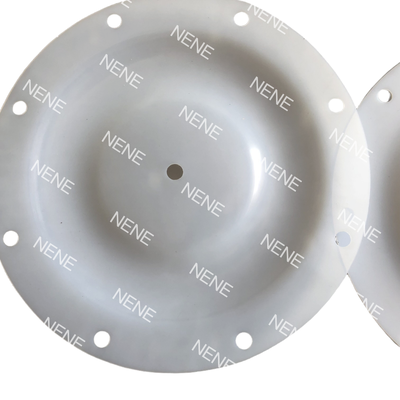

230MM Outer Diameter 8 Holes White F46 Diaphragm QBY-25 QBY-40 Replacement Part For AODD Pump Fluid Transfer

Product Description:

The diaphragms for the QBY and QBY3 series air-operated diaphragm pumps are essential wearable components designed specifically for air double diaphragm pumps. These diaphragms are compatible with a variety of pump models, including QBY-15, QBY-25, QBY-40, QBY-50, QBY-65, QBY-80, QBY-100, as well as QBY3-15, QBY3-20, QBY3-25, QBY3-32, QBY3-40, QBY3-50, QBY3-65, QBY3-80, QBY3-100, and QBY3-125.

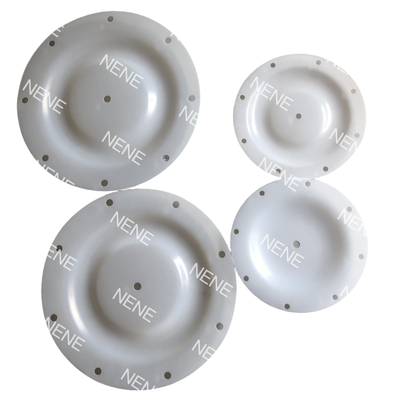

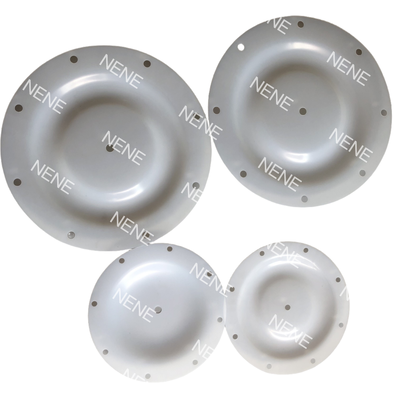

This white F46 diaphragm is designed to accommodate a wide array of outer diameter sizes and hole patterns. The available outer diameters range from 125mm to 450mm, including sizes such as 125mm, 140mm, 170mm, 225mm, 230mm, 275mm, 300mm, 330mm, 340mm, 365mm, 420mm, and 450mm. Additionally, you can select from different hole configurations including 6 holes, 8 holes, 10 holes, no holes, or a center hole with a 92mm diameter to suit various pump equipment requirements.

Manufactured from high-quality F46 material, these diaphragms offer outstanding corrosion resistance, making them highly effective for the transfer of acidic, alkaline, and chemically corrosive fluids. Their durability ensures a stable and extended service life. Easy to install and maintain, these diaphragms serve as reliable replacement parts widely used in industries such as chemical processing, wastewater treatment, and electroplating as standard spare components for air diaphragm pumps.

Features:

The specifications are fully compatible with both the QBY and QBY3 pump series. Various outer diameters and hole configurations are available to ensure an ideal fit with the original pump equipment.

Constructed from F46 material, this component offers exceptional resistance to corrosion caused by acids, alkalis, and solvents, making it well-suited for demanding chemical environments.

It features excellent elasticity and anti-fatigue properties, allowing it to withstand repeated reciprocating movements without cracking. This durability helps to extend the overall service life of the pump.

With high dimensional accuracy and reliable sealing performance, it is designed for easy installation. This makes it a convenient direct replacement for worn diaphragms in existing pumps.

This industrial-grade spare part is intended for AODD pumps and is ideal for self-priming transfer tasks as well as for handling high-flow corrosive liquid delivery applications.

Technical Parameters:

This product is an essential QBY air diaphragm pump spare parts, designed specifically to ensure optimal performance and durability. Suitable for various models, the QBY air diaphragm pump spare parts are manufactured with high-quality F46 White material. Trust these QBY air diaphragm pump spare parts for reliable wear replacement in your air diaphragm pump system.

Applications:

The chemical industry frequently requires the transportation of a wide range of corrosive chemical liquids. Specialized equipment ensures safe and efficient delivery of these substances.

In wastewater treatment, the handling and transfer of sewage sludge slurry is a critical operation. Proper slurry transfer techniques help maintain effective processing and environmental standards.

Electroplating facilities rely on the continuous circulation and transfer of electroplating solutions. This process is essential for maintaining the quality and consistency of electroplated products.

The coating and ink sector involves the movement of paint and dye fluids. Smooth transfer processes are vital for achieving high-quality finishes in various applications.

Within the mining industry, the transport of slurry and corrosive pulp materials is a common task. Reliable delivery systems are necessary to handle these abrasive and potentially damaging substances.

The pharmaceutical industry demands careful transfer of corrosive raw materials during manufacturing. Ensuring the safe handling of these materials is crucial for product integrity and worker safety.

Support and Services:

Our Pulse Valve Diaphragm product is designed to ensure optimal performance and reliability in various industrial applications. We provide comprehensive technical support to assist you with installation, maintenance, and troubleshooting to maximize the lifespan and efficiency of your diaphragm.

Our expert team is available to guide you through selecting the appropriate diaphragm material and specifications tailored to your specific operating conditions. We offer detailed documentation, including installation manuals and maintenance guides, to help you achieve the best results.

In addition to technical assistance, we provide repair and replacement services for worn or damaged diaphragms to minimize downtime and maintain system integrity. Our quality assurance processes guarantee that all replacement parts meet strict industry standards for durability and performance.

For ongoing support, we recommend regular inspection and preventive maintenance schedules, which our technical team can help you establish based on your system’s usage and environment. We are committed to delivering prompt and effective solutions to keep your pulse valve systems operating smoothly.

Packing and Shipping:

Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is placed in a sealed plastic bag to prevent contamination and moisture exposure. It is then cushioned with foam padding and securely fitted inside a sturdy cardboard box to avoid any damage caused by impact or pressure.

For shipping, we use reliable carriers that provide tracking and insurance options to guarantee safe and timely delivery. The packaging is clearly labeled with product information and handling instructions to facilitate smooth logistics and handling.

Bulk orders are palletized and wrapped to maintain stability and protection throughout the shipping process. We take every precaution to ensure that the Pulse Valve Diaphragm reaches you in perfect condition, ready for immediate installation and use.
