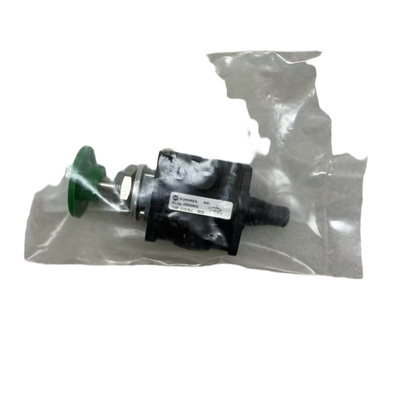

Product Description:
IMI Norgren manual valves and mechanical valves serve as essential pneumatic directional control valves, forming the core elements of pneumatic control systems. This product range encompasses a wide variety of original Norgren part numbers, featuring standard BSPP thread sizes of G1/8 and G1/4. The series includes versions that are mechanically actuated, manually operated, as well as combination valves that integrate both manual and mechanical functions.
These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for a solenoid coil. They are designed with robust anti-interference capabilities, making them ideal for on-site trigger signals used to drive cylinders and pneumatic actuators. Built to meet the original Norgren specifications, these valves provide reliable sealing, rapid response times, and extended cycle life.
Due to their dependable performance, these valves are widely utilized in various industries, including machine tool manufacturing, packaging machinery, and automation equipment. Our inventory includes all the part numbers listed, and we offer support for part verification. Additionally, we provide separate shipping options to accommodate your different port size and actuation preferences.
Features:
The valve features an original Norgren construction, ensuring a robust valve body that supports stable and repeated operations over time. This durability makes it reliable for demanding industrial applications.
It offers multiple actuation methods to suit various needs, including mechanical actuation, manual operation, and a dual manual-mechanical design. This versatility provides flexibility in different working environments.
The valve is equipped with standard G1/8 and G1/4 BSPP threads, which allow for easy and secure connections to pneumatic tubing. This standardization simplifies installation and integration into existing systems.
Designed without solenoids, the valve is highly resistant to moisture and electromagnetic interference, resulting in a low failure rate. This design ensures long-lasting, trouble-free performance even in challenging conditions.
It delivers a fast air switching response and excellent sealing capabilities, maintaining minimal air leakage during operation. These features enhance overall efficiency and reliability in pneumatic systems.
The compact and small size of the valve makes it ideal for installation in confined spaces, such as on jigs and machines where space is limited. Its design maximizes usability without compromising functionality.
Compatible with standard industrial compressed air, the valve requires simple maintenance procedures, contributing to lower operational costs and ease of use in everyday applications.
A wide range of part numbers are available, catering to different mounting options and trigger requirements. This extensive variety ensures that users can find the ideal configuration for their specific needs.
Technical Parameters:
| Product Type |
Mechanical Valve / Manual Valve / Manual & Mechanical Combined Valve |
| Working Principle |
Air Circuit Switching Via External Force, Non-solenoid |
| Media |
Filtered Dry Compressed Air |
| Brand |
IMI Norgren |
| Port Thread |
G1/8, G1/4 (Depends On Model) |
| Actuation |
Mechanical Roller Actuation / Manual Push / Manual & Mechanical Dual Actuation |
Applications:
Pneumatic Signal Control for Automation Conveyor Lines
Pneumatic signal control plays a crucial role in the operation of automation conveyor lines. It ensures precise and reliable communication between various mechanical components, enabling smooth and efficient workflow in automated systems.
This technology is widely applied in machine tools, pneumatic jigs, and positioning fixtures, where accurate control and positioning are essential for optimal performance and productivity.
Additionally, pneumatic signal control is extensively used in packaging machinery, printing equipment, and textile machinery. These industries benefit from the robust and responsive nature of pneumatic systems to maintain consistent operation and high-quality output.
For special machinery, safety signal and position sensing circuits are implemented to enhance protection and operational accuracy. These pneumatic circuits contribute to safeguarding both the equipment and personnel.
Moreover, pneumatic manipulators, along with material stop and position detection mechanisms, rely on pneumatic signaling to handle and process materials efficiently.
In the automotive sector, pneumatic systems are integral to tooling and test benches, providing reliable and precise control necessary for manufacturing and testing processes.
Support and Services:
Norgren offers comprehensive technical support and services for its range of solenoid valves to ensure optimal performance and reliability. Our expert team provides assistance with product selection, system design, installation guidance, and troubleshooting to meet your specific application needs. We also offer detailed product documentation, including datasheets, wiring diagrams, and maintenance manuals, to help you maximize the efficiency and lifespan of your solenoid valves. For any technical inquiries or support requests, our specialists are ready to provide prompt and effective solutions tailored to your operational requirements.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in an anti-static bag and cushioned with foam inserts inside a sturdy, corrugated cardboard box to prevent damage from shocks and vibrations.
For bulk orders, valves are securely arranged in custom-fit trays within larger cartons to optimize space and minimize movement. All packaging materials used are compliant with environmental standards and designed for easy recycling.
Shipping is handled by trusted carriers with options for expedited delivery, ensuring timely and safe arrival of the product. Each shipment is accompanied by detailed documentation, including a packing list and product datasheet, to facilitate smooth handling and inventory management.
Special care is taken for international shipments to comply with customs regulations and to provide tracking information for real-time shipment monitoring.
