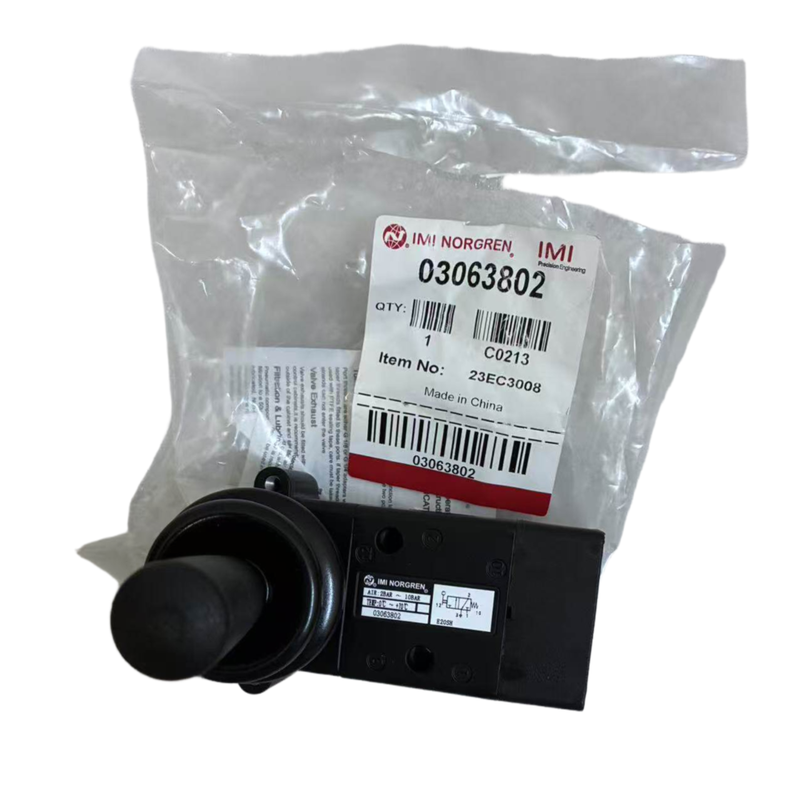

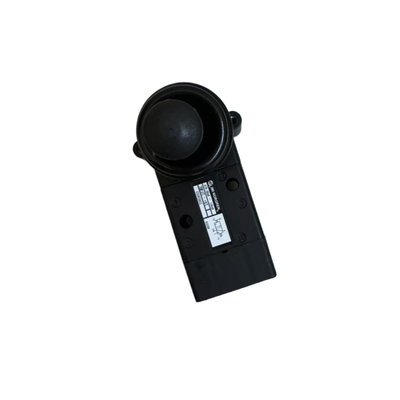

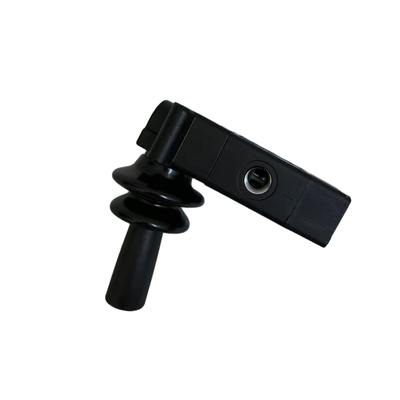

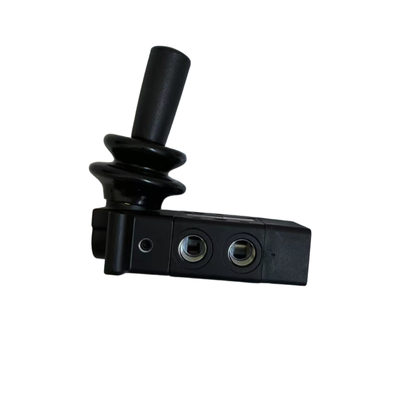

03063802 IMI Norgren Manual Mechanical Valve G1/4 BSPP Thread Pneumatic Control Valve for Automation Jigs

Product Description:

IMI Norgren manual valves and mechanical valves serve as pneumatic directional control valves, which are essential components within pneumatic control systems. This product range includes a broad selection of original Norgren part numbers, featuring standard BSPP thread sizes of G1/8 and G1/4. The series encompasses mechanically actuated valves, manually operated valves, as well as combination manual/mechanical variants.

These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for a solenoid coil. They are characterized by excellent anti-interference capabilities, making them ideal for on-site trigger signals used to control cylinders and pneumatic actuators. Engineered according to original Norgren specifications, these valves ensure reliable sealing, rapid response times, and long operational lifespans.

Due to their robust design and dependable performance, these valves are widely utilized in various industries including machine tools, packaging machinery, and automation equipment. We maintain an inventory of all listed part numbers and offer support for part verification. Additionally, we provide separate shipments to accommodate your specific port size and actuation requirements.

Features:

The valve features an original Norgren construction with a robust valve body, ensuring stable and reliable operation even under repeated use. This durable design contributes to long-term performance and dependability.

It offers multiple actuation methods, including mechanical actuation, manual operation, and a dual manual-mechanical design, providing flexibility to suit various application requirements.

The valve is equipped with standard G1/8 and G1/4 BSPP threads, which allow for easy and secure connections to pneumatic tubing. This standardization simplifies installation and integration.

Designed without a solenoid, the valve is highly resistant to moisture and electromagnetic interference, resulting in a low failure rate and enhanced reliability in challenging environments.

With fast air switching response and excellent sealing capabilities, the valve ensures minimal air leakage, contributing to efficient operation and energy savings.

Its compact and small size makes it ideal for installations within limited spaces, such as on jigs and machines where space constraints are critical.

The valve operates using standard industrial compressed air, making maintenance straightforward and cost-effective, as no specialized equipment is required.

Additionally, a wide range of part numbers are available to accommodate different mounting and trigger requirements, offering versatility for diverse industrial applications.

Technical Parameters:

Applications:

Pneumatic signal control plays a vital role in the automation of conveyor lines, ensuring efficient and precise operation. It is widely implemented in various industrial applications to enhance productivity and reliability.

This technology is commonly used in machine tools, pneumatic jigs, and positioning fixtures, providing accurate control and repeatability. Additionally, packaging machinery, printing equipment, and textile machinery all benefit from pneumatic signal solutions to optimize their processes.

Safety is a paramount concern in special machinery, and pneumatic signal control is utilized within safety signal and position sensing circuits to maintain secure and reliable operation. Moreover, pneumatic manipulators along with material stop and position detection systems contribute to effective handling and control.

In the automotive industry, pneumatic systems are integrated into tooling and test benches to facilitate precise testing and manufacturing procedures. These pneumatic setups ensure consistent performance and high-quality outcomes in automotive production environments.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team offers assistance with product selection, installation guidance, troubleshooting, and maintenance procedures. We provide detailed product documentation, including datasheets, installation manuals, and maintenance guides to support your application needs.

In addition to technical support, Norgren offers repair and refurbishment services to extend the life of your solenoid valves. Our service centers are equipped to handle diagnostics and repairs efficiently, using genuine parts to maintain product integrity. We also provide training sessions and webinars to help users better understand the operation and maintenance of our solenoid valves.

For customized solutions, Norgren’s engineering team collaborates closely with customers to develop tailored solenoid valve configurations that meet specific application requirements. We are dedicated to continuous improvement and innovation, ensuring our products comply with the latest industry standards and certifications.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is secured in a protective plastic bag and placed within a custom-fitted foam insert inside a sturdy cardboard box. This packaging protects the product from damage during transit and handling.

For shipping, the package is labeled with all necessary handling instructions and tracking information. We use reliable courier services to deliver the product promptly and safely to your designated address. International shipments comply with relevant customs regulations to avoid delays.

Upon receipt, please inspect the packaging for any signs of damage before opening. If any damage is found, contact our customer service immediately to assist with the claim process. We are committed to ensuring your complete satisfaction with the Norgren Solenoid Valve.
