Product Description:

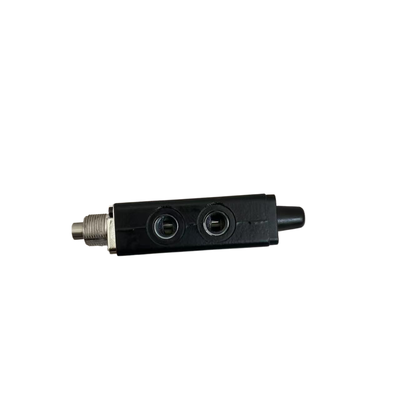

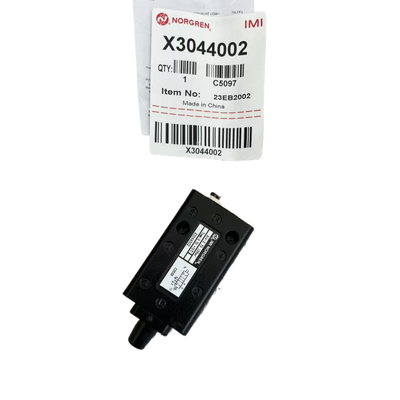

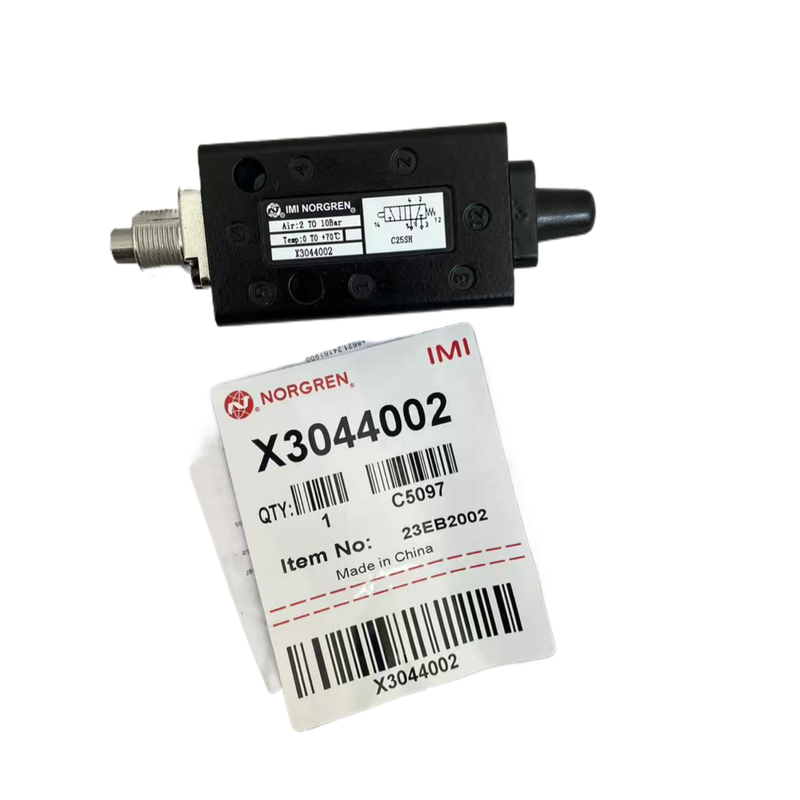

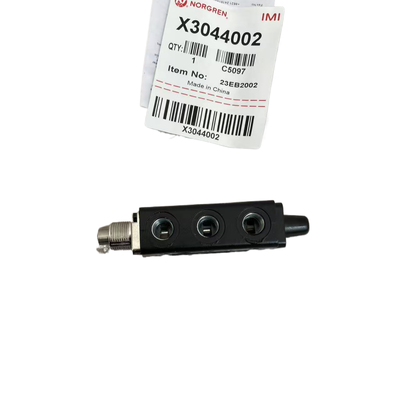

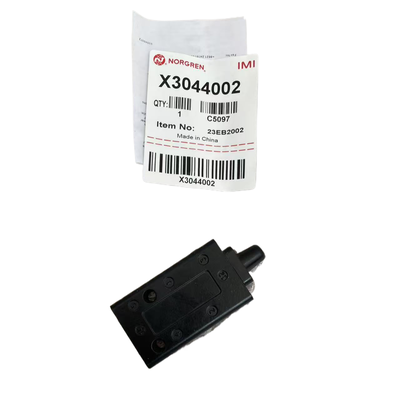

IMI Norgren manual valves and mechanical valves serve as essential pneumatic directional control valves, forming the core components of pneumatic control systems. This product series encompasses a broad selection of original Norgren part numbers, featuring standard BSPP thread options of G1/8 and G1/4. The range includes mechanically actuated versions, manually operated variants, as well as hybrid manual/mechanical valves.
These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for any solenoid coils. They are designed with robust anti-interference capabilities, making them highly suitable for on-site trigger signals that control cylinders and pneumatic actuators. Manufactured according to original Norgren specifications, these valves guarantee reliable sealing, rapid response times, and extended cycle life. As a result, they are widely utilized across machine tools, packaging machines, and various automation equipment.
We maintain a comprehensive stock of all the listed part numbers and offer support for part verification. Additionally, we provide separate shipments tailored to match your specific port size and actuation needs, ensuring a perfect fit for your application requirements.
Features:
The valve features an original Norgren construction with a durable and robust valve body, ensuring stable and reliable operation over repeated cycles. This design guarantees longevity and consistent performance in various industrial applications.
It offers multiple types of actuation to suit different needs, including mechanical actuation, manual operation, and a combined dual manual-mechanical design. This flexibility allows for easy integration into diverse working environments.
With standard G1/8 and G1/4 BSPP threading, the valve allows for straightforward connection to pneumatic tubing. This standardization helps simplify installation and maintenance processes.
Designed without solenoids, the valve resists moisture and electromagnetic interference effectively, resulting in a low failure rate and improved reliability under challenging conditions.
The device provides fast air-switching response times and excellent sealing performance, minimizing air leakage and enhancing overall efficiency during operation.
Its compact and small size makes it ideal for installation in tight spaces, such as on jigs and machines where space is limited, without compromising functionality.
The valve operates using standard industrial compressed air, making maintenance simple and cost-effective. Its versatility supports broad compatibility across various systems.
Additionally, a wide range of part numbers is available to accommodate different mounting styles and trigger requirements, offering customers tailored solutions to meet their specific needs.
Technical Parameters:
| Port Thread |
G1/8, G1/4 (Depends On Model) |
| Media |
Filtered Dry Compressed Air |
| Brand |
IMI Norgren |
| Actuation |
Mechanical Roller Actuation / Manual Push / Manual & Mechanical Dual Actuation |
| Working Principle |
Air Circuit Switching Via External Force, Non-solenoid |
| Product Type |
Mechanical Valve / Manual Valve / Manual & Mechanical Combined Valve |
Applications:
Pneumatic Signal Control for Automated Conveyor Lines
Pneumatic signal control plays a crucial role in the efficient operation of automated conveyor lines. It ensures precise coordination and smooth automation across various industrial applications.
These systems are widely used in machine tools, pneumatic jigs, and positioning fixtures, providing reliable control and accuracy in production processes. Their application extends to packaging machinery, printing equipment, and textile machinery, where consistent and precise pneumatic signaling is essential for optimal performance.
In addition, pneumatic signal control is vital for safety signaling and position sensing circuits designed specifically for special machinery. These circuits help maintain safe operation conditions while ensuring accurate positioning and control of machine components.
Moreover, pneumatic manipulators benefit from these systems by enabling effective material stopping and precise position detection. Such capabilities are fundamental in achieving high automation standards in material handling and processing.
Finally, automotive tooling and test bench pneumatic systems greatly rely on pneumatic signal control to enhance functionality and testing accuracy. This technology supports the demanding requirements of automotive manufacturing and quality control procedures.
Support and Services:
Norgren offers comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team provides assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations. We also offer customized solutions tailored to specific application requirements. Detailed product documentation, including datasheets, manuals, and CAD files, are available to support your engineering and operational needs. Norgren’s commitment to quality and innovation ensures reliable and efficient solenoid valve performance across various industrial applications.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely enclosed in a durable, cushioned box designed to prevent damage from shocks and vibrations. The packaging includes anti-static materials and moisture-resistant wrapping to maintain product integrity.
For shipping, the Norgren Solenoid Valve is handled with care and shipped via reliable carriers to ensure timely delivery. Tracking information is provided to customers for full visibility of the shipment status. Special packaging options are available upon request for bulk orders or sensitive applications.
