Product Description:

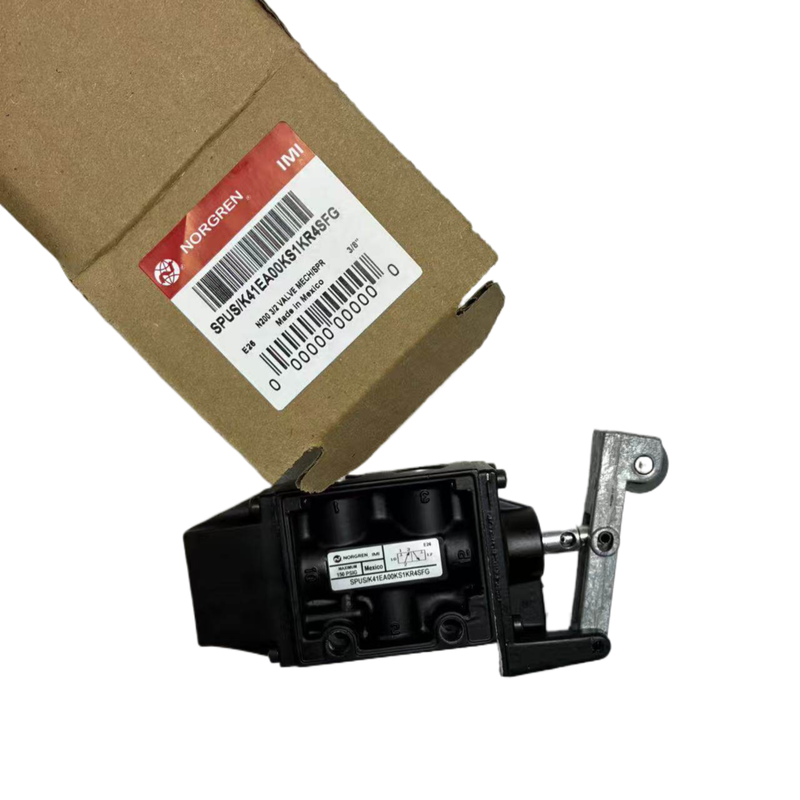

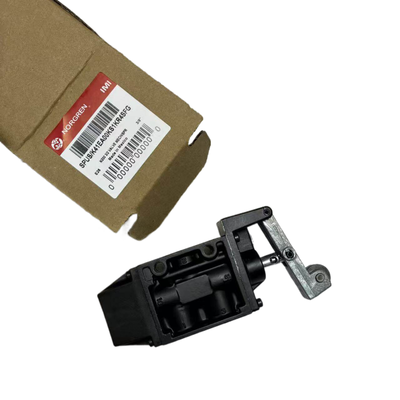

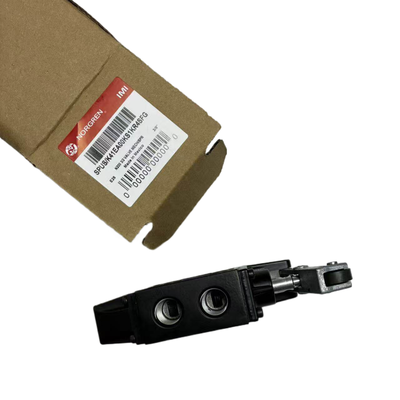

IMI Norgren manual valves and mechanical valves serve as essential pneumatic directional control valves, forming the core components in pneumatic control systems. This product range encompasses a broad selection of original Norgren part numbers, offering G1/8 and G1/4 standard BSPP thread configurations. The series includes various types such as mechanically actuated valves, manually operated valves, as well as combination manual/mechanical valves.
These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for solenoid coils. They are designed with robust anti-interference capabilities, making them perfect for on-site trigger signals that control cylinders and pneumatic actuators. Built according to the original Norgren specifications, these valves ensure reliable sealing, rapid response, and extended cycle life, which makes them widely used across machine tools, packaging machinery, and automation equipment.
We maintain inventory of all listed part numbers and provide support for part verification. Additionally, we offer separate shipment options to accommodate different port sizes and actuation requirements, ensuring you receive the exact components needed for your pneumatic applications.
Features:
The valve features an original Norgren construction, ensuring a robust valve body designed for stable and reliable repeated operations. This durable build guarantees long-lasting performance under various working conditions.
It offers multiple actuation options, including mechanical actuation, manual operation, as well as a dual manual-mechanical design. This versatility allows for flexible usage depending on the specific application requirements.
Equipped with standard G1/8 and G1/4 BSPP threads, the valve allows for easy and secure connections with pneumatic tubing. This standardization simplifies installation and integration into existing systems.
The valve adopts a solenoid-free design, which enhances its resistance to moisture and electromagnetic interference. This construction results in a low failure rate, contributing to reliable and maintenance-free operation.
With fast air switching response times and excellent sealing performance, the valve effectively minimizes air leakage. This ensures efficient pneumatic control and energy savings in industrial applications.
Its compact and small size makes it especially suitable for installation in confined spaces such as jigs and machinery, where space is often limited but reliable operation is critical.
The valve operates efficiently using standard industrial compressed air and requires only simple maintenance, making it a practical choice for various pneumatic systems.
Additionally, a wide range of part numbers is available to accommodate different mounting methods and trigger preferences, providing options tailored to diverse application needs.
Technical Parameters:
| Working Principle |
Air Circuit Switching Via External Force, Non-solenoid |
| Brand |
IMI Norgren |
| Product Type |
Mechanical Valve / Manual Valve / Manual & Mechanical Combined Valve |
| Actuation |
Mechanical Roller Actuation / Manual Push / Manual & Mechanical Dual Actuation |
| Port Thread |
G1/8, G1/4 (Depends On Model) |
| Media |
Filtered Dry Compressed Air |
Applications:
Pneumatic Signal Control for Automation Conveyor Lines
Pneumatic signal systems play a crucial role in automation conveyor lines, enabling efficient and precise control. These systems are widely utilized in various industrial applications to enhance productivity and ensure reliable operation.
One of the key applications includes machine tools, pneumatic jigs, and positioning fixtures. These components rely on pneumatic signals for accurate movement and positioning, which are essential for manufacturing processes requiring high precision.
Additionally, pneumatic signal control is extensively employed in packaging machinery, printing equipment, and textile machinery. These industries depend on pneumatic circuits to maintain fast and consistent operation, improving overall throughput and quality.
Safety is another important aspect addressed by pneumatic signal systems. They are integral to safety signal and position sensing circuits designed specifically for special machinery, ensuring safe working conditions and preventing accidents.
Furthermore, pneumatic manipulators, material stop systems, and position detection mechanisms utilize pneumatic signals to handle materials efficiently and accurately. This helps in automating tasks that require careful handling and precise positioning.
Lastly, automotive tooling and test bench pneumatic systems benefit greatly from advanced pneumatic signal control. These systems facilitate rigorous testing and assembly processes, contributing to higher standards in automotive manufacturing.
Support and Services:
Norgren offers comprehensive Product Technical Support and Services for its Solenoid Valve range to ensure optimal performance and customer satisfaction. Our expert team provides detailed product information, installation guidance, troubleshooting assistance, and maintenance tips tailored to your specific application needs. We are committed to helping you select the right solenoid valve model, configure it correctly, and integrate it seamlessly into your system.
Our services include technical documentation, CAD drawings, and application notes to support your engineering and design processes. We also provide repair and refurbishment options to extend the lifecycle of your Norgren solenoid valves, ensuring reliability and cost-effectiveness. Additionally, our training programs and workshops are designed to keep your team updated on the latest technologies and best practices in solenoid valve operation and maintenance.
Whether you require assistance with product selection, installation, or ongoing maintenance, Norgren’s dedicated support team is available to help maximize the efficiency and longevity of your solenoid valve installations.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static, moisture-resistant packaging to prevent damage from environmental factors. The product is then placed in a sturdy, corrugated cardboard box with adequate cushioning materials to absorb shocks and vibrations.
For shipping, Norgren Solenoid Valves are handled with care and shipped via reliable carriers to guarantee timely and safe delivery. Tracking information is provided to customers for real-time updates. Special instructions for fragile handling are followed to maintain the integrity of the product throughout the shipping process.
