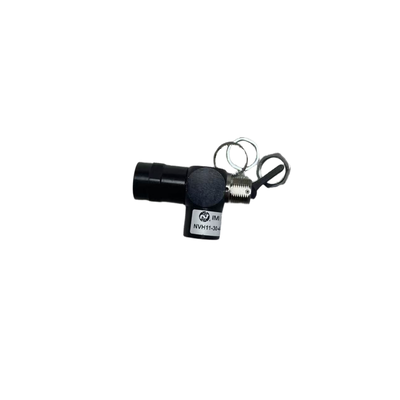

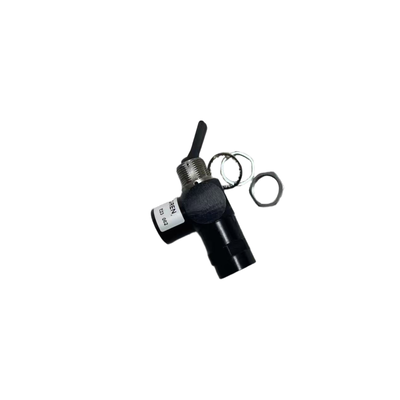

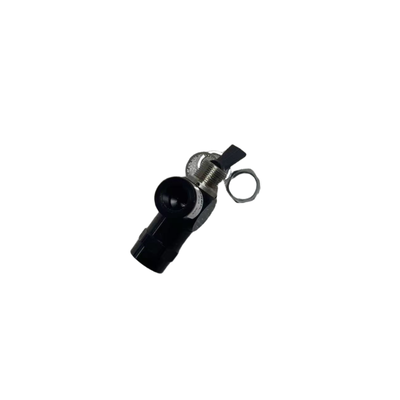

NVH11-30-44 IMI Norgren Dual Actuation Manual Mechanical Pneumatic Valve Industrial Air Switch

Product Description:

IMI Norgren manual valves and mechanical valves are essential pneumatic directional control valves that serve as core components within pneumatic control systems. This product range includes a broad selection of original Norgren part numbers and offers standard BSPP thread options of G1/8 and G1/4. The series encompasses mechanically actuated versions, manually operated models, as well as combination manual and mechanical valves.

These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for solenoid coils. They exhibit excellent anti-interference capabilities, making them ideal for on-site trigger signal applications to control cylinders and pneumatic actuators effectively. Crafted according to original Norgren specifications, these valves provide reliable sealing, rapid response times, and an extended service life.

Widely implemented in machine tools, packaging machines, and various automation equipment, these valves ensure dependable performance across many industrial sectors. Our inventory includes all listed part numbers, and we offer part verification services alongside separate shipment options to accommodate different port sizes and actuation preferences.

Features:

The valve features an original Norgren construction with a robust valve body, ensuring stable and reliable performance during repeated operations. This design enhances durability and longevity in demanding environments.

It offers multiple actuation options, including mechanical actuation, manual operation, and a combined dual manual-mechanical design. This versatility allows it to meet various application needs effectively.

The valve is equipped with standard G1/8 and G1/4 BSPP threads, making it easy to connect with pneumatic tubing. This standardization simplifies integration into existing systems.

Designed without a solenoid, the valve is highly resistant to moisture and electromagnetic interference, resulting in a low failure rate. This feature contributes to its reliability in challenging industrial conditions.

With a fast air switching response and excellent sealing capabilities, the valve minimizes air leakage. This efficiency helps maintain optimal performance and conserves compressed air.

Its compact size makes it ideal for installation in limited spaces, such as on jigs and machines, where space constraints are common. The small footprint does not compromise its functionality.

The valve operates using standard industrial compressed air, which simplifies maintenance procedures. Users can easily service and maintain the valve without specialized equipment.

Additionally, there is a wide range of part numbers available to accommodate different mounting styles and trigger requirements, providing flexibility to suit diverse application settings.

Technical Parameters:

Applications:

Pneumatic signal control plays a vital role in the automation of conveyor lines, ensuring efficient and reliable operation across various industrial applications.

These systems are extensively used in machine tools, pneumatic jigs, and positioning fixtures, providing precise control and accuracy in manufacturing processes.

Additionally, pneumatic signal control is integral to packaging machinery, printing equipment, and textile machinery, helping optimize performance and maintain smooth production workflows.

Safety is another critical aspect, where pneumatic circuits are employed for signal and position sensing in specialized machinery, enhancing operational safety and reducing risks.

Moreover, pneumatic manipulators, material stops, and position detection mechanisms benefit from these control systems to improve handling and ensure proper material placement.

In the automotive industry, tooling and test bench pneumatic systems rely on these controls for precise operation and reliable testing procedures.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team is available to assist with product selection, installation guidance, troubleshooting, and maintenance recommendations.

We offer detailed product documentation, including datasheets, installation manuals, and application notes to help you understand the specifications and proper usage of our solenoid valves. For complex applications, our engineers are ready to provide customized solutions tailored to your specific requirements.

Additionally, Norgren provides repair and refurbishment services to extend the life of your solenoid valves, along with warranty support to guarantee product reliability. Our global network ensures timely availability of spare parts and replacement units.

Whether you need technical advice, product training, or after-sales support, Norgren is dedicated to delivering responsive and professional service to keep your operations running smoothly.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is securely placed in a custom-fitted foam insert within a sturdy cardboard box to prevent any movement or damage. The packaging materials are selected to provide cushioning against shocks, vibrations, and environmental factors.

For shipping, the product is sealed with tamper-evident tape and clearly labeled with handling instructions. Shipping options include standard and expedited services, with tracking information provided to the customer. The packaging complies with all relevant international shipping regulations to ensure safe and timely delivery to your location.
