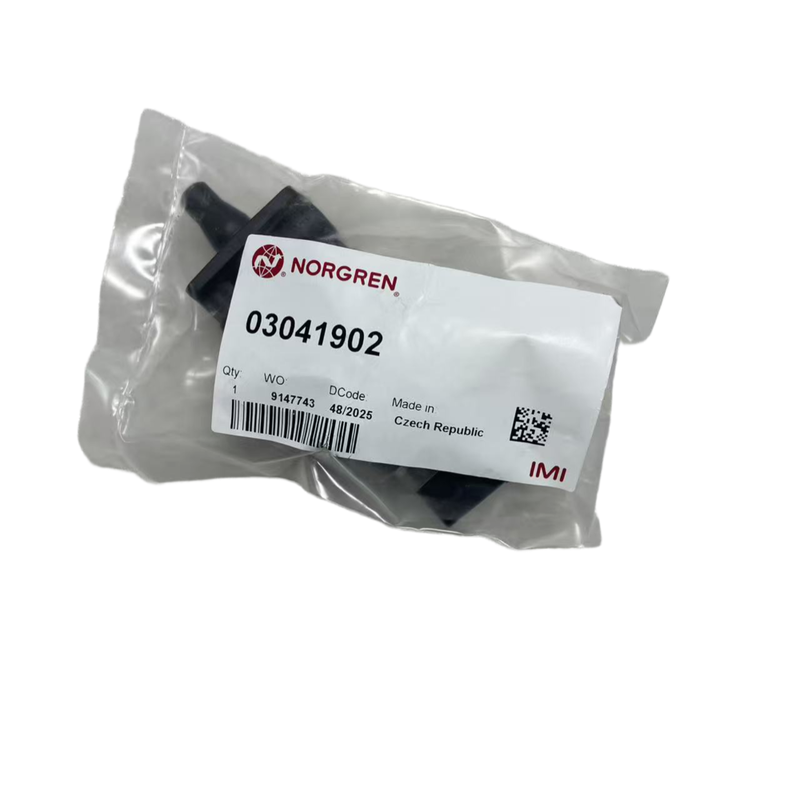

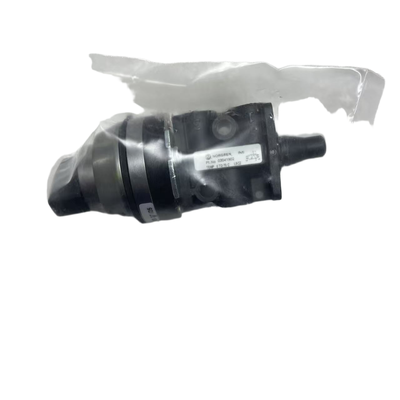

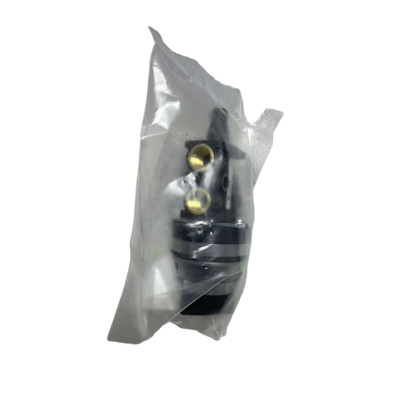

03041902 IMI Norgren Manual Mechanical Combined Valve G1/8 Thread Pneumatic Switch Valve

Product Description:

IMI Norgren manual valves and mechanical valves are essential pneumatic directional control valves, serving as key components in pneumatic control systems. This product series encompasses a broad range of original Norgren part numbers, featuring G1/8 and G1/4 standard BSPP thread options. The selection includes mechanically actuated models, manually operated versions, as well as combination manual/mechanical valves.

These valves operate by switching air circuits through either mechanical contact or manual actuation, eliminating the need for a solenoid coil. They are designed with robust anti-interference capabilities, making them ideal for on-site trigger signals used to drive cylinders and pneumatic actuators.

Built in accordance with the original Norgren specifications, these valves provide reliable sealing, rapid response times, and a long operational cycle life. They are widely utilized across various industries, including machine tools, packaging machinery, and automation equipment.

We keep all listed part numbers in stock and offer support for part verification. Additionally, we provide separate shipment options to accommodate different port size and actuation requirements, ensuring a tailored solution for your pneumatic system needs.

Features:

The valve features an original Norgren construction, boasting a robust valve body that ensures stable and reliable performance during repeated operations.

It offers multiple actuation options, including mechanical actuation, manual operation, as well as a combined dual manual-mechanical design to suit various application needs.

Equipped with standard G1/8 and G1/4 BSPP threads, the valve allows for easy and secure connections with pneumatic tubing, simplifying installation.

Designed without a solenoid, this valve is highly resistant to moisture and electromagnetic interference, resulting in a lower failure rate and enhanced durability.

The product delivers fast air switching response and excellent sealing capabilities, minimizing air leakage and optimizing efficiency.

Its compact size makes it ideal for installation in confined spaces, such as jigs and machines where space is limited.

Compatible with standard industrial compressed air systems, the valve ensures straightforward maintenance and reliable performance.

A wide range of part numbers is available, accommodating different mounting styles and trigger requirements to meet diverse operational demands.

Technical Parameters:

Applications:

Pneumatic signal control plays a crucial role in the automation of conveyor lines, ensuring efficient and precise operation. This technology is widely implemented across various industrial applications to enhance performance and reliability.

One common use of pneumatic signal control is in machine tools, pneumatic jigs, and positioning fixtures. These components rely on accurate pneumatic signals to maintain precision and streamline the manufacturing process.

Additionally, packaging machinery, printing equipment, and textile machinery benefit significantly from pneumatic systems. The signal controls in these machines enable smooth operation and synchronization between different parts of the production line.

Safety is paramount in industrial environments. Pneumatic signal control is often employed in safety signal and position sensing circuits for specialized machinery, ensuring that operations are carried out safely and any hazards are promptly detected.

Moreover, pneumatic manipulators, material stop mechanisms, and position detection systems use these signals to handle materials accurately and efficiently. This capability is essential for maintaining workflow and reducing errors.

Lastly, the automotive industry utilizes pneumatic systems extensively in tooling and test bench applications. Pneumatic signal control supports the automation and testing processes, contributing to the production of high-quality automotive components.

Support and Services:

Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team offers expert guidance on product selection, installation, operation, and maintenance. We provide detailed product documentation, including datasheets, installation manuals, and troubleshooting guides to assist users at every stage.

In addition to technical advice, Norgren offers repair and maintenance services to maximize the lifespan and reliability of our solenoid valves. Our service centers are equipped with advanced diagnostic tools and staffed by trained technicians to handle repairs efficiently. We also provide training programs and seminars to help customers better understand product functionalities and best practices.

For any technical inquiries or service requests related to Norgren Solenoid Valves, customers are encouraged to utilize our online resources or contact our dedicated support team through the appropriate channels. Our goal is to ensure that every Norgren solenoid valve operates safely, reliably, and efficiently in your applications.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in an anti-static bag and cushioned with foam inserts inside a sturdy cardboard box. The packaging materials are designed to prevent damage from shocks, vibrations, and moisture.

For shipping, the product is placed inside a reinforced outer carton with clear labeling that includes handling instructions and product details. Multiple units are securely packed together on pallets with shrink wrap to prevent movement during transportation. Norgren ensures timely and safe delivery through reliable carriers, with tracking information provided to customers.
