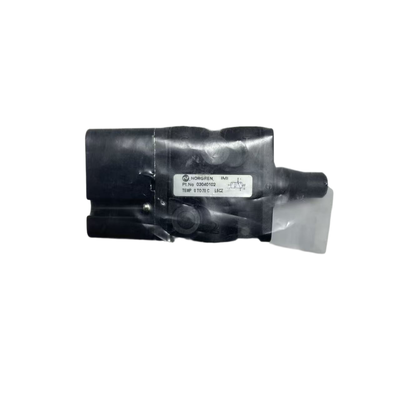

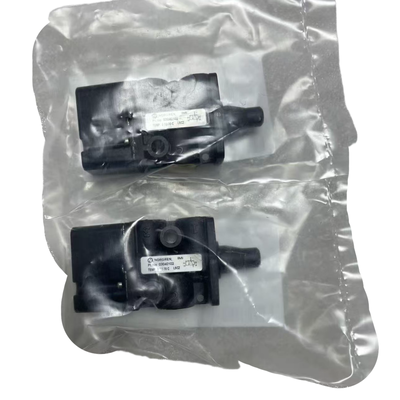

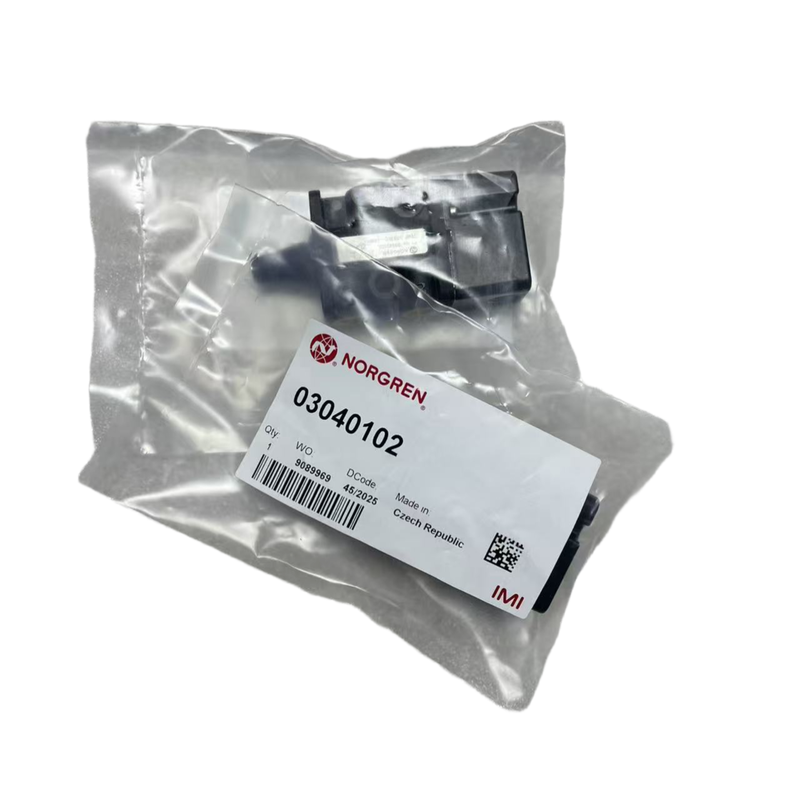

Product Description:
IMI Norgren manual valves and mechanical valves are key pneumatic directional control components essential for pneumatic control systems. This product range includes a comprehensive selection of original Norgren part numbers, offering standard BSPP thread sizes of G1/8 and G1/4. The series features various configurations such as mechanically actuated valves, manually operated valves, as well as combination manual/mechanical valve models.
These valves operate by switching air circuits through mechanical contact or manual actuation, eliminating the need for a solenoid coil. They are designed to provide excellent resistance to interference, making them ideal for on-site trigger signals that activate cylinders and pneumatic actuators. Built according to the original Norgren specifications, these valves ensure reliable sealing, rapid response times, and an extended operational cycle life.
Widely utilized across machine tools, packaging machinery, and automation equipment, these valves offer dependable performance in demanding industrial environments. Our inventory includes all listed part numbers, and we provide support for part verification as well as separate shipping options. This flexibility allows us to accommodate your specific requirements regarding port size and valve actuation types.
Features:
The valve features an original Norgren construction, incorporating a robust valve body designed to ensure stable and reliable repeated operation over time.
It offers versatility with multiple actuation options, including mechanical actuation, manual operation, and a combined dual manual-mechanical design to suit various application needs.
Equipped with standard G1/8 and G1/4 BSPP threads, the valve allows for easy and secure connection to pneumatic tubing, facilitating straightforward installation.
The design eliminates the need for solenoids, making it highly resistant to moisture and electromagnetic interference, which contributes to a low failure rate and enhanced durability.
With rapid air switching response and excellent sealing capabilities, the valve ensures minimal air leakage, improving overall system efficiency.
Its compact and small size makes it ideal for installation in confined spaces, such as on jigs and machines, where space is limited.
The valve operates using standard industrial compressed air and requires simple maintenance, making it a practical choice for various industrial environments.
A comprehensive range of part numbers is available, catering to different mounting configurations and trigger requirements, providing flexibility for diverse application needs.
Technical Parameters:
| Media |
Filtered Dry Compressed Air |
| Product Type |
Mechanical Valve / Manual Valve / Manual & Mechanical Combined Valve |
| Brand |
IMI Norgren |
| Working Principle |
Air Circuit Switching Via External Force, Non-solenoid |
| Actuation |
Mechanical Roller Actuation / Manual Push / Manual & Mechanical Dual Actuation |
| Port Thread |
G1/8, G1/4 (Depends On Model) |
Applications:
Pneumatic Signal Control for Automated Conveyor Systems
Pneumatic signal control plays a crucial role in the operation of automated conveyor lines, ensuring efficient and precise workflows across various industries. These control systems help manage the movement and positioning of items on the conveyor, enhancing overall productivity.
They are widely implemented in machine tools, pneumatic jigs, and positioning fixtures, where accurate control and repeatability are essential. Additionally, these pneumatic solutions are fundamental in packaging machinery, printing equipment, and textile machinery, providing reliable and consistent performance.
Moreover, pneumatic signal control systems are integral to safety signal and position sensing circuits, particularly in specialized machinery. These systems contribute to maintaining safe operating conditions by detecting positions and signaling necessary actions promptly.
Applications extend to pneumatic manipulators, material stopping mechanisms, and position detection devices, all of which benefit from the responsiveness and precision of pneumatic control. Furthermore, the automotive industry utilizes these pneumatic systems extensively in tooling and test bench environments to ensure optimal functionality and testing accuracy.
Support and Services:
Norgren is committed to providing comprehensive technical support and services for our Solenoid Valve products to ensure optimal performance and customer satisfaction. Our technical support team offers expert assistance in product selection, application advice, installation guidance, and troubleshooting to help you maximize the efficiency and reliability of your solenoid valve systems.
We provide detailed product documentation, including datasheets, installation manuals, and maintenance guides to support your operational needs. Additionally, Norgren offers training programs and webinars to enhance your understanding of solenoid valve technology and best practices.
For maintenance and repair, Norgren supplies genuine replacement parts and offers refurbishment services to extend the lifecycle of your solenoid valves. Our global service network ensures timely support and availability of parts wherever you are located.
By choosing Norgren solenoid valves, you benefit from our commitment to quality, innovation, and customer-centric service, backed by industry-leading expertise and support resources.
Packing and Shipping:
The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static packaging and cushioned within a sturdy cardboard box to prevent damage from shocks and vibrations.
For shipping, the product is placed in appropriately sized cartons with additional padding materials as needed. All packages are clearly labeled with product information, handling instructions, and shipping details to ensure safe and efficient delivery.
Norgren Solenoid Valves are shipped via reliable carriers with tracking options available to provide customers with real-time updates on their order status. Special care is taken to comply with international shipping regulations for hazardous materials, when applicable.
