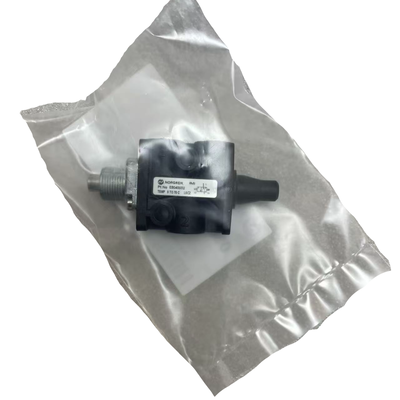

03040002 IMI Norgren G1/8 Mechanical Valve Pneumatic Directional Control Valve for Automated Assembly

Product Description:

IMI Norgren manual valves and mechanical valves are essential pneumatic directional control valves used as core components in pneumatic control systems. This product line encompasses a broad selection of original Norgren part numbers, available with G1/8 and G1/4 standard BSPP thread options. The series includes various types such as mechanically actuated valves, manually operated valves, and hybrid manual/mechanical models.

These valves operate by switching air circuits through either mechanical contact or manual actuation, eliminating the need for a solenoid coil. They possess excellent anti-interference capabilities, making them well-suited for on-site trigger signals that control cylinders and pneumatic actuators. Built according to original Norgren specifications, these valves ensure reliable sealing, quick response times, and extended cycle life. They are commonly utilized in machine tools, packaging machinery, and automation equipment.

We maintain a comprehensive stock of all listed part numbers and provide support for part verification. Additionally, we offer separate shipments to accommodate your diverse port size and actuation preferences, ensuring a perfect match for your specific application requirements.

Features:

The valve features the original Norgren construction, which ensures a robust valve body designed for stable and reliable repeated operation. This sturdy build guarantees long-lasting performance even under demanding conditions.

It offers multiple actuation options to suit various needs, including mechanical actuation, manual operation, and a combined dual manual-mechanical design, providing versatility in application.

The valve is equipped with standard G1/8 and G1/4 BSPP threads, facilitating easy and secure connections with pneumatic tubing systems, enhancing installation convenience.

Designed without a solenoid, the valve demonstrates excellent resistance to moisture and electromagnetic interference, resulting in a low failure rate and improved durability in different environments.

It boasts a fast air switching response and excellent sealing capabilities, which contribute to minimal air leakage, ensuring efficient and reliable pneumatic control.

The compact and small-size design makes this valve ideal for installation in limited spaces, such as on jigs and machinery, where space is at a premium.

Compatible with standard industrial compressed air, the valve requires simple maintenance, making it practical and cost-effective for everyday industrial use.

A wide range of part numbers is available, accommodating various mounting configurations and trigger requirements to meet diverse application demands.

Technical Parameters:

Applications:

Pneumatic signal control plays a crucial role in the operation of automated conveyor lines, ensuring smooth and efficient material handling throughout production processes.

This technology is widely used in various industrial applications including machine tools, pneumatic jigs, and precise positioning fixtures. These components rely on pneumatic signals for accurate and reliable performance.

Moreover, pneumatic signal control is an essential part of packaging machinery, printing equipment, and textile machines, contributing significantly to operational efficiency and product quality.

Safety is another critical area where pneumatic systems are invaluable. They are extensively used in safety signal and position sensing circuits designed for specialized machinery, helping to protect both equipment and operators.

Applications also extend to pneumatic manipulators, material stopping mechanisms, and position detection systems, which facilitate precise control and automation in manufacturing environments.

In the automotive industry, pneumatic systems are integral to tooling and test bench operations, providing dependable signal control necessary for testing and assembly processes.

Support and Services:

Norgren offers comprehensive technical support and services for its Solenoid Valve products to ensure optimal performance and customer satisfaction. Our expert team provides guidance on product selection, installation, maintenance, and troubleshooting to help you maximize the efficiency and lifespan of your solenoid valves.

We provide detailed product documentation, including datasheets, installation manuals, and application guides, to assist you in understanding the specifications and correct usage of each valve. Additionally, Norgren's technical support team is available to offer personalized assistance for complex applications and custom solutions.

Our services include product repair and refurbishment, calibration, and testing to maintain the reliability of your solenoid valves throughout their operational life. We also offer training sessions and workshops to keep your technical staff updated on the latest technologies and best practices related to solenoid valve applications.

By choosing Norgren, you benefit from a global network of support and a commitment to quality that ensures your solenoid valve systems operate efficiently and safely in a wide range of industrial environments.

Packing and Shipping:

The Norgren Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in anti-static, moisture-resistant packaging to prevent damage from environmental factors. The product is then placed in a sturdy, custom-designed box with adequate cushioning materials to absorb shocks and vibrations.

For shipping, the packages are securely sealed and labeled with handling instructions and product information. We use reliable courier services to deliver the Norgren Solenoid Valve promptly and safely to your specified location. Tracking information is provided to keep you updated throughout the shipping process.
