Product Details:
|
| Valve Body Material: | SS316 | Response Time: | 20 Ms Or Less (at 0.5 MPa) |
|---|---|---|---|
| Impact/Vibration Resistance: | 150/50 M/s2 | Type Of Actuation: | Direct Operated Type 2 Position Single Solenoid |
| Ambient And Fluid Temperature: | –10 To 50°C (No Freezing) | Fluid Media: | Air |
| High Light: | Electromagnetic Control Valve SS316,Vibration Resistance Electromagnetic Control Valve |
||
The VT307 Series is an updated range of direct-acting solenoid valves by SMC. They provide many advantages compared with existing models, such as low power consumption. In addition, they have two other versions, namely vacuum and energy-saving. Moreover, voltage surge suppression is also available.
For further details and technical specifications, head to the SMC website. There you can learn more about the VT307 Series and how it can help improve the performance of your system.

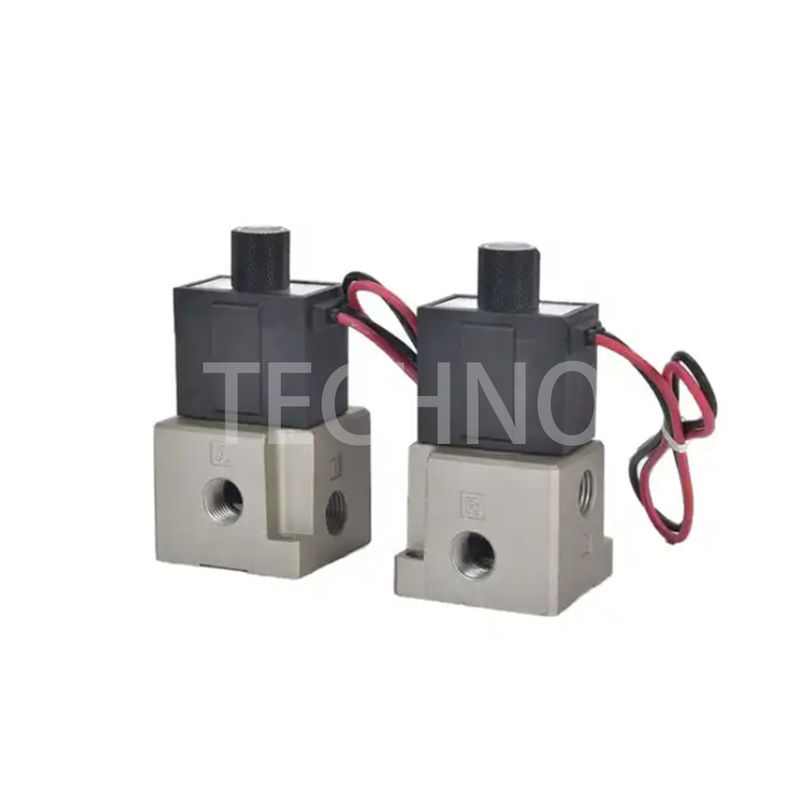

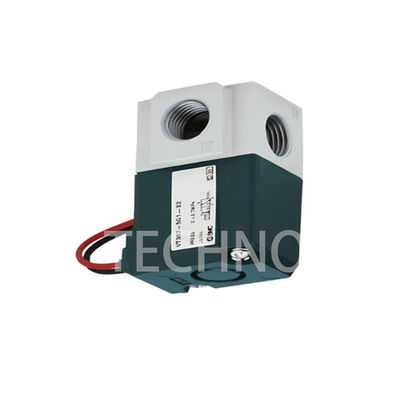

This 3-Port Solenoid Valve is a single valve, designed with various functions. The rubber seal material is HNBR, which is very resistant to low concentrations of ozone. It is direct operated poppet type, designed for continuous-duty use. Not to mention, it has an energy-saving type and a vacuum specification type available as well. Furthermore, its mounting dimensions are interchangeable with existing product, even more convenient for you.
This product is suitable for a wide range of applications, including:
Technical Parameters:
| Standard Specifications | |
| Type of actuation | Direct operated type 2 position single solenoid |
| Fluid | Air |
| Operating pressure range | 0 to 1 MPa (High-pressure type), 0 to 0.7 MPa (Standard type) |
| Ambient and fluid temperature | –10 to 50°C (No freezing) |
| Response time Note 1) | 20 ms or less (at 0.5 MPa) |
| Max. operating frequency | 10 Hz |
| Lubrication | Not required (Use turbine oil Class 1 ISO VG32, if lubricated.) |
| Manual override | Non-locking push type |
| Mounting orientation | Unrestricted |
| Impact/Vibration resistance Note 2) | 150/50 m/s^{2} |
| Enclosure | Dustproof |
SMC provides their customers with technical support and service for their solenoid valves. Our technical staff are knowledgeable in all aspects of solenoid valve design and operation, and can help you identify the right valve for your application. We also provide installation and maintenance assistance to ensure your valve is up and running as quickly as possible. Our comprehensive support also includes troubleshooting services in the event that something goes wrong.
We are committed to providing our customers with the highest quality service and support. Our experienced staff are available to answer any questions you may have and to provide you with the best solutions for your solenoid valve needs. If you have any issues or concerns, please do not hesitate to contact us.
SMC Solenoid Valves are packaged and shipped in accordance with the following standards:
A1: The brand of the SMC Solenoid Valves is SMC.
A2: The model number of the SMC Solenoid Valves is VT307V-5G1-01.
A3: The SMC Solenoid Valves is made in China.
A4: Yes, the SMC Solenoid Valves has a CE certification.
A5: The minimum order quantity for the SMC Solenoid Valves is 1.
