Name: CE VT307-3G1-01 SMC Pneumatic Solenoid Valve Electron Magnetic
Brand: YW DKE TRADING COMPANY
SKU: VT307-3G1-01
Availability: InStock

Home Products SMC Solenoid Valves

CE VT307-3G1-01 SMC Pneumatic Solenoid Valve Electron Magnetic

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	VT307-3G1-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Fluid Media:	Air	Impact/Vibration Resistance:	150/50 M/s2
Valve Body Material:	SS316	Response Time:	20 Ms Or Less (at 0.5 MPa)
Type Of Actuation:	Direct Operated Type 2 Position Single Solenoid	Ambient And Fluid Temperature:	–10 To 50°C (No Freezing)
Highlight:	CE SMC Pneumatic Solenoid Valve , Electron Magnetic SMC Solenoid Valve , VT307-3G1-01 SMC Solenoid Valve

SMC VT307-3G1-01

Electron Magnetic Valves Genuine And Genuine SS316

Product Description:

SMC recently released their new VT307 series direct-acting solenoid valves, as an update to the EVT307 range. The VT307 series offer reduced power consumption when compared to the existing models, as well as being available with a vacuum or energy-saving version. Voltage surge protection is also an available feature of this new valve. A wide range of applications are supported, such as medical, automotive, and industrial production.

Features:

Solenoid Valve

This single valve features a range of functions, making it highly versatile. It has been made with low concentration ozone resistant rubber seals made from HNBR. This type of solenoid valve is direct operated, poppet type and is suitable for continuous duty, as well as offering energy-saving and vacuum specification types.

The mounting dimensions are interchangeable with existing products and provide a reliable and secure fit. This allows the solenoid valve to be a perfect substitute for other brands whilst offering a wide range of features and shelf life.

Applications:

This product offers an excellent solution for a wide array of applications, including blow-off valves, pressure release valves, single-acting cylinder drives, divider valves, and double-acting cylinder drives.

It is suitable for a wide variety of systems, from low- to high-pressure applications, and is renowned for its reliability and durability.

The product is designed to be user-friendly, and its versatility means that it can be operated in either manual or automated configurations, depending on your specific needs.

It also has a robust and reliable construction, making it perfect for a range of usage scenarios.

Technical Parameters:

Standard Specifications
Type of actuation	Direct operated type 2 position single solenoid
Fluid	Air
Operating pressure range	0 to 1 MPa (High-pressure type), 0 to 0.7 MPa (Standard type)
Ambient and fluid temperature	–10 to 50°C (No freezing)
Response time Note 1)	20 ms or less (at 0.5 MPa)
Max. operating frequency	10 Hz
Lubrication	Not required (Use turbine oil Class 1 ISO VG32, if lubricated.)
Manual override	Non-locking push type
Mounting orientation	Unrestricted
Impact/Vibration resistance Note 2)	150/50 m/s^{2}
Enclosure	Dustproof
∗ Semi-standard Note 1) Based on dynamic performance test, JIS B 8374-1981. (Coil temperature: 20°C, at rated voltage, without surge voltage suppressor) Note 2) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial direction and at the right angles to the main valve and armature in both energized and de-energized states every once for each condition. (Values at the initial period) Vibration resistance: No malfunction occurred in a one-sweep test between 45 and 1000 Hz. Test was performed at both energized and de-energized states in the axial direction and at the right angles to the main valve and armature. (Values at the initial period)

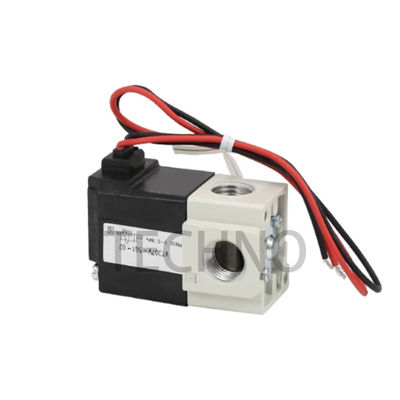

CE VT307-3G1-01 SMC Pneumatic Solenoid Valve Electron Magnetic 0

CE VT307-3G1-01 SMC Pneumatic Solenoid Valve Electron Magnetic 1

Support and Services:

SMC Solenoid Valves Technical Support & Service

SMC Solenoid Valves are reliable, high-performance valves that are designed to meet the needs of a wide range of industrial applications. Our technical support and service teams are available to answer any questions you may have about the operation, installation, or maintenance of your SMC Solenoid Valves.

Our technical support staff is knowledgeable in all aspects of SMC Solenoid Valves, and can provide you with detailed information about the product, including installation and maintenance instructions. We also offer troubleshooting and diagnostic services to help you identify and resolve any problems you may be having with your SMC Solenoid Valves.

Our service team is on hand to assist you with any repairs or replacements that may be necessary. We can provide on-site repairs and maintenance, as well as provide parts and accessories for your SMC Solenoid Valves.

If you have any questions or require any assistance with your SMC Solenoid Valves, please do not hesitate to contact us. Our knowledgeable staff is always available to answer any questions you may have.
