Product Details:
|
| Impact/Vibration Resistance: | 150/50 M/s2 | Fluid Media: | Air |
|---|---|---|---|
| Type Of Actuation: | Direct Operated Type 2 Position Single Solenoid | Response Time: | 20 Ms Or Less (at 0.5 MPa) |
| Ambient And Fluid Temperature: | –10 To 50°C (No Freezing) | Valve Body Material: | SS316 |
| High Light: | Custom Air Solenoid Valve,Custom SMC Solenoid Valves,Air SMC Solenoid Valves |
||

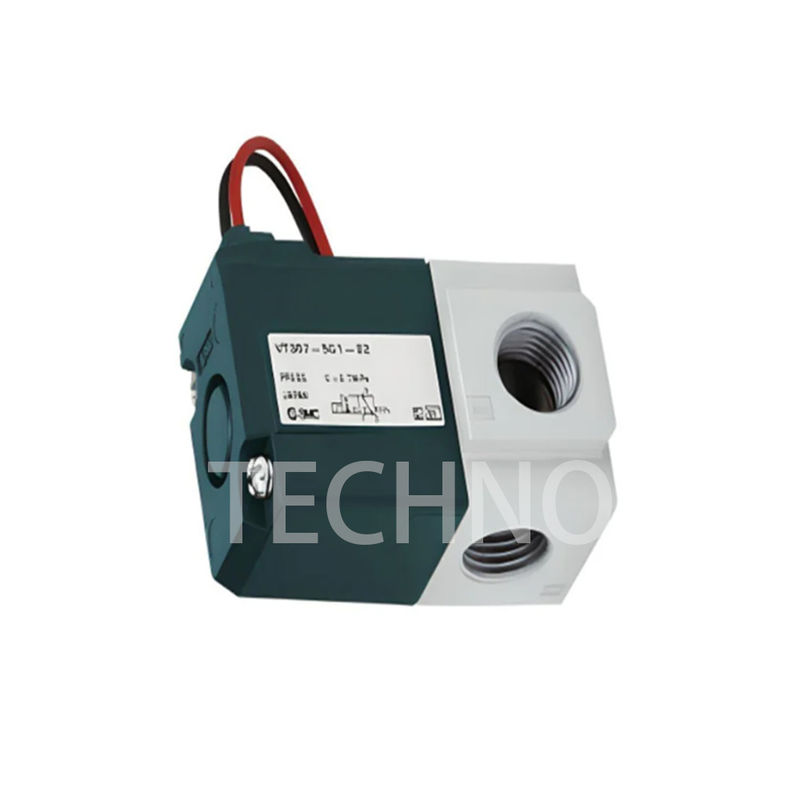

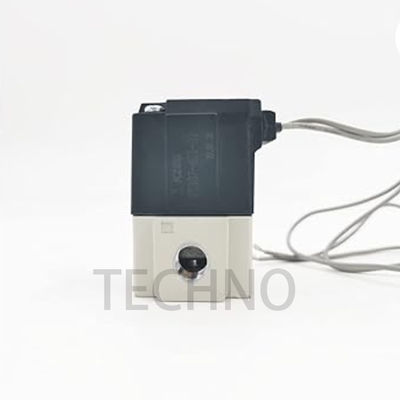

SMC VT307-3G1-02
Electron Magnetic Valve Energy-Saving –10 To 50°C
SMC recently released a new model of the EVT307 valve range, the VT307 series. It is a direct-acting solenoid valve which is designed to offer an improved performance when compared to existing models. This new product range provides dramatically lower power consumption while also featuring voltage surge suppression.
Moreover, the VT307 series is available in both vacuum and energy-saving versions, making them suitable for a wide range of applications with diverse requirements. The valves have a wide voltage range, as they work with AC or DC voltage of 24V, 120V, or 230V.
This 3 port solenoid valve has a single valve with multiple functions. It is low concentration ozone-resistant, with the rubber seal material being HNBR for the main valve. The mounting dimensions are interchangeable with existing product, and it is designed for continuous duty and energy-saving. It also has a vacuum specification type.
This item is suitable for a variety of applications, such as blow-off valves, pressure release valves, single acting cylinder drives, divider valves, and double acting cylinder drives. All of these applications are ready for use.
Technical Parameters:
| Standard Specifications | ||||
| Electrical entry | Grommet, DIN terminal | |||
| Coil rated voltage (V) | AC (50/60 Hz) | 100, 200, 110∗, 220∗, 240∗ | ||
| DC | 24, 12∗ | |||
| Allowable voltage fluctuation | –15 to +10% of rated voltage | |||
| Apparent powerNote 3) Note 4) | AC | Inrush | 12.7 VA (50 Hz), 10.7 VA (60 Hz) | |
| Holding | 7.6 VA (50 Hz), 5.4 VA (60 Hz) | |||
| Power consumptionNote 3) Note 4) | DC | Without indicator light: 4 W, With indicator light: 4.2 W | ||
| Light/Surge voltage suppressor | (DIN terminal type only) |
AC | Varistor, LED | ||
| DC | Diode, LED | |||
| Note 3) At rated voltage Note 4) The value is different for continuous duty type (VT307E), and energy-saving type (VT307Y/W). |
||||
SMC provides comprehensive technical support and service for solenoid valves. Our team of experts are on hand to answer any questions you may have and provide assistance with installation, maintenance and troubleshooting.
We offer a range of support options, including:
For more information on our solenoid valves technical support and service, please contact us.
SMC Solenoid Valves packaging and shipping:
SMC Solenoid Valves are shipped in sturdy cardboard boxes with foam inserts for protection. The boxes are clearly labeled with the product name and the SMC logo. The boxes are secured with tape and plastic wrap to ensure the valves are securely packaged. The boxes are then placed in a larger carton for shipping. The cartons are designed to provide protection against damage during transportation.
The SMC Solenoid Valves are shipped via a reliable carrier such as FedEx or UPS. All shipments are tracked and insured to ensure safe delivery of the valves.
A1: The brand name of the solenoid valves is SMC.
A2: The model number of the solenoid valves is VT307-3G1-02.
A3: The place of origin of the solenoid valves is China.
A4: The solenoid valves have CE certification.
A5: The minimum order quantity of the solenoid valves is 1.
