Product Description:

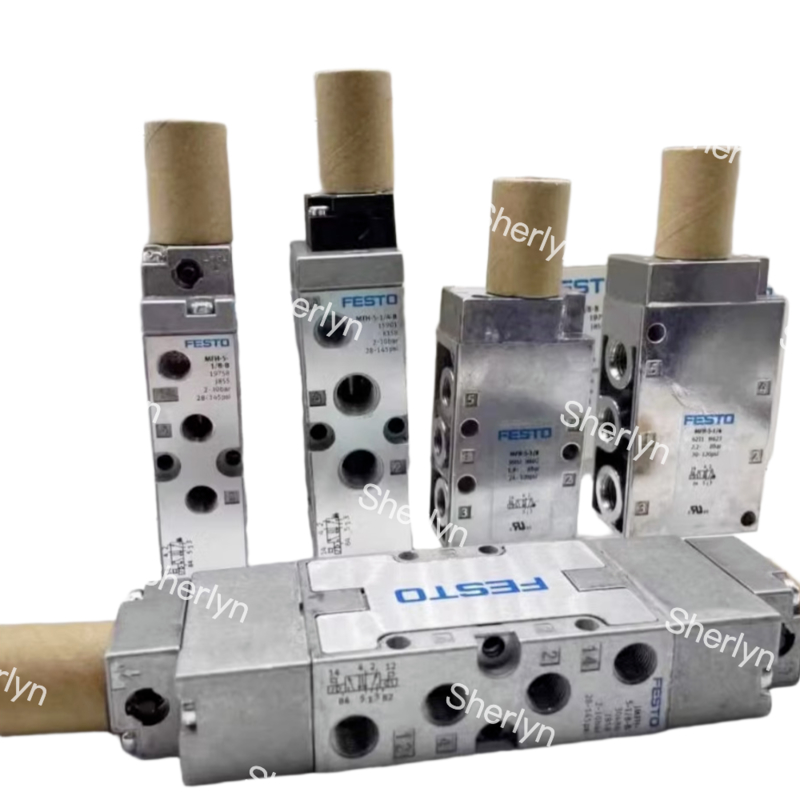

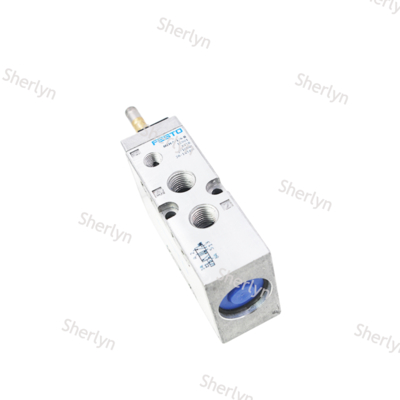

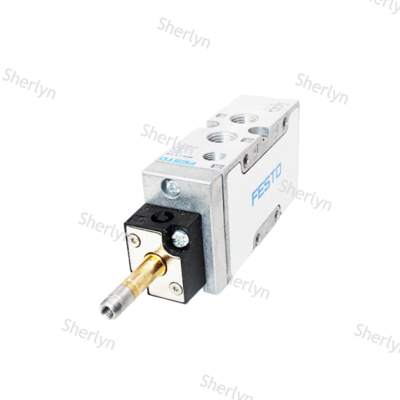

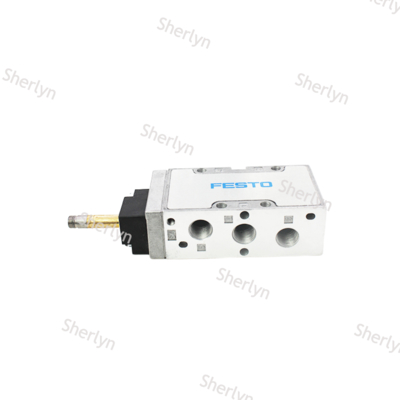

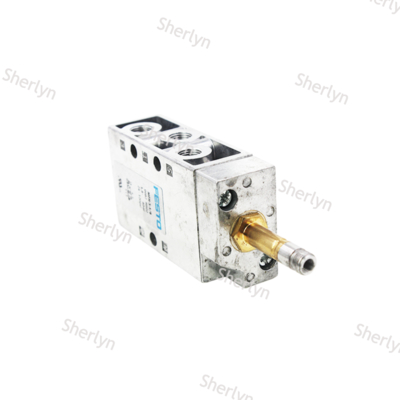

The core attributes of FESTO Tiger Valve MFH series are as follows:
Valve function: There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).
Main parameters:
- Interface and flow rate: G1/8 (500 l/min), G1/4 (800 l/min or 1300-1600 l/min), G1/2 (3700 l/min), G3/4 (7500 l/min).
- Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
- Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
- Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
- Protection level: IP65.
- Response time: Fast, usually in milliseconds (e.g. switch time < 40ms).
- Temperature range: The medium temperature is usually -10 ° C to +60 ° C, and the ambient temperature is usually -5 ° C to +40 ° C.
Applications:
Automotive Manufacturing Industry: This industry involves the use of pneumatic device control on welding and final assembly production lines, ensuring smooth and efficient operations.
Packaging Machinery: In this sector, pneumatic control is essential for tasks such as material gripping, precise positioning, and filling processes, contributing to the overall efficiency of packaging operations.
Material Handling and Automated Assembly Line: Pneumatic control systems play a crucial role in controlling actuators such as cylinders and vacuum suction cups, enabling the seamless operation of material handling and automated assembly processes.
Other Industrial Fields: There are various other industrial sectors that rely on high-quality pneumatic control for optimal performance, demonstrating the versatility and importance of pneumatic systems in modern industrial applications.
Support and Services:
Festo offers comprehensive technical support and services for its Solenoid Valve product. Our team of experts is available to assist with product installation, troubleshooting, and maintenance. We provide online resources, such as user manuals and technical documentation, to help customers make the most of their Solenoid Valve. Additionally, Festo offers training programs to ensure that users are well-equipped to operate and maintain the product effectively.
Packing and Shipping:
Product Packaging:
The Festo Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe transportation. The valve is placed in a custom-fit foam insert to prevent any damage during shipping. The packaging is designed to protect the valve from dust, moisture, and impacts.
Shipping:
Once the Festo Solenoid Valve is securely packaged, it is shipped using a reliable courier service. The package is labeled with the necessary shipping information, including the recipient's address and contact details. Customers can track their shipment using the provided tracking number to know the status of their delivery.
