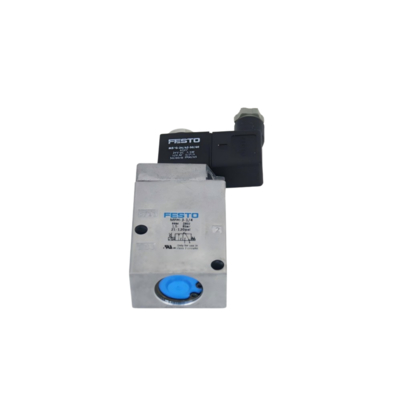

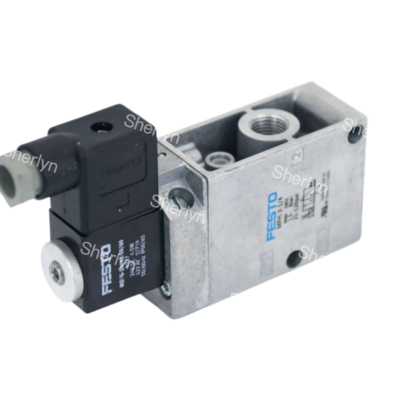

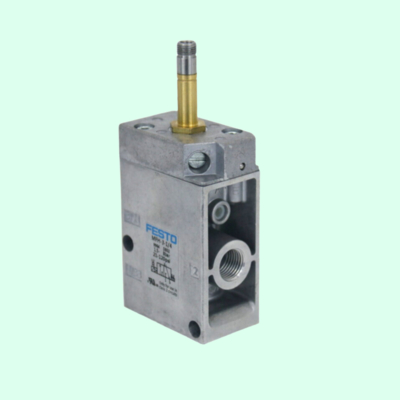

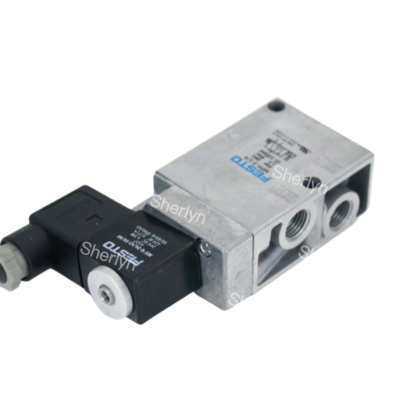

FESTO Solenoid Valve 9964 MFH-3-1/4 Mechanical Valve, 3 Port, Closed, Electrical, G 1/4

Product Description:

The core attributes of FESTO Tiger Valve MFH series are as follows:

Valve function:

There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:

• Interface and flow rate:
  • G1/8 (500 l/min)
  • G1/4 (800 l/min or 1300-1600 l/min16)
  • G1/2 (3700 l/min)
  • G3/4 (7500 l/min)
• Work pressure:
  • Commonly 0-8 bar or 2-10 bar
  • Some models (such as MFH-3- * - S) support -0.95 to 10 bar
• Pilot mode:
  • Internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar)
• Design structure:
  • Sturdy lifting valve seat (seat valve)
  • Sealing material is usually NBR
  • The valve body is made of die-cast aluminum
• Protection level: IP65
• Response time: Fast, usually in milliseconds (e.g. switch time <40ms)
• Temperature range:
  • The medium temperature is usually -10 ° C to+60 ° C
  • The ambient temperature is usually -5 ° C to+40 ° C

Applications:

Automotive Manufacturing Industry: In the automotive manufacturing industry, pneumatic device control plays a crucial role in welding and final assembly production lines.

Packaging Machinery: It is responsible for controlling various actions like material gripping, positioning, and filling in the packaging machinery sector.

Material Handling and Automated Assembly Line: In this sector, pneumatic control is used to manage actuators like cylinders and vacuum suction cups to ensure efficient material handling and automated assembly processes.

Other Industrial Fields: There are several other industrial fields that demand high-quality pneumatic control for their operations to run smoothly and effectively.

• Valve function3/2, closed, monostable
• Actuation typeElectrical
• Width30.5 mm
• Standard nominal flow rate800 l/min
• Pneumatic working portG1/4
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0.15 MPa ... 0.8 MPa
• Operating pressure1.5 bar ... 8 bar
• Structural designPlate seat
• Reset methodMechanical spring
