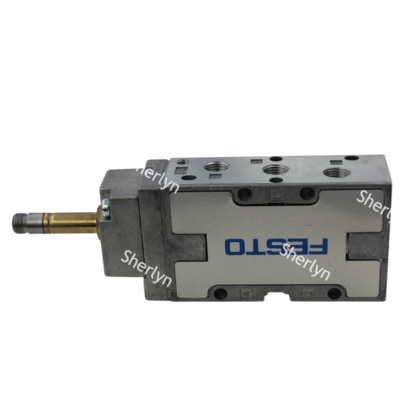

FESTO MFH-5-1/8-B Solenoid Valve, 5/2 Monostable Mec Spr, Int Pilot G/8

Product Description:

Valve function: The FESTO Tiger Valve MFH series offers mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:

• Interface and flow rate:
  • G1/8 (500 l/min)
  • G1/4 (800 l/min or 1300-1600 l/min)
  • G1/2 (3700 l/min)
  • G3/4 (7500 l/min)
• Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
• Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
• Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
• Protection level: IP65.
• Response time: Fast, usually in milliseconds (e.g. switch time < 40ms).
• Temperature range: The medium temperature is usually -10°C to +60°C, and the ambient temperature is usually -5°C to +40°C.

Applications:

Automotive manufacturing industry: such as pneumatic device control on welding and final assembly production lines.
Packaging machinery: controls actions such as material gripping, positioning, and filling.
Material handling and automated assembly line: control actuators such as cylinders and vacuum suction cups.
Other industrial fields that require high-quality pneumatic control
