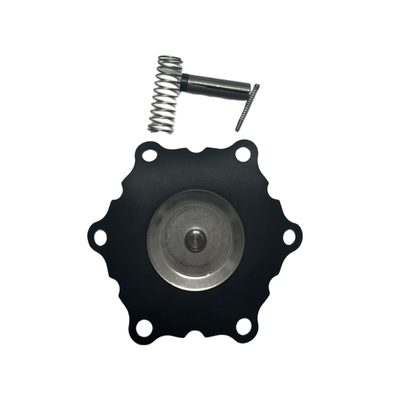

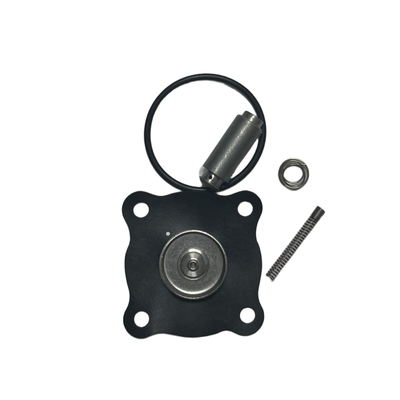

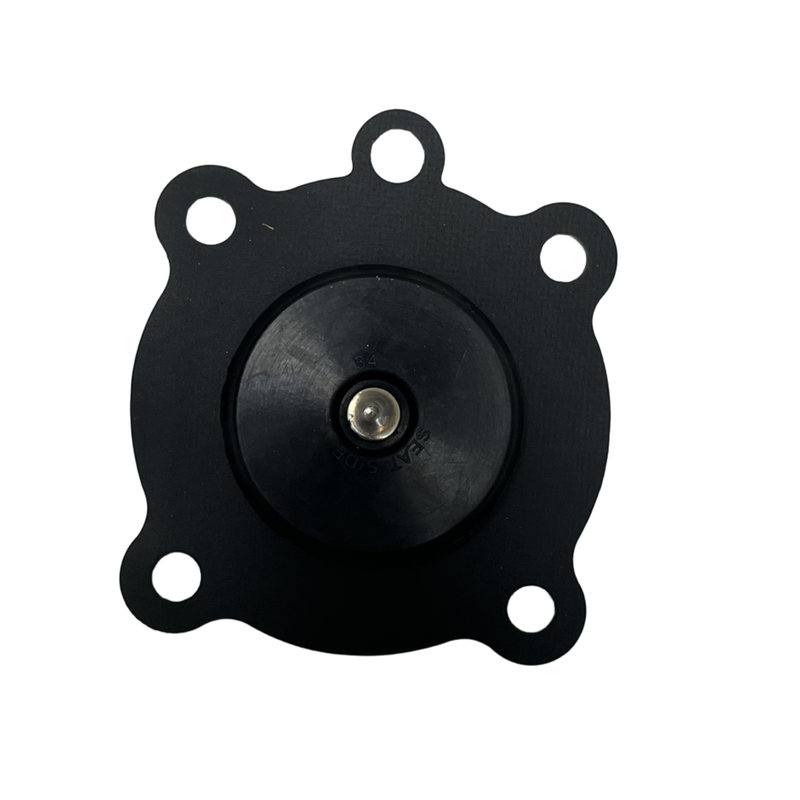

Industrial Solenoid Valve Service Seal Part K302375 3/4 Inch Dimension Rubber Diaphragm Designed For ASCO SCE210D095 Widely Used In Multiple General Processing Industries

Product Description:

The ASCO 210 Series represents a versatile collection of economical, high-flow solenoid valves designed specifically for applications involving liquids, corrosive substances, and air or inert gases. These pilot-operated valves utilize a hung diaphragm design and come in both normally closed (NC) and normally open (NO) options, ensuring adaptability to various industrial needs.

Featuring port sizes ranging from 3/8″ to 2-1/2″ and capable of handling a maximum operating pressure of up to 9 bar, the 210 Series guarantees dependable operation across a diverse array of industrial processes. This flexibility makes them suitable for a wide range of environments requiring precise fluid control.

The valves are constructed with either brass or stainless steel bodies, providing compatibility with numerous media such as air, water, inert gases, light oils, and corrosive fluids. Standard sealing is accomplished with NBR material, while options including FKM (fluororubber) and EPDM seals are available to enhance chemical resistance and temperature tolerance.

Operational efficiency is maintained with a minimum required differential pressure of approximately 0.35 bar. Additionally, the 210 Series boasts rapid response times, achieving opening and closing durations as swift as 120 milliseconds in larger valve models.

To support ongoing maintenance and maximize valve longevity, a comprehensive selection of original repair kits, coils, and diaphragm assemblies is offered. Among these are coil assemblies like K302271, K302372, K302373, K302375, and K302376, along with diaphragm repair kits such as K302379 and K302383, ensuring that users have access to reliable replacement components when needed.

Features:

This valve features a pilot-operated hung diaphragm design that ensures reliable high-flow performance while maintaining minimal pressure loss. This design enhances operational efficiency and consistency in various applications.

Offering a cost-effective solution, the valve is suitable for handling liquids, corrosive substances, as well as air and inert gases. Its design balances affordability with high flow capacity, making it ideal for diverse fluid control needs.

Available in both normally closed and normally open 2/2-way configurations, the valve provides options for fail-safe or fail-open operation. This flexibility allows for easy integration into various fail-safe systems.

The valve body is offered in brass and stainless steel, catering to different media compatibilities. These material options enhance durability and broaden the range of applications, including those involving corrosive environments.

Multiple seal materials are available, including NBR as the standard option, along with FKM (fluororubber) and EPDM. These seals provide reliable sealing performance across a wide range of chemical compatibilities.

Designed to accommodate various system requirements, the valve ports range from 3/8″ up to 2-1/2″. This wide selection ensures compatibility with numerous pipeline sizes and flow demands.

The valve offers rapid operation, with opening and closing times as fast as 120 milliseconds for the 1-1/2″ models. This fast response capability is ideal for applications requiring quick and precise flow control.

Suitable for a variety of media, the valve can handle air, water, inert gases, light oils, corrosive fluids, and more. This versatility makes it a reliable choice across a wide spectrum of industrial fluid control scenarios.

Designed to minimize internal leakage, the valve ensures long service life with dependable sealing performance. This feature reduces maintenance frequency and enhances overall system reliability.

With an IP65 rating, the valve is well-suited for demanding industrial environments where dust and water ingress protection is essential. This rugged protection enhances operational durability.

The valve boasts a compact and lightweight design combined with robust internal components. This construction contributes to an extended service life while facilitating easy installation in space-constrained environments.

Technical Parameters:

Applications:

Industrial water management plays a crucial role in various sectors including car wash and laundry services. The control systems used in these applications ensure efficient management of water resources, enhancing the performance of car wash equipment and laundry machines while maintaining general water regulation.

Air compressors and pumps are essential components in pneumatic systems, where precise control of air and inert gases is required. These systems are designed to handle the regulation and flow of compressed air, contributing to the smooth operation of various industrial processes.

In the field of chemical processing, accurate metering and shut-off mechanisms are vital for handling corrosive and aggressive fluids. These control systems ensure safety and reliability, preventing leaks and managing the flow of hazardous chemicals effectively.

Water and wastewater treatment facilities rely heavily on dosing and flow control technologies. These systems facilitate the treatment process by regulating the input of chemicals and managing the flow of water, thus ensuring compliance with environmental standards.

Commercial equipment, such as boilers and heat exchangers, often operate with hot water temperatures up to 95°C. Specialized control solutions are implemented to maintain optimal thermal conditions, ensuring safety, energy efficiency, and consistent performance in these applications.

Gas burners, used in both commercial and industrial settings, require precise high-pressure control to ensure efficient combustion. Control systems developed for gas burners manage the flow and pressure of gases, contributing to safer and more efficient heating processes.

The handling of liquid petroleum gas (LPG), including propane, is critical in applications such as grain dryers and space heaters. Specialized control technologies help manage the safe and efficient use of LPG, optimizing performance while minimizing risks.

Cryogenic applications demand advanced control solutions for managing extremely low-temperature liquids such as liquid nitrogen, liquid argon, and liquid oxygen. Low-temperature models are designed to cope with these conditions, ensuring precise and reliable fluid management.

Finally, general industrial automation benefits from versatile fluid control systems that span a wide range of manufacturing and processing industries. These adaptable solutions provide efficient control of various fluids, supporting automation efforts and improving overall operational efficiency.

Support and Services:

Our Pulse Valve Diaphragm product is designed to provide reliable and efficient performance in various industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips to ensure optimal operation of your pulse valve diaphragm.

We offer comprehensive services including product inspection, replacement parts, and customized solutions tailored to meet your specific requirements. Our support extends to helping you select the right diaphragm material and size to enhance durability and compatibility with your system.

In addition, we provide detailed technical documentation and user manuals to help you understand the product specifications and operational procedures. Our commitment is to deliver prompt and effective support to minimize downtime and maximize productivity.

For ongoing maintenance, we recommend regular inspection of the diaphragm for wear and tear, and timely replacement to prevent system failures. Our service team can also provide on-site assistance and training to ensure your staff is well-equipped to handle routine upkeep.

Trust our technical support and services to keep your Pulse Valve Diaphragm functioning at peak performance and to extend the lifespan of your equipment.

Packing and Shipping:

Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first wrapped in a protective, anti-static material to prevent any damage or contamination. It is then placed in a sturdy, custom-fitted box that minimizes movement and absorbs shocks.

The packaging is labeled clearly with product information, handling instructions, and safety warnings to ensure proper care throughout the shipping process. We use high-quality, environmentally friendly packaging materials to support sustainability.

For shipping, we partner with reliable carriers to provide timely and secure delivery. All shipments are tracked and insured to guarantee that your Pulse Valve Diaphragm arrives safely and on schedule. Special handling options are available for bulk orders or expedited shipping requests.
