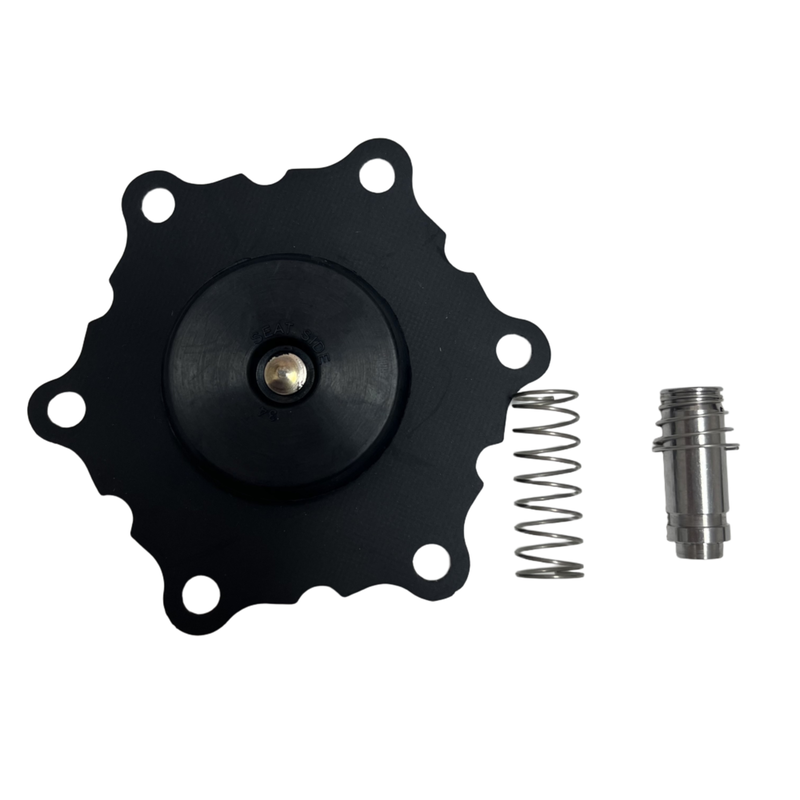

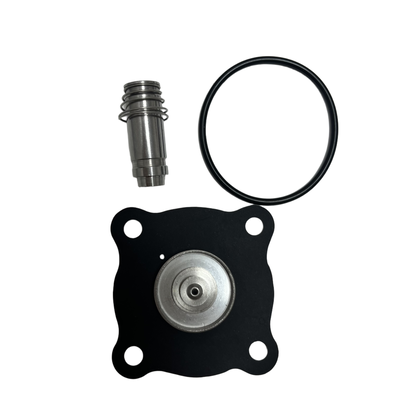

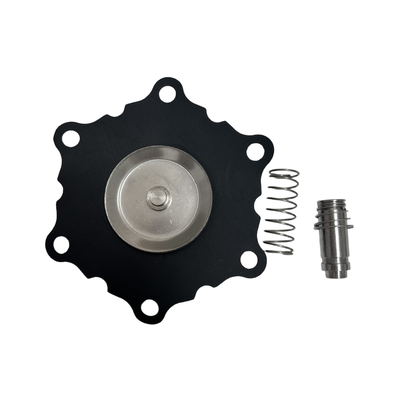

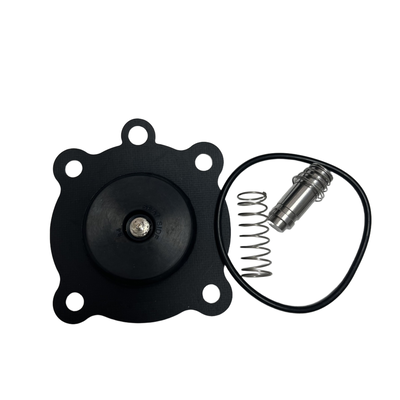

1/2 Inch Solenoid Valve Service Diaphragm K302373 Compatible With ASCO SCE210D002 Wear Resistant Rubber Membrane For General Liquid And Gas Medium Working Conditions

Product Description:

The ASCO 210 Series presents a complete range of cost-effective, high-flow solenoid valves specifically designed for applications involving liquids, corrosive substances, and air or inert gases. These valves utilize a pilot-operated mechanism paired with a hung diaphragm design, and they come in both normally closed (NC) and normally open (NO) configurations to suit various operational requirements.

With port sizes spanning from 3/8″ up to 2-1/2″ and a maximum operating pressure reaching 9 bar, the 210 Series provides dependable and versatile performance across a broad array of industrial uses. This wide range of options makes the series adaptable to numerous system demands.

Constructed with either brass or stainless steel bodies, the valves ensure compatibility with diverse media such as air, water, inert gases, light oils, and corrosive fluids. The standard sealing material is NBR, while alternatives like FKM (fluororubber) and EPDM are also available to offer improved resistance against chemicals and temperature variations.

These valves require a minimum differential pressure of about 0.35 bar for proper operation. They are engineered for quick responsiveness, featuring opening and closing times that can be as fast as 120 milliseconds in the larger valve models, ensuring efficient control in time-sensitive processes.

To facilitate maintenance and prolong the operational life of the valves, a full selection of original repair kits, coils, and diaphragm assemblies is offered. Notable coil assemblies include models K302271, K302372, K302373, K302375, and K302376, while diaphragm repair kits such as K302379 and K302383 are also available.

Features:

This valve features a pilot-operated hung diaphragm design, ensuring dependable high-flow performance while maintaining minimal pressure loss. Such a design enhances efficiency and reliability during operation.

Offering a cost-effective solution, this valve is suitable for handling liquids, corrosive substances, as well as air and inert gas applications. Its design balances affordability with performance effectively.

Available in both normally closed and normally open configurations, the valve caters to fail-safe or fail-open operational requirements, providing flexibility depending on system safety needs.

To accommodate various media, the valve bodies come in brass and stainless steel options. This variety ensures compatibility with a wide range of fluids and gases.

Sealing materials include standard NBR, FKM (fluororubber), and EPDM, allowing customization based on the chemical properties of the service media.

Port sizes span from 3/8 inch up to 2-1/2 inches, enabling integration into diverse systems with varying flow requirements.

Particularly for 1-1/2 inch models, the valve offers rapid opening and closing times as low as 120 milliseconds, enhancing control precision.

The valve is compatible with a wide array of media, including air, water, inert gases, light oils, corrosive fluids, and more, making it versatile across many industrial applications.

Designed for longevity, it features reliable sealing that minimizes internal leakage, contributing to extended service life and operational reliability.

With an IP65 rating, this valve is well-suited for harsh industrial environments, offering protection against dust ingress and water jets.

Its lightweight yet robust internal construction ensures durability and long-term performance in demanding applications.

Technical Parameters:

Applications:

Industrial water control plays a vital role in various applications such as car wash equipment, laundry machines, and overall water management systems. These solutions ensure efficient and reliable regulation of water flow tailored to diverse industrial needs.

Air compressors and pumps require precise control of air and inert gases within pneumatic systems. Effective management of these gases is essential for maintaining operational safety and performance in numerous industrial processes.

In chemical processing industries, it is critical to meter and shut off corrosive and aggressive fluids accurately. Specialized control systems are designed to handle these challenging substances safely and efficiently.

Water and wastewater treatment facilities depend on accurate dosing and flow control mechanisms to maintain environmental standards. These controls are fundamental to ensuring the effective purification and recycling of water.

Commercial equipment, including boilers and heat exchangers, often operates with hot water temperatures up to 95°C. Reliable control systems are necessary to optimize performance and ensure safety in these heating applications.

Gas burners, used in both commercial and industrial settings, require high-pressure control to operate effectively. Precision regulation supports optimal combustion and energy efficiency in these burner systems.

The handling of liquid petroleum gas (such as propane) in equipment like grain dryers and space heaters demands careful control. Systems designed for this purpose ensure safe and efficient fuel usage across various applications.

Cryogenic applications involve the control of extremely low-temperature liquids such as liquid nitrogen, liquid argon, and liquid oxygen. Specialized low-temperature models are employed to manage these substances with high precision.

Lastly, general industrial automation benefits from versatile fluid control solutions. These systems support a wide range of manufacturing and processing industries, enhancing productivity and process reliability.

Support and Services:

Our Pulse Valve Diaphragm is designed for durability and high performance in demanding industrial applications. To ensure optimal operation, regular inspection and maintenance are recommended. Replace the diaphragm if you notice any signs of wear, cracking, or deformation to prevent leakage and maintain efficient pulse valve function.

For installation, make sure the diaphragm is properly aligned and seated to avoid damage during assembly. Use compatible lubricants if necessary, and avoid exposure to harsh chemicals that may degrade the material.

We offer comprehensive technical support to assist with troubleshooting, maintenance tips, and replacement procedures. Our team is dedicated to helping you maximize the lifespan and reliability of your pulse valve diaphragm through expert guidance and service.

For additional information on product specifications, installation instructions, and maintenance best practices, please refer to the product manual or our online resources.

Packing and Shipping:

Product Packaging and Shipping for Pulse Valve Diaphragm

The Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. Each diaphragm is individually sealed in anti-static bags to prevent contamination and damage. The sealed diaphragms are then placed in sturdy, cushioned boxes designed to absorb shocks and vibrations.

For bulk orders, the diaphragms are securely packed in larger cartons with adequate padding to avoid movement and impact. All packaging materials used are environmentally friendly and comply with international shipping standards.

Shipping is available via air, sea, or express courier services depending on customer requirements. Each shipment is accompanied by detailed documentation, including a packing list and product specifications. We ensure timely dispatch and provide tracking information to keep customers updated on their order status.

Special handling instructions can be requested to accommodate specific shipping conditions or regulatory requirements. Our logistics team works closely with trusted carriers to guarantee safe and efficient delivery worldwide.
