Product Description:
The ASCO 210 Series represents a versatile collection of cost-effective, high-flow solenoid valves designed specifically for liquid, corrosive, and air or inert gas applications. These pilot-operated valves incorporate a hung diaphragm design and are offered in both normally closed (NC) and normally open (NO) configurations. With port sizes varying from 3/8″ to 2-1/2″ and a maximum operating pressure of up to 9 bar, the 210 Series ensures dependable performance across numerous industrial environments.
Constructed with either brass or stainless steel bodies, this series provides compatibility with a wide array of media such as air, water, inert gases, light oils, and corrosive fluids. Standard sealing materials include NBR, while FKM (fluororubber) and EPDM options are available for enhanced resistance to chemicals and temperature extremes. To function properly, these valves require a minimum differential pressure of around 0.35 bar and boast quick response times, achieving opening and closing actions in as little as 120 milliseconds for larger models.

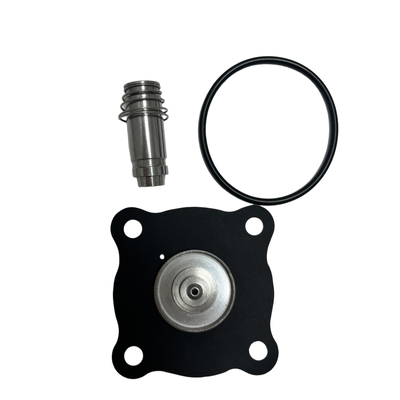

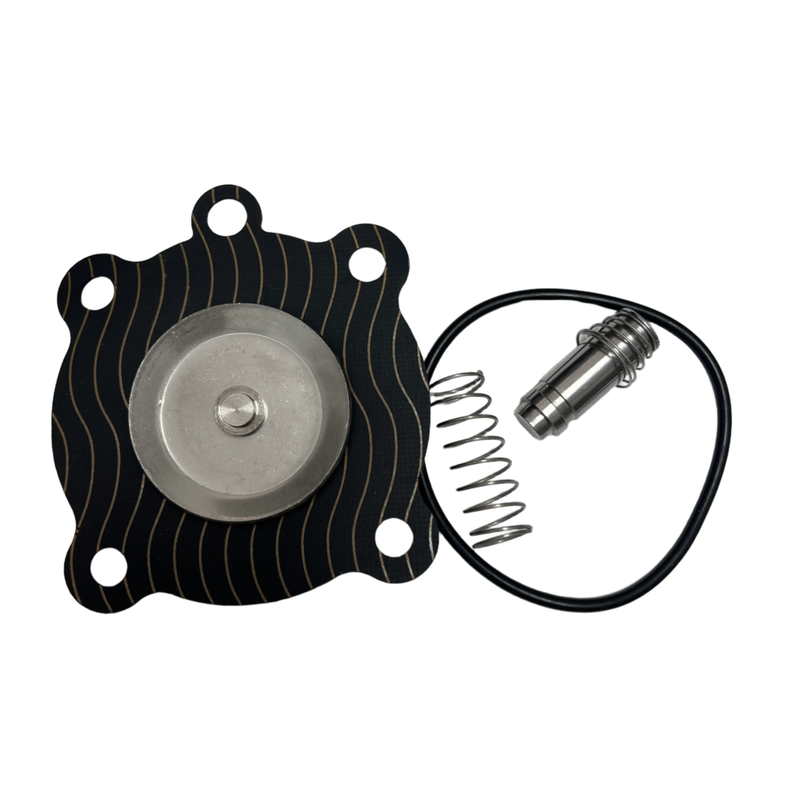

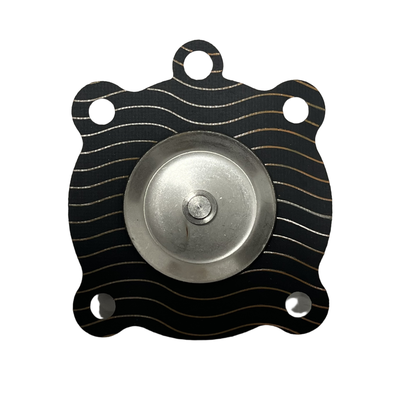

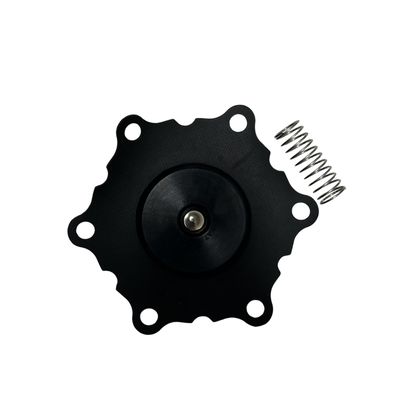

To facilitate maintenance and prolong the lifespan of these valves, a comprehensive selection of original repair components is offered. This includes repair kits for diaphragms and various coil assemblies such as K302271, K302372, K302373, K302375, and K302376, along with diaphragm repair kits K302379 and K302383, ensuring optimal performance and reliability throughout the valve’s operational lifetime.
Features:
The pilot-operated hung diaphragm design ensures reliable high-flow performance while maintaining minimal pressure loss. This makes it an excellent choice for applications where efficiency and consistent flow are critical.
Offering an economical and high flow solution, this design is cost-effective for handling liquids, corrosive substances, as well as air and inert gas services. It balances performance with affordability to meet diverse industrial needs.
Available in both 2/2-way normally closed and normally open configurations, the system provides options for fail-safe or fail-open operation. This flexibility allows it to be tailored to specific safety and operational requirements.
The valve comes with multiple body materials including brass and stainless steel, enabling compatibility with a wide range of media. This versatility ensures suitability across various environments and fluids.
Several seal options are offered, such as NBR (standard), FKM (fluororubber), and EPDM, to further enhance the valve’s adaptability and durability depending on the application’s needs.
With a wide port range from 3/8″ to 2-1/2″, the design caters to diverse system requirements, making it suitable for both small and large scale installations.
The valve boasts a fast response time, with opening and closing times as quick as 120 milliseconds for 1-1/2″ models, ensuring efficient system control and operation.
Its broad media compatibility includes air, water, inert gases, light oils, corrosive fluids, and more. This wide range enhances its applicability in various industrial sectors.
Featuring low internal leakage, the valve guarantees a long service life alongside reliable sealing performance. This minimizes maintenance needs and increases operational reliability.
Designed with IP65 protection, it is well-suited to operate in demanding industrial environments, safeguarding against dust and water ingress.
The compact and durable construction combines a lightweight design with robust internal components, providing extended service life and dependable operation.
Technical Parameters:
| Operating Temperature |
-20°C To +85°C (standard) |
| Port Sizes |
3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″ |
| Seal Materials |
NBR (Standard) |
| Media Compatibility |
Air, Water, Inert Gas, Light Oil, Corrosive Fluids, Steam, Vacuum |
| Protection Class |
IP65 |
| Max Operating Pressure |
Up To 9 Bar |
This table presents the technical parameters of the ASCO series 210 diaphragm, a 3/8‑2 1/2 inch solenoid valve diaphragm known for its reliability and versatility. The ASCO series 210 diaphragm is designed to operate efficiently under a wide range of conditions, making it suitable for various industrial applications.
Applications:
Industrial Water Management
Our solutions cover a broad range of industrial water control applications, including equipment used for car washes and laundry services. Additionally, they play a vital role in managing water flow and quality in various general water management systems.
Air Compressors and Pneumatic Systems
We provide precise control over air and inert gases in pneumatic systems through advanced air compressors and pump technologies. This ensures efficient and reliable operation of industrial automation processes.
Chemical Processing
Our metering and shut-off devices are specifically designed to handle corrosive and aggressive fluids safely and accurately, making them ideal for demanding chemical processing environments.
Water and Wastewater Treatment
The dosing and flow control equipment offered is essential for optimal performance in water and wastewater treatment facilities, helping to maintain regulatory standards and operational efficiency.
Commercial Equipment Applications
We support boiler and heat exchanger systems operating with hot water temperatures up to 95°C, serving a variety of commercial equipment needs with reliability and precision.
Gas Burners
Our high-pressure control solutions are tailored for use in both commercial and industrial gas burner systems, ensuring safe and consistent burner performance.
Petroleum Gas Handling
Specialized control systems are available for managing liquid petroleum gas, such as propane, commonly utilized in grain drying operations and space heating applications.
Cryogenic Applications
We offer models designed to control cryogenic fluids including liquid nitrogen, liquid argon, and liquid oxygen, providing effective solutions for low-temperature environments.
General Industrial Automation
Our versatile fluid control products are employed across a wide spectrum of manufacturing and processing industries, supporting diverse automation requirements.
Support and Services:
Our Pulse Valve Diaphragm is designed to ensure optimal performance and longevity of your pulse valve system. For technical support, please refer to the installation manual provided with the product, which includes detailed instructions on fitting and maintenance procedures.
Regular inspection and timely replacement of the diaphragm are crucial to maintain the efficiency of your pulse valve. Signs of wear such as cracking, stiffness, or deformation indicate that the diaphragm should be replaced immediately to prevent system failure.
We offer comprehensive services including troubleshooting guidance, replacement parts, and maintenance tips to help you maximize the lifespan of your pulse valve diaphragm. Our technical team is dedicated to assisting you with any operational issues to ensure minimal downtime.
For best results, always use genuine replacement diaphragms and follow the recommended maintenance schedule. Proper handling and storage of the diaphragm also contribute to its durability and reliable performance in demanding industrial environments.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first placed in a sealed plastic bag to prevent contamination from dust and moisture. It is then cushioned with protective foam or bubble wrap to avoid any damage from impact or pressure.
The packaged diaphragms are boxed in sturdy, corrugated cardboard boxes that are clearly labeled with product information and handling instructions. For bulk orders, multiple units are securely packed in larger cartons with internal dividers to prevent movement and abrasion.
We offer reliable shipping options with trusted carriers to ensure timely and safe delivery of your Pulse Valve Diaphragm products. All shipments include tracking details and can be insured upon request. Our logistics team monitors each order from dispatch to delivery to guarantee customer satisfaction.
