Product Description:
The ASCO 210 Series represents a versatile range of cost-effective, high-flow solenoid valves specifically designed for use with liquids, corrosive substances, and air or inert gases. These valves operate through a pilot mechanism and incorporate a hung diaphragm design, making them suitable for both normally closed (NC) and normally open (NO) configurations. With port sizes varying from 3/8″ up to 2-1/2″ and a maximum operational pressure of 9 bar, the 210 Series ensures dependable performance in a wide array of industrial environments.
Constructed with either brass or stainless steel bodies, the series provides excellent compatibility with various media such as air, water, inert gases, light oils, and corrosive fluids. The standard sealing material used is NBR, while options like FKM (fluororubber) and EPDM are offered for enhanced resistance to chemicals and temperature extremes. These valves require a minimum differential pressure of around 0.35 bar to function properly and boast quick actuation times, with some larger models achieving opening and closing speeds as fast as 120 milliseconds.

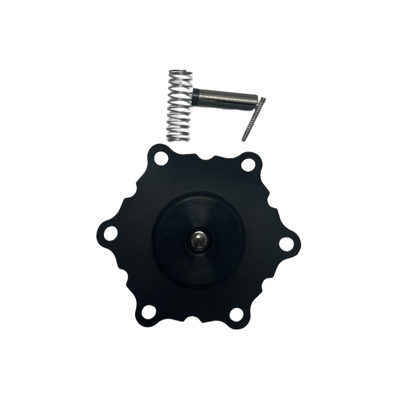

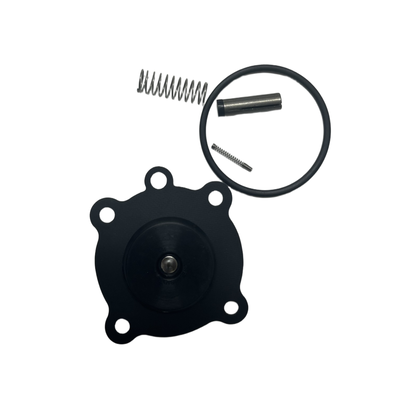

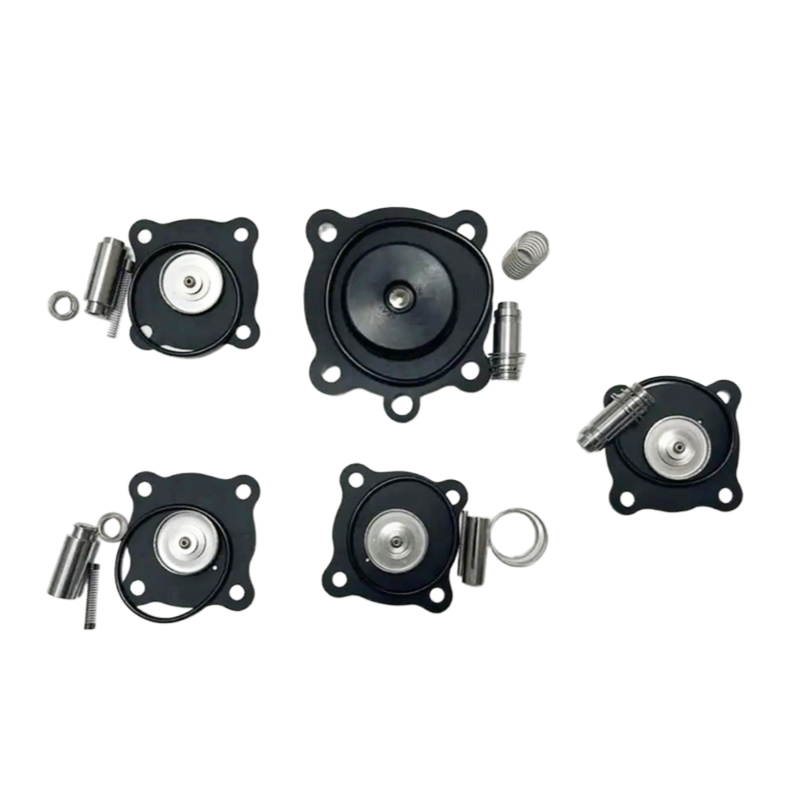

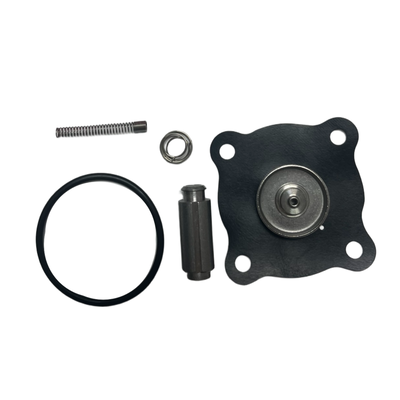

To support ongoing maintenance and prolong the operational life of the valves, a comprehensive selection of original repair kits, coils, and diaphragm assemblies is available. This includes coil assemblies such as K302271, K302372, K302373, K302375, and K302376, as well as diaphragm repair kits including K302379 and K302383. These genuine parts help ensure reliable service and minimal downtime for users of the ASCO 210 Series.
Features:
Pilot-Operated Hung Diaphragm Design
This design ensures reliable high-flow performance while maintaining minimal pressure loss. It is engineered to provide consistent operation in demanding fluid control applications.
Economical and High Flow
Offering a cost-effective solution, this product is suitable for various services including liquid, corrosive substances, and air or inert gases. It combines affordability with efficient flow capabilities.
2/2-Way Operation Modes
Available in both normally closed and normally open configurations, it provides flexibility for fail-safe or fail-open operation depending on system requirements.
Multiple Body Materials
The valve body can be selected in either brass or stainless steel, allowing compatibility with a wide range of media and enhancing durability across diverse applications.
Variety of Seal Options
Seal materials include standard NBR, FKM (fluororubber), and EPDM, giving options to suit specific chemical and temperature conditions.
Wide Port Range
Port sizes range from 3/8" up to 2-1/2", accommodating a broad array of system necessities and ensuring versatile integration.
Fast Response Time
The valves demonstrate rapid actuation with opening and closing times as quick as 120 milliseconds on the 1-1/2" models, enabling precise control in dynamic environments.
Broad Media Compatibility
Designed to handle air, water, inert gases, light oils, corrosive fluids, and more, this valve offers exceptional versatility for multiple industries.
Low Internal Leakage
Featuring reliable sealing technology, the valve ensures minimal internal leakage which contributes to a longer service life and better overall performance.
IP65 Protection
The product is rated IP65, making it suitable for use in demanding industrial environments where protection against dust and water ingress is essential.
Compact and Durable Construction
With a lightweight yet robust design, the valve is built for durability and extended service life, fitting conveniently into compact spaces while maintaining strength.
Technical Parameters:
| Media Compatibility |
Air, Water, Inert Gas, Light Oil, Corrosive Fluids, Steam, Vacuum |
| Max Operating Pressure |
Up To 9 Bar |
| Protection Class |
IP65 |
| Operating Temperature |
-20°C To +85°C (standard) |
| Port Sizes |
3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″ |
| Seal Materials |
NBR (Standard) |
Applications:
Industrial Water Management
This category includes equipment designed for industrial water control, such as car wash systems, laundry machines, and various general water management solutions. These systems ensure efficient and reliable handling of water in diverse applications.
Air Compressors and Pneumatic Systems
Air compressors and pumps are crucial for controlling the flow of air and inert gases within pneumatic systems. These components help maintain operational integrity and efficiency in industrial settings.
Chemical Processing
Specialized metering and shut-off devices are utilized to manage the flow of corrosive and aggressive fluids. These solutions ensure safe and precise handling of chemicals in processing plants.
Water and Wastewater Treatment
Accurate dosing and flow control are essential in water and wastewater treatment facilities. These systems guarantee proper treatment processes and compliance with environmental standards.
Commercial Equipment Applications
In commercial equipment such as boilers and heat exchangers, fluid control systems are designed to handle hot water temperatures up to 95°C, ensuring safety and efficiency.
Gas Burner Systems
High-pressure control mechanisms are employed in both commercial and industrial gas burner setups. These systems regulate the delivery of gas, enhancing performance and safety.
Petroleum Gas Control
Handling of liquid petroleum gas (propane) is critical in applications such as grain dryers and space heaters. Specialized control devices ensure reliable and secure propane management in these environments.
Cryogenic Applications
Low-temperature models are used to control liquid nitrogen, liquid argon, and liquid oxygen in cryogenic applications, providing precise management under extreme cold conditions.
General Industrial Automation
Fluid control solutions are widely applied across manufacturing and processing industries, offering versatile options for automation and efficiency improvements in various industrial processes.
Support and Services:
Our Pulse Valve Diaphragm product is supported by a dedicated technical support team committed to ensuring optimal performance and longevity of your equipment. We provide comprehensive services including installation guidance, troubleshooting assistance, and maintenance tips to help you maximize efficiency.
Our experts are available to assist with product selection, compatibility checks, and customization options tailored to your specific application requirements. We also offer detailed documentation, including user manuals and technical datasheets, to facilitate proper handling and operation of the pulse valve diaphragm.
For maintenance, we recommend regular inspection and timely replacement of the diaphragm to prevent system downtime and maintain air-tight sealing. Our support team can guide you through the replacement process and suggest best practices for storage and handling to extend the diaphragm’s service life.
In addition, we provide training sessions and workshops to empower your technical staff with the knowledge needed to efficiently operate and maintain pulse valve diaphragms. Our commitment is to deliver reliable service and support that enhances your overall system performance.
Packing and Shipping:
Product Packaging and Shipping for Pulse Valve Diaphragm
The Pulse Valve Diaphragm is carefully packaged to ensure it arrives in perfect condition. Each diaphragm is individually wrapped in protective material to prevent damage during transit. The products are then placed in sturdy, labeled boxes designed to withstand handling and shipping stresses.
For bulk orders, the diaphragms are packed securely in cartons with adequate cushioning to avoid movement and impact. All packages are sealed and clearly marked with product information and handling instructions.
Shipping is carried out through reliable carriers with tracking options available to monitor delivery status. We offer various shipping methods to meet customer requirements, including standard and expedited services. Special care is taken to comply with international shipping regulations to ensure timely and safe delivery worldwide.
