Product Description:
The ASCO 210 Series offers a wide range of economical, high-flow solenoid valves specifically designed for handling liquids, corrosive substances, as well as air and inert gas applications. These valves utilize a pilot-operated mechanism combined with a hung diaphragm design, providing reliable control. They are available in both normally closed (NC) and normally open (NO) options to suit various operational requirements.
With port sizes varying from 3/8″ up to 2-1/2″ and capable of operating at pressures up to 9 bar, the 210 Series is well-suited for a diverse array of industrial uses. The valves are constructed with either brass or stainless steel bodies, ensuring compatibility with a broad spectrum of media such as air, water, inert gases, light oils, and corrosive fluids.
Standard seals are made from NBR, while options for FKM (fluororubber) and EPDM are offered to provide enhanced resistance against chemicals and elevated temperatures. These valves operate efficiently with a minimum differential pressure requirement of about 0.35 bar and boast impressive response times, with opening and closing durations reaching as fast as 120 milliseconds in the larger models.

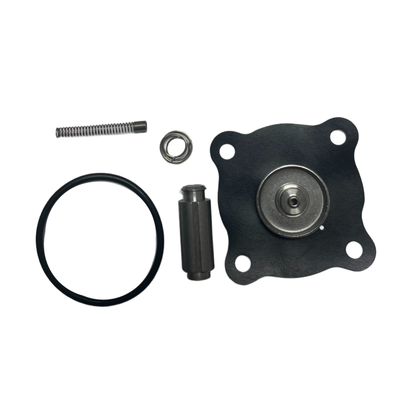

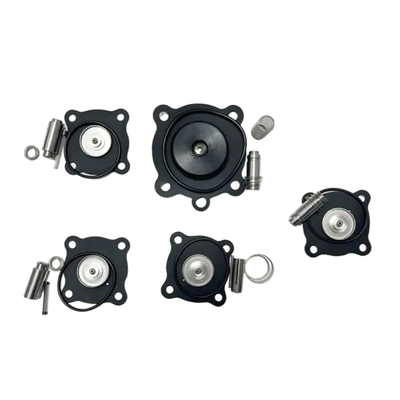

To support ongoing maintenance and prolong the lifespan of the valves, a complete selection of original repair kits, coils, and diaphragm assemblies is available. This includes coil assemblies such as K302271, K302372, K302373, K302375, K302376, as well as diaphragm repair kits like K302379 and K302383.
Features:
The pilot-operated hung diaphragm design ensures dependable high-flow performance while maintaining minimal pressure loss. This design enhances the efficiency and reliability of fluid control systems.
Offering an economical and high-flow solution, these valves are cost-effective for handling liquids, corrosive substances, and air or inert gases. Their versatility makes them suitable for a wide range of industrial applications.
Available in both 2/2-way normally closed and normally open configurations, these valves provide options for fail-safe or fail-open operations, catering to different safety and operational requirements.
The product is offered with multiple body materials, including brass and stainless steel, ensuring compatibility with a variety of media and environments. This flexibility supports use in diverse systems.
Seal choices include standard NBR, FKM (fluororubber), and EPDM, allowing customization based on chemical resistance and temperature demands. This ensures reliable sealing performance under different conditions.
With a wide port range spanning from 3/8″ to 2-1/2″, these valves can accommodate various system sizes and flow requirements, making them adaptable to numerous setups.
The valves feature fast response times, with opening and closing actions as quick as 120 milliseconds for 1-1/2″ models, enhancing control precision and system responsiveness.
Their broad media compatibility includes air, water, inert gases, light oils, corrosive fluids, and more, making them highly versatile for different industrial processes.
Designed for low internal leakage, these valves provide long service life through dependable sealing, reducing maintenance needs and downtime.
Equipped with IP65 protection, they are suitable for demanding industrial environments, safeguarding against dust and water ingress to ensure reliable operation.
The compact and durable construction offers a lightweight design combined with robust internal components, resulting in extended service life and reliable performance in various applications.
Technical Parameters:
| Port Sizes |
3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″ (3/8‑2 1/2 inch solenoid valve diaphragm) |
| Protection Class |
IP65 |
| Max Operating Pressure |
Up To 9 Bar |
| Media Compatibility |
Air, Water, Inert Gas, Light Oil, Corrosive Fluids, Steam, Vacuum |
| Seal Materials |
NBR (Standard) |
| Operating Temperature |
-20°C To +85°C (standard) |
| Product Description |
Solenoid valve sealing diaphragm suitable for 2-way valve repair kit applications. |
Applications:
Industrial water management plays a crucial role in various sectors such as car wash systems, laundry machines, and overall water regulation processes. Efficient control solutions ensure optimal use and distribution of water in these applications.
In pneumatic systems, the regulation of air and inert gases is essential for smooth operation. Air compressors and pumps rely on precise control mechanisms to manage airflow and pressure within these systems.
The chemical processing industry demands accurate metering and shut-off capabilities to handle corrosive and aggressive fluids safely. Advanced control equipment helps maintain process integrity and worker safety in such environments.
Water and wastewater treatment facilities utilize dosing and flow control technologies to maintain proper treatment processes. These controls ensure contaminants are effectively managed, contributing to environmental protection.
Commercial applications, including boilers and heat exchangers, often involve hot water operations up to 95°C. Specialized equipment is designed to handle these temperature conditions safely and efficiently.
Gas burner systems in both commercial and industrial settings require high-pressure control to operate effectively. Reliable control systems guarantee safe and consistent burner performance.
Handling liquid petroleum gas, such as propane, is critical in industries like grain drying and space heating. Proper control of LPG ensures operational safety and efficiency in these applications.
Cryogenic processes demand equipment capable of managing extremely low temperatures. Control solutions for liquid nitrogen, liquid argon, and liquid oxygen are tailored to meet the challenges presented by these fluids.
Across the manufacturing and processing industries, general industrial automation benefits from versatile fluid control solutions. These technologies support a wide range of applications, enhancing productivity and process reliability.
Support and Services:
Our Pulse Valve Diaphragm is designed for optimal performance and durability in demanding industrial applications. To ensure the longevity and reliability of the diaphragm, regular inspection and maintenance are recommended. Replacement should be performed if any signs of wear, cracking, or deformation are observed.
When installing the Pulse Valve Diaphragm, make sure the surface is clean and free of debris to guarantee a proper seal. Use compatible lubricants if necessary and avoid over-tightening to prevent damage.
For troubleshooting, common issues such as leakage or reduced pulse efficiency may be caused by diaphragm damage or improper installation. Inspect the diaphragm carefully and replace it if needed. Additionally, check the valve assembly for any blockages or mechanical faults.
We offer comprehensive technical support and service to assist with installation, maintenance, and troubleshooting of the Pulse Valve Diaphragm. Our team of experts is dedicated to ensuring your operation runs smoothly and efficiently.
Packing and Shipping:
Product Packaging and Shipping for Pulse Valve Diaphragm
The Pulse Valve Diaphragm is carefully packaged to ensure its protection during transit. Each diaphragm is individually wrapped in anti-static and moisture-resistant material to prevent any damage or contamination.
The wrapped diaphragms are then placed in sturdy, custom-designed boxes with cushioning materials to absorb shocks and vibrations. The packaging is labeled clearly with product details and handling instructions.
For shipping, we use reliable carriers to deliver the product safely and on time. Depending on the destination, the products can be shipped via air, sea, or land freight. Tracking information is provided to keep customers informed about their shipment status.
We prioritize secure packaging and efficient shipping to ensure that the Pulse Valve Diaphragm arrives in perfect condition and ready for use.
