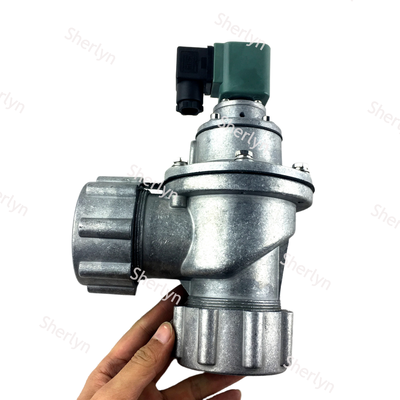

BFEC DMF-ZM-40 1.5" Right Angle Nut Type Solenoid Pulse Valve, DN40 Baghouse Dust Collector Jet Cleaning Valve

Product Description:

BFEC electromagnetic pulse valves represent the flagship offerings of Shanghai Bag Filtration Equipment Co., Ltd., which is currently known as Shanghai Bag Filter Technology Co., Ltd. The company traces its roots back to the environmental protection division of Shanghai Carbon Factory and began its journey supplying pulse valves and dust removal equipment as early as 1978. In 1997, the company entered into a joint venture with the United States-based Gore to strengthen its technological capabilities.

As a recognized leader in the environmental protection sector, the company holds the position of a standing council member within the China Association of Environmental Protection Industry. It has played a crucial role in setting industry benchmarks, leading the development of one national standard, five industry standards, and five group standards. Furthermore, Shanghai Bag Filter Technology Co., Ltd. boasts a portfolio of over 70 intellectual property rights and has received important certifications such as CE and PCEC.

The pulse valve functions as the critical "switch" managing compressed air within pulse-jet baghouse dust collectors. Operating under the control of electrical impulses from a pulse controller, the valve swiftly opens and closes, releasing bursts of high-pressure air from the air manifold directly into the filter bags. This process causes the bags to expand rapidly and vibrate, effectively dislodging accumulated dust particles and maintaining filter efficiency.

BFEC offers various series of pulse valves designed to meet different operational needs:

• DMF-Z Right-Angle Type : Featuring a 90-degree angle between the inlet and outlet with a threaded connection, this valve is compact, easily maintainable, and perfectly suited for small to medium-sized dust collectors.
• ZF Right-Angle Flanged Type : Equipped with flanged inlet and outlet connections, this model simplifies installation further.
• DMF-Y Submerged (Embedded) Type : Installed directly onto the air manifold, this type offers excellent flow characteristics and reduced pressure loss, making it ideal for systems with low-pressure air sources.
• DMF-T In-Line Type : With straight 180-degree ports, this valve ensures smooth and unobstructed airflow.
• Large-Diameter Valves (8″–16″) : Designed for heavy-duty applications, these valves support large-scale dust removal systems effectively.

Features:

Technical Specifications: The device operates within a pressure range of 0.1 to 0.86 MPa, with a recommended working pressure between 0.3 and 0.6 MPa. It is designed for use with clean and dry compressed air. Various voltage options are available, including DC 24V, AC 36V, AC 110V, and AC 220V. The unit features an IP65 protection rating and is suitable for environments with relative humidity levels up to 85%.

Optional Configurations: Users can select additional features such as an explosion-proof coil, suitable for hazardous areas, and a square rubber gasket to enhance sealing and durability.

Advanced Processing: The product incorporates extruded threads that are three to four times stronger than standard threads, significantly reducing the risk of stripping even after multiple maintenance cycles. Its surfaces are vibration-polished and treated for corrosion resistance. Furthermore, automatic lathe machining is employed to guarantee consistent and high-quality production standards.

Technical Parameters:

Applications:

Dust control plays a crucial role across various industries such as steel and metallurgy, thermal power generation, cement production, chemical processing, construction, and waste incineration. Effective dust management ensures cleaner air, safer working environments, and compliance with environmental regulations.

One of the key techniques used in these industries is pulse cleaning. This method is applied to a range of filtration systems including bag filters (which consist of filter bags and cages), cartridge filters, ceramic filters, and sintered metal fiber filters. Pulse cleaning helps maintain filter efficiency by removing accumulated dust and particles through short bursts of compressed air.

In large-scale operations, specialized equipment is often employed. For instance, large long-bag offline collectors are utilized for handling heavy dust loads. In power plants, fly-ash collection systems are essential components, ensuring the capture of fine particulate matter. Particularly in heavy-dust environments such as metallurgy, submerged large-diameter valves are highly recommended. These valves provide a strong jetting force and ensure stable operation even under low-pressure air supply, enhancing the overall reliability and performance of the dust control system.

Support and Services:

Our Pulse Jet Valves are designed to provide reliable and efficient performance in dust collector systems. For optimal operation, ensure that the valves are installed according to the manufacturer’s guidelines and are compatible with your system specifications.

Regular maintenance is essential to prolong the life of the Pulse Jet Valves. Inspect the diaphragm and seals periodically for wear or damage, and replace components as needed to prevent leaks and ensure proper functioning.

When troubleshooting, verify that the air pressure supply meets the required specifications and that the valve receives the correct electrical signal. Clogged or dirty valves can cause malfunction; cleaning the valve components may restore performance.

Our technical support team is available to assist with installation advice, troubleshooting, and maintenance recommendations to ensure your Pulse Jet Valves operate efficiently and effectively within your system.

For detailed service manuals, replacement parts, and warranty information, please refer to the product documentation provided with your Pulse Jet Valve or visit our website.

Packing and Shipping:

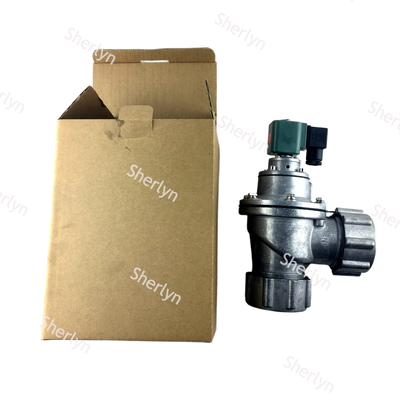

Our Pulse Jet Valves are carefully packaged to ensure maximum protection during transit. Each valve is securely wrapped in protective materials and placed in a sturdy, custom-designed box to prevent any damage.

We use high-quality packaging materials that are both durable and environmentally friendly, ensuring that the product arrives in perfect condition.

For shipping, we partner with reliable carriers to provide timely and safe delivery worldwide. Tracking information will be provided once the order is dispatched, allowing customers to monitor their shipment every step of the way.

Additionally, we offer various shipping options to accommodate different delivery needs, including expedited and standard shipping services.

If you have any special packaging or shipping requirements, please contact our customer service team, and we will do our best to accommodate your requests.
