Product Description:
The Masoneilan pneumatic actuator diaphragms are OEM replacement parts specifically engineered for Type 87/88 spring-diaphragm actuators and Camflex eccentric rotary plug valve actuators. These diaphragms function as a crucial flexible barrier that transforms air pressure into mechanical force, fundamentally influencing the actuator’s response precision, seating force, and overall durability.

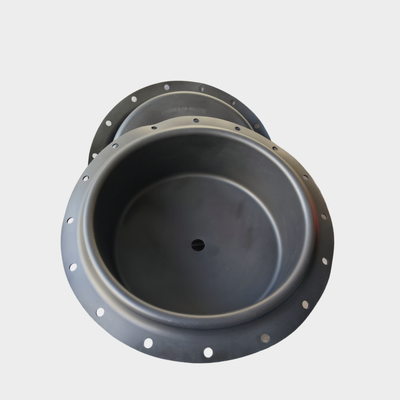

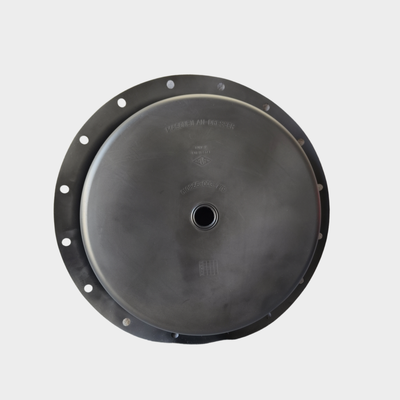

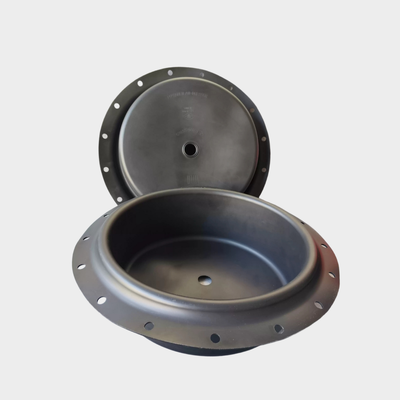

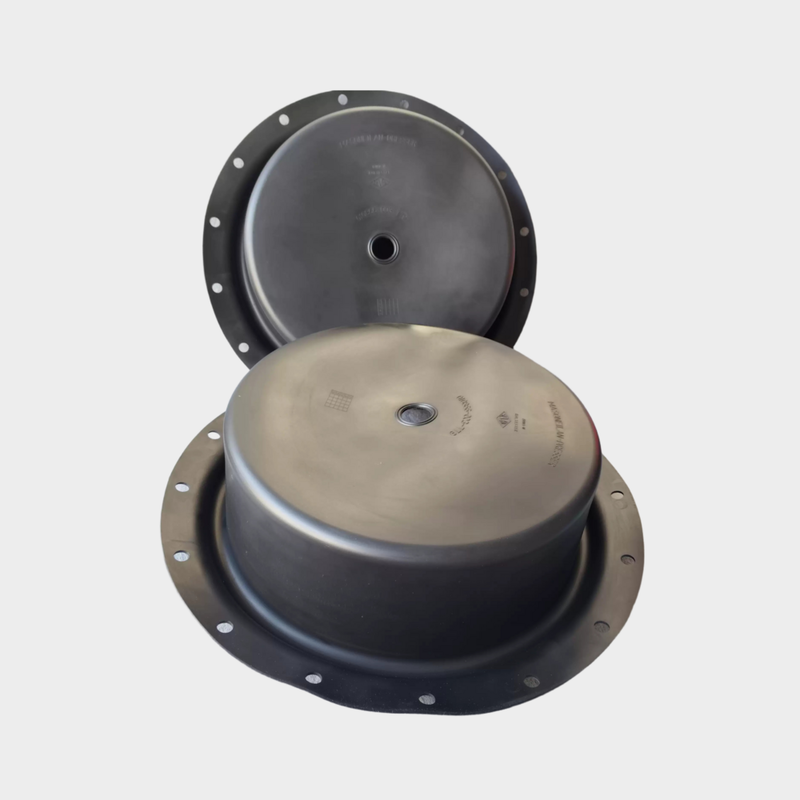

This product range includes the 035106040-716-0000 model designed for Camflex and eccentric rotary valve actuators. It is manufactured from Nitrile (Buna-N) material reinforced with polyester, offering superior resistance to oil and enhanced mechanical strength. Additionally, the models 010864-003-779, 010865-003-779, 010866-003-779, and 010867-003-779 cater to the 87/88 series actuators, featuring nominal diameters of 300 mm, 370 mm, 475 mm, and 550 mm respectively. These diaphragms are molded from fiber-reinforced nitrile rubber, ensuring consistent actuation performance, excellent leak-proof sealing, and strong protection against corrosive process fluids.
Designed to operate under pressures up to 150 psi and within a temperature range of -40°F to 180°F (-40°C to 82°C), these diaphragms are suitable for a wide variety of industrial control valve applications. Their multi-spring diaphragm actuator design allows for easy field reversibility and delivers dependable performance across both low and high pressure drop scenarios.
Features:
This product serves as an OEM replacement, perfectly compatible with Masoneilan 87/88 series as well as Camflex and eccentric rotary plug valve actuators. Its design ensures a direct fit, making it an ideal choice for seamless actuator maintenance and replacement.
Constructed from fiber-reinforced nitrile rubber, the material offers exceptional tensile strength and excellent resistance to oils. Additionally, it maintains dimensional stability even after repeated flexing, guaranteeing long-lasting performance under demanding operating conditions.
For the Camflex type, the incorporation of polyester reinforcement further improves its durability by increasing burst strength and extending fatigue life. This enhancement supports applications with rigorous cycling requirements, ensuring reliability throughout extensive use.
The diaphragm features a molded rolling design that minimizes friction, providing smooth and consistent travel. This design contributes to uniform actuation force across the entire stroke, enhancing overall actuator responsiveness and control precision.
Superior sealing capabilities prevent air bypass, which results in accurate pressure-to-thrust conversion. This high leak-proof sealing ensures optimal actuator efficiency and maintains reliable performance during operation.
Rated for pressures up to 150 psi, the diaphragm is compatible with standard pneumatic actuator supply pressures. It also operates effectively within a broad temperature range from -40°F to 180°F, accommodating diverse ambient and process environments.
The nitrile compound used is resistant to corrosion caused by oils, greases, and many fluids commonly encountered in control valve services. This corrosion resistance contributes to extended component life and reduced maintenance requirements.
Available in multiple diameters — 300 mm, 370 mm, 475 mm, and 550 mm — the diaphragm can be matched precisely to different actuator sizes and thrust needs. This range of options supports versatile application across various systems.
Proven in the field, this diaphragm design ensures reliable and stable actuation response, which helps prolong valve service life. Its durability and performance consistency make it a trustworthy component for maintaining efficient control valve operation.
Technical Parameters:
| Application |
Control Valve Maintenance And Overhaul |
| Pressure Rating |
150 Psi |
| Material (Camflex Type) |
Nitrile (Buna-N) With Polyester Reinforcement |
| Product Type |
Pneumatic Actuator Replacement Diaphragm |
| Compatible Actuator Series |
Masoneilan 87/88 (spring Diaphragm), Camflex / Eccentric Rotary Plug |
| Material (87/88 Series) |
NBR |
Applications:
Masoneilan 87/88 Spring-Diaphragm Actuators
Replacement diaphragms are available for the Masoneilan 87/88 spring-diaphragm actuators, suitable for both air-to-open and air-to-close configurations. These actuators are commonly used on globe control valves to ensure smooth and reliable operation.
Camflex Eccentric Rotary Plug Valves
The actuator diaphragms for Camflex eccentric rotary plug valves are designed to provide precise rotary valve control. These are widely utilized in process industries, where accurate valve positioning is critical for system performance.
Low to High Pressure Drop Control Valves
For applications involving low to high pressure drops, these control valves offer dependable actuation. They are engineered to deliver precise positioning and adequate seating force, ensuring effective flow control under varying pressure conditions.
Oil and Gas Processing
Diaphragm replacements are essential in control valves used throughout the oil and gas processing sectors. This includes service in upstream, midstream, and downstream operations, where valve reliability directly impacts operational safety and efficiency.
Chemical and Petrochemical Plants
In harsh chemical and petrochemical environments, corrosion-resistant diaphragms are vital. These diaphragms are specially designed to withstand aggressive media, ensuring longevity and consistent valve performance.
Power Generation
Maintenance of steam and water control valve actuators is crucial in power generation facilities. Replacing worn diaphragms helps maintain optimal control and prolong actuator lifespan under demanding operating conditions.
General Industrial Flow Control
Routine maintenance and overhaul of pneumatic control valve actuators are necessary for general industrial flow control applications. Regular diaphragm replacement ensures continued reliable operation and helps prevent unexpected downtime.
Support and Services:
Our Pulse Valve Diaphragm product is supported by a dedicated technical support team committed to providing comprehensive assistance throughout the product lifecycle. We offer expert guidance on installation, operation, and maintenance to ensure optimal performance and longevity of the diaphragm.
Technical support services include troubleshooting, performance optimization, and detailed product documentation to help users understand the specifications and proper handling of the pulse valve diaphragm. Our team is equipped to address any technical inquiries and provide solutions tailored to your specific application needs.
In addition to support, we offer a range of services such as custom diaphragm design, quality testing, and replacement parts to meet diverse industrial requirements. Our goal is to facilitate seamless integration and reliable operation in your pulse valve systems.
We also provide training and resources to empower your staff with the knowledge needed for effective maintenance and problem resolution. Through regular updates and technical bulletins, we keep our customers informed about the latest advancements and best practices related to pulse valve diaphragms.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first wrapped in a protective film to prevent any damage or contamination. It is then placed inside a sturdy, cushioned box that provides shock absorption and prevents movement.
The packaging materials are selected to be moisture-resistant and durable, maintaining the integrity of the product in various shipping conditions.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Each shipment includes a detailed packing list and handling instructions to assist with proper installation and care upon receipt.
Our packaging and shipping process is designed to ensure that the Pulse Valve Diaphragm arrives in perfect condition, ready for immediate use.
