Product Description:
The Masoneilan pneumatic actuator diaphragms are original equipment manufacturer (OEM) replacement parts specifically designed for the Type 87/88 spring-diaphragm actuators as well as the Camflex eccentric rotary plug valve actuators. These diaphragms act as a vital flexible barrier that transforms air pressure into mechanical thrust. This function is crucial as it directly impacts the actuator’s accuracy in response, the force applied to seating, and its durability over extended periods.

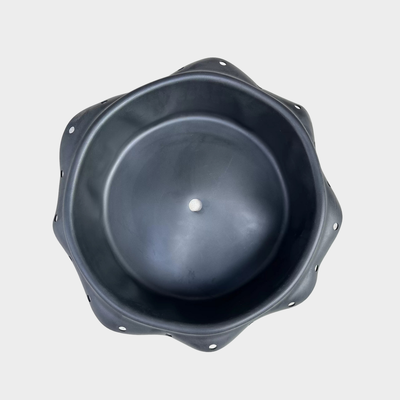

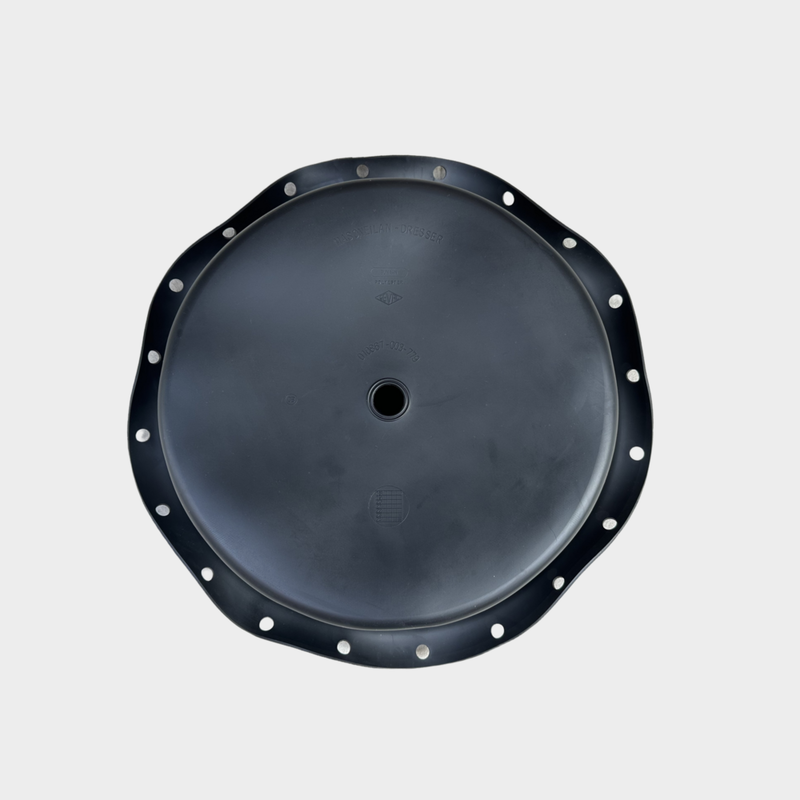

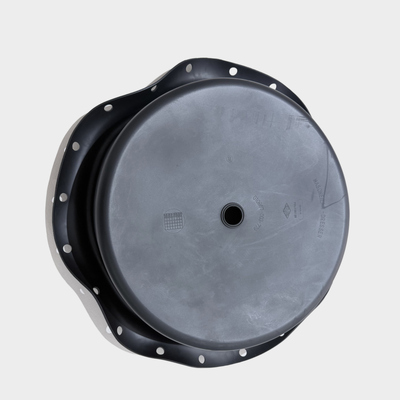

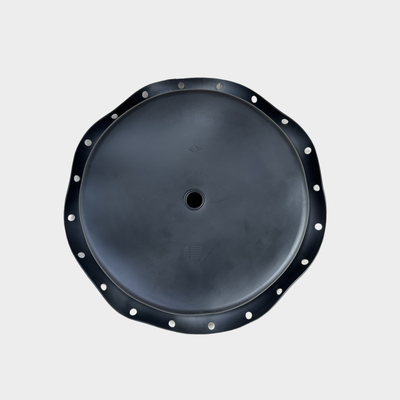

Within this product range, the model 035106040-716-0000 is intended for Camflex and eccentric rotary valve actuators. It is crafted from Nitrile (Buna-N) material reinforced with polyester to offer exceptional resistance to oils and enhanced mechanical strength. Additionally, models 010864-003-779, 010865-003-779, 010866-003-779, and 010867-003-779 are tailored for the 87/88 series actuators, featuring nominal diameters of 300 mm, 370 mm, 475 mm, and 550 mm, respectively. These diaphragms are molded using fiber-reinforced nitrile rubber, ensuring consistent actuation response, superior leak-proof sealing, and robust resistance to corrosion caused by process fluids.
These diaphragms are engineered to support operating pressures up to 150 psi while functioning efficiently across a temperature range spanning from -40°F to 180°F (-40°C to 82°C). This versatility makes them ideal for a wide variety of industrial control valve applications. Moreover, the multi-spring diaphragm actuator design enables field reversibility and dependable performance across services with low to high pressure drops.
Features:
This product serves as an OEM replacement fit, designed specifically as a direct substitute for Masoneilan 87/88 series actuators as well as Camflex and eccentric rotary plug valve actuators. It ensures compatibility and seamless integration without the need for modifications.
Constructed from fiber-reinforced nitrile rubber, the material offers exceptional tensile strength and resistance to oil. Additionally, it maintains dimensional stability even under frequent flexing, making it highly durable in demanding applications.
For the Camflex type, polyester reinforcement is incorporated to enhance both burst strength and fatigue life. This feature is crucial for meeting stringent cycle requirements in various industrial operations.
The actuator utilizes a molded rolling diaphragm design which guarantees low friction during operation, smooth travel along its stroke, and consistent actuation force. This design contributes to reliable and efficient performance.
Equipped with high leak-proof sealing, the product effectively prevents air bypass, ensuring precise pressure-to-thrust conversion and improving overall actuator responsiveness.
With a pressure rating of up to 150 psi, this product is suitable for standard pneumatic actuator supply pressures, making it versatile across different control system configurations.
It operates efficiently within a temperature range from -40°F to 180°F, accommodating a wide spectrum of ambient and process conditions commonly encountered in industrial environments.
The nitrile compound used in its construction offers excellent corrosion resistance against oils, greases, and numerous process fluids typically found in control valve services, thereby extending the actuator’s service life.

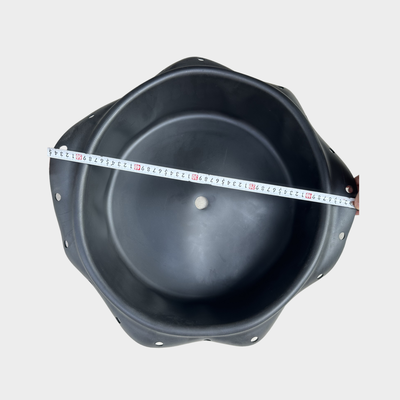

Available in multiple diameter options including 300 mm, 370 mm, 475 mm, and 550 mm, it caters to various actuator sizes and thrust requirements, providing flexibility for different applications.
Proven in the field for its reliability, this product is engineered to maintain stable activation responses and significantly enhance the longevity of valve operation.
Technical Parameters:
| Product Type |
Pneumatic Actuator Replacement Diaphragm |
| Compatible Actuator Series |
Masoneilan 87/88 (spring Diaphragm), Camflex / Eccentric Rotary Plug |
| Material (Camflex Type) |
Nitrile (Buna-N) With Polyester Reinforcement |
| Application |
Control Valve Maintenance And Overhaul |
| Pressure Rating |
150 Psi |
| Material (87/88 Series) |
NBR |
Applications:
Masoneilan 87/88 Spring-Diaphragm Actuators
These actuators are designed for use with globe control valves, available in both air-to-open and air-to-close configurations. The replacement diaphragms ensure optimal performance and durability, catering to a variety of industrial applications.
Camflex Eccentric Rotary Plug Valves
The actuator diaphragm specially engineered for Camflex eccentric rotary plug valves provides effective rotary valve control. These are widely used in process industries, ensuring reliable valve operation under demanding conditions.
Low to High Pressure Drop Control Valves
These control valves are designed for precise positioning and reliable seating force, essential for applications across a range of pressure drops. The actuators facilitate dependable valve actuation, enhancing overall system efficiency.
Oil and Gas Processing
Replacement diaphragms for control valves play a crucial role in oil and gas processing facilities. They support valves in upstream, midstream, and downstream services, ensuring seamless operation in challenging environments.
Chemical and Petrochemical Plants
Diaphragms used in chemical and petrochemical plants are corrosion-resistant, making them suitable for aggressive media environments. This helps maintain valve integrity and prolongs service life in harsh industrial settings.
Power Generation
In power generation applications, diaphragms are essential for steam and water control valve actuators. Regular maintenance and timely replacement contribute to efficient and safe plant operations.
General Industrial Flow Control
Routine maintenance and overhauls of pneumatic control valve actuators are vital for general industrial flow control systems. Using high-quality replacement diaphragms ensures consistent performance and reduces downtime.
Support and Services:
Our Pulse Valve Diaphragm product is backed by comprehensive technical support and services to ensure optimal performance and longevity. We provide detailed installation guidance, troubleshooting assistance, and maintenance tips to help you maximize the efficiency of your pulse valve system. Our technical team is equipped to offer expert advice on compatibility and replacement parts, ensuring seamless integration with your existing equipment. Additionally, we offer customized service plans tailored to your operational needs, including regular inspections and timely replacement recommendations. Trust our dedicated support to keep your pulse valve diaphragm functioning reliably in demanding industrial environments.
Packing and Shipping:
Each Pulse Valve Diaphragm is carefully packaged to ensure maximum protection during transit. The diaphragm is first placed in a sealed anti-static bag to prevent contamination and moisture exposure. It is then cushioned with foam inserts inside a sturdy cardboard box to avoid any physical damage.
The packaging box is clearly labeled with product information, handling instructions, and batch numbers for easy identification. For bulk orders, multiple units are securely packed in larger cartons with additional padding to prevent movement.
We ship our Pulse Valve Diaphragm products via reliable courier services with tracking options available. Depending on the destination, delivery times typically range from 3 to 10 business days. Expedited shipping options are also offered upon request.
Before shipping, each package undergoes a final quality inspection to ensure the product meets our high standards. Customer satisfaction and product integrity are our top priorities throughout the packaging and shipping process.
