Place of Origin: | China |
Brand Name: | SMC |
Certification: | CE |

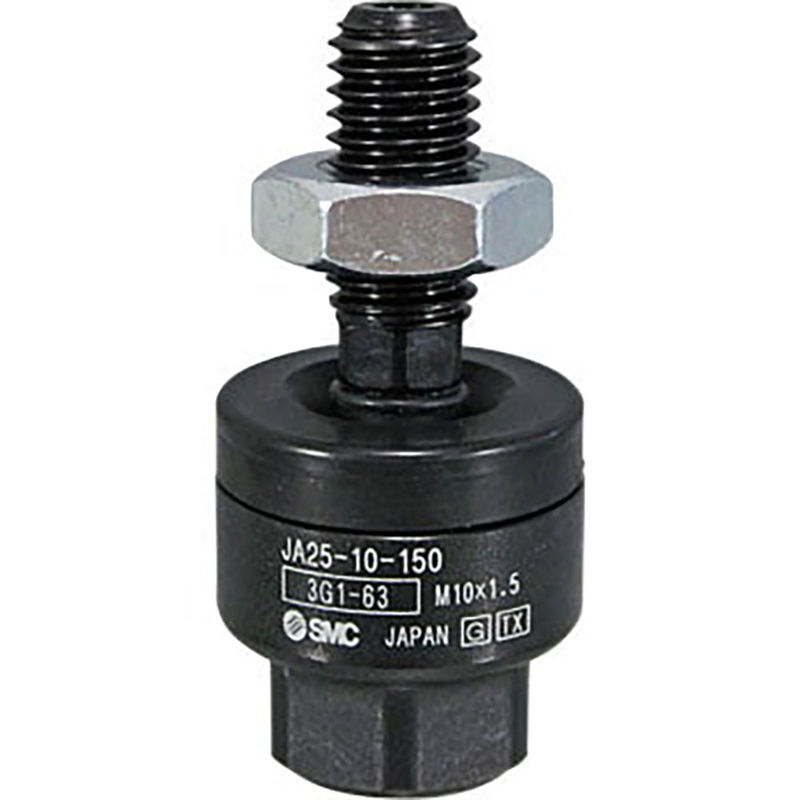

Model Number: | JA25-10-150 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 5000 pieces/1Month |
Connection: | Flange | Color: | Black |
---|---|---|---|
Connection Type Cylinder Side: | Tapped | Cylinder Used: | Air Cylinder / Hydraulic Cylinders |
Type: | Fittings | Series: | JA Series |
The floating joint design of this product is a major design feature, as it is able to absorb the eccentricity between the passive body and the cylinder, as well as the insufficient accuracy of parallelism. This design feature eliminates the need for axis alignment, greatly simplifying the installation process. Additionally, this product is suitable for working environments ranging from -5℃ to 60℃, ensuring connection stability even in extreme temperatures. Finally, the maximum applied tensile force on both the compression and tension sides is 28000 N, which demonstrates excellent load bearing capacity.
This product is available in a basic installation form, providing a stable connection method 2. It is designed to be used with cylinders with a diameter of 100mm and has a thread specification of M26X1.5, which conforms to standard thread specifications and is easy to connect with cylinders and other pneumatic components.
The swing angle of this product is ±5° which allows for a certain eccentricity of 0.5mm. This design feature provides greater flexibility and adaptability. The pressure range of this product is 0.05-1MPa, making it suitable for various working pressures. Finally, this product is suitable for use in a variety of working environments, with both environmental and fluid temperatures ranging from -5℃ to 60℃.
Attribute | Value |
---|---|
Cylinder Used | Air Cylinder / Hydraulic Cylinders |
Connection Type Cylinder Side | Tapped |
Color | Black |
Series | JA Series |
Connection | Flange |
Type | Fittings |
Hydraulic cylinder floating joint | SMC floating joint |
JA6-3-050 | JA80-20-150 |
JA10-4-070 | JA80-20-250 |
JA15-5-080 | JA80-22-150 |
JA15-6-100 | JA100-24-300 |
JA20-8-100 | JA100-26-150 |
JA20-8-125 | JA100-27-150 |
JA20-8-150 | JA100-27-200 |
JA25-10-150 | JA125-27-200 |
JA30-10-125 | JA140-30-150 |
JA32-10-100 | JA160-30-200 |
JA40-12-125 | JA160-33- 200 |
JA40-12-150 | JA160-36-150 |
JA40-12-175 | JA160-36-200 |
JA40-14-125 | JA180-40-150 |
JA40-14-150 | JA180-40-200 |
JA63-16-150 | JA180-42-150 |
JA63-16-200 | JA180-42-200 |
JA63-18-150 |
Application Scenarios:
SMC's JA series floating joints are versatile components suitable for various applications. They are commonly used in pneumatic and hydraulic systems to connect cylinders and hydraulic cylinders. They are particularly useful in situations where eccentricity and parallelism need to be absorbed. They are also commonly used in automated machinery to connect cylinders and driven bodies, ensuring stable system operation, and in handling systems to improve efficiency by ensuring stable cylinder operation.
Market Positioning and User Evaluation:
SMC's JA series floating joints are designed to provide efficient and flexible connection solutions for pneumatic systems. With their excellent design and performance, they are widely used in the field of industrial automation, positioning themselves as a reliable solution provider. The JA series floating joints have been well received by users who give high praise for their ability to absorb eccentricity and insufficient parallelism, high-temperature tolerance, and high load response ability. SMC's JA series floating joints are a dependable solution that provides a stable and reliable pneumatic connection solution.
Conclusion:
In conclusion, SMC's JA series floating joints provide an efficient and reliable solution for connecting pneumatic and hydraulic systems. They are versatile, with excellent design and performance, and have a wide range of applications in the field of industrial automation. With their ability to absorb eccentricity and insufficient parallelism, high-temperature tolerance, and high load response ability, the JA series floating joints are proven to be a dependable solution, providing users with a stable and reliable pneumatic connection solution.
