Product Description:
Design Features:
The floating joint design is a crucial feature of our product. This design has the ability to absorb any eccentricity or parallelism that may occur between the passive body and the cylinder, which are common problems in traditional joint designs. Moreover, because there is no need for axis alignment, the installation process is greatly simplified. Additionally, our product boasts a high-temperature specification, and is suitable for working environments ranging from -5 ℃ to 60 ℃. This extraordinary range ensures connection stability under extreme temperatures. Lastly, this design results in excellent load-bearing capacity, with the maximum applied tensile force being 28000 N in both the compression and tension sides.
Technical Specifications:
Our product is of the basic type, providing a stable connection method 2. It is specifically designed to be used with cylinders that have a diameter of 100 mm. Additionally, it features a standard thread specification of M26X1.5, making it easy to connect with cylinders and other pneumatic components. The swing angle of our product is ± 5 °, which allows for a certain amount of eccentricity of 0.5 mm, providing greater flexibility and adaptability. This product is suitable for various working pressures, with a pressure range of 0.05-1 MPa. Lastly, it is important to note that this product is capable of handling a wide range of environmental and fluid temperatures, from -5 ℃ to 60 ℃, making it suitable for various working environments.
Technical Parameters:
| Model/Specifications |
| Model |
Applicable
bore size
[mm] |
Applicable
cylinder
nominal
thread size |
Maximum operating tension
and compression force (N) |
Allowable
eccentricity
U[mm] |
Rotating
angle |
Ambient
temperature |
| |
Basic type Flange type Foot type |
|
| Standard/Thread nominal size |
-5 to 60℃ |
| JA6-3-050 |
6 |
M3x0.5 |
19 |
|
|
0.5 |
±5° |
| JA10-4-070 |
10 |
M4x0.7 |
54 |
|
|
0.5 |
| JA15-5-080 |
1,015 |
M5x0.8 |
123 |
|
|
0.5 |
| JA15-6-100 |
15 |
M6x 1 |
123 |
|
|
0.5 |
| JA□20-8-125 |
20 |
M8x1.25 |
1100 |
1100 |
1000 |
0.5 |
| JA□30-10-125 |
2,532 |
M10x1.25 |
2500 |
2500 |
2000 |
0.5 |
| JA□40-14-150 |
40 |
M14x1.5 |
4400 |
4400 |
4400 |
0.75 |
| JA□63-18-150 |
5,063 |
M18x1.5 |
11000 |
11000 |
9000 |
1 |
| JA□80-22-150 |
80 |
M22x1.5 |
18000 |
18000 |
14000 |
1.25 |
| JA□100-26-150 |
100 |
M26x1.5 |
28000 |
28000 |
22000 |
2 |
| JA□140-30-150 |
125,140 |
M30x1.5 |
54000 |
36000 |
36000 |
2.5 |
| JA□160-36-150 |
160 |
M36x1.5 |
71000 |
55000 |
55000 |
3 |
| Semi-standard/Thread nominal size |
| JA□20-8-100 |
20 |
M8x1 |
1100 |
1100 |
1000 |
0.5 |
±5° |
| JA□25-10-150 |
25 |
M10x1.5 |
2500 |
2500 |
2000 |
0.5 |

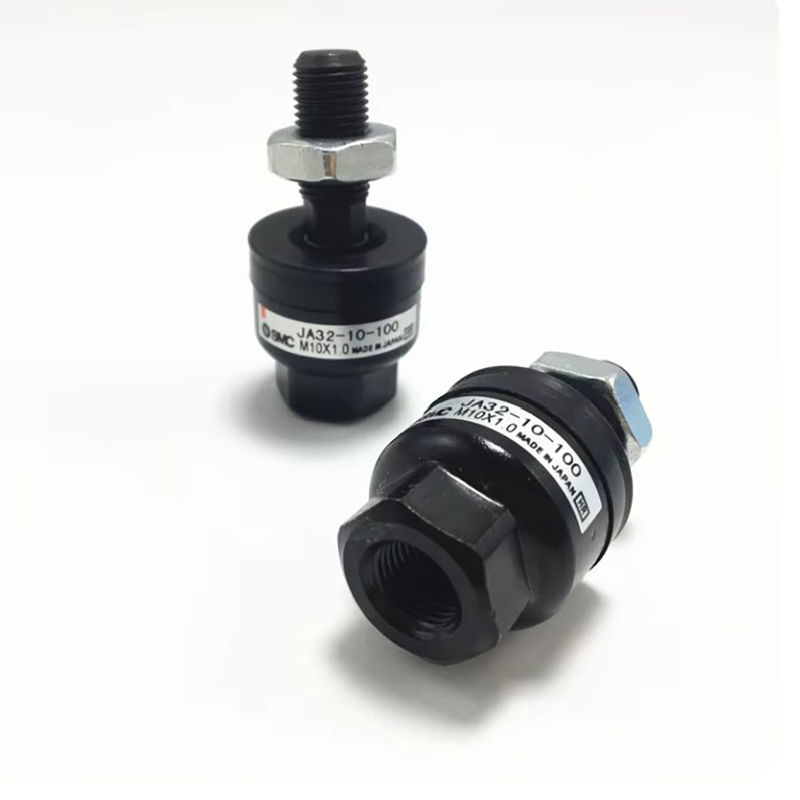

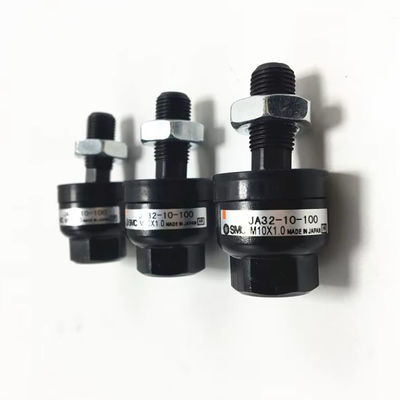

| JA□32-10-100 |
32 |
M10x1 |
2500 |
2500 |
2000 |
0.5 |
| JA□40-12-125 |
3,240 |
M12x1.25 |
4400 |
4400 |
4400 |
0.75 |
| JA□40-12-150 |
40 |
M12x1.5 |
4400 |
4400 |
4400 |
0.75 |
| JA□40-12-175 |
3,240 |
M12x1.75 |
4400 |
4400 |
4400 |
0.75 |
| JA□50-16-150 |
50 |
M16x1.5 |
11000 |
11000 |
9000 |
1 |
| JA□63-16-200 |
5,063 |
M16x2 |
11000 |
11000 |
9000 |
1 |
| JA□80-20-250 |
80 |
M20x2.5 |
18000 |
18000 |
14000 |
1.25 |
| JA□100-24-300 |
100 |
M24 x3 |
28000 |
28000 |
22000 |
2 |
| JA□100-27-150 |
100 |
M27x1.5 |
28000 |
28000 |
22000 |
2 |
| JA□125-27-200 |
125 |
M27x2 |
28000 |
28000 |
28000 |
2 |
| JA□160-33-200 |
160 |
M33x2 |
71000 |
55000 |
55000 |
3 |
Applications:
Application Scenarios:
Pneumatic and hydraulic systems find the JA series floating joints suitable for connecting cylinders and hydraulic cylinders, particularly in situations where eccentricity and parallelism need to be absorbed.
Automated machinery requires the floating joint to connect cylinders and driven bodies, ensuring the stable operation of the system.
In the handling system, the JA series floating joint functions to ensure the stable operation of cylinders, thereby improving handling efficiency.
Market Positioning and User Evaluation:
SMC's JA series floating joints provide an efficient and flexible connection solution for pneumatic systems with their excellent design and performance. This positioning ensures the widespread use of SMC's JA series in the field of industrial automation.
Users have given high praise for SMC's JA series floating joint, acknowledging its ability to absorb eccentricity and insufficient parallelism, tolerance to high temperature, and responsiveness to high load. The floating joint provides a stable and reliable solution to pneumatic connections.
In Summary
In conclusion, SMC's JA series floating joints present an efficient and reliable solution for connecting pneumatic and hydraulic systems with their excellent design and performance, and are widely used in the field of industrial automation.
