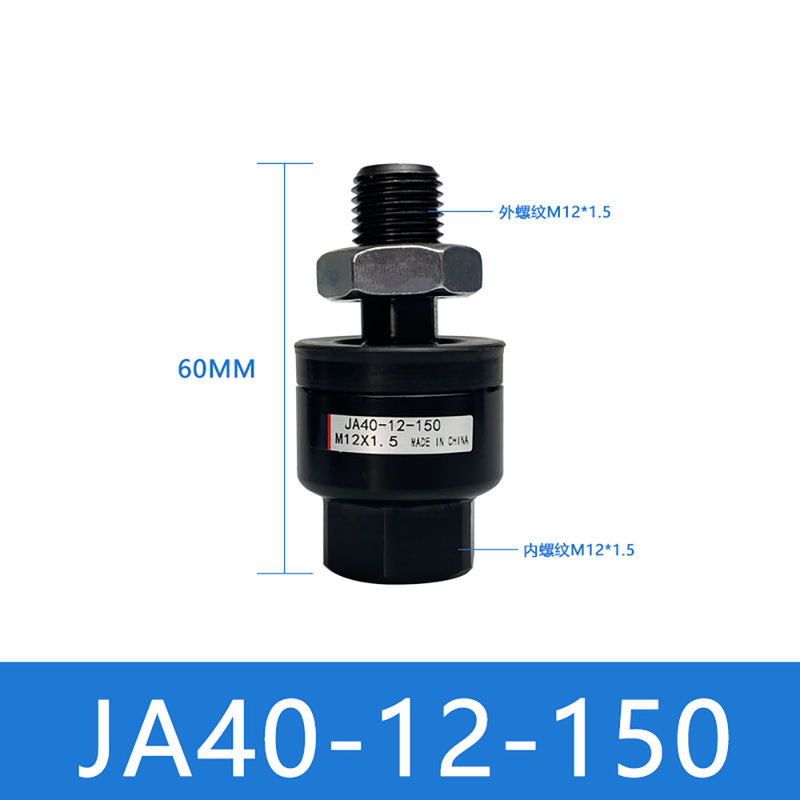

JA40-12-150 Tapped Hydraulic Cylinder Floating Joint Ja Series for Air and Hydraulic Cylinders

Product Description:

Design Features:

The floating joint design of this product has the ability to absorb both eccentricity and parallelism issues between the passive body and the cylinder during installation. This feature eliminates the need for axis alignment, simplifying the installation process. It provides stability for connections in environments ranging from -5 ℃ to 60 ℃ and can withstand extreme temperatures while maintaining connection stability. This design can withstand up to 28000 N of applied tensile force on both compression and tension sides - demonstrating excellent load bearing capacity.

Technical specifications:

This product is designed as a basic type, providing a stable connection method (2). It is suitable for cylinders with a diameter of 100mm and has a standard thread specification of M26X1.5, making it easy to connect with other pneumatic components. The swing angle of this product is ± 5 °, allowing for a certain eccentricity of 0.5mm. This provides adaptability and flexibility to various applications. The pressure range is 0.05-1 MPa, making it suitable for various working pressures. Additionally, this product is designed to operate in environments ranging from -5~60 ℃, making it ideal for use in a variety of working environments.

Technical Parameters:

Applications:

SMC's JA series floating joints have a wide range of applications in various industries:

• Pneumatic and hydraulic systems: These floating joints are suitable for connecting cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed.
• Automated machinery: In automated machinery, JA series floating joints are used to connect cylinders and driven bodies to ensure the stable operation of the system.
• Handling system: JA series floating joints ensure the stable operation of cylinders in the handling system, which improves handling efficiency.

SMC's JA series floating joints are highly regarded in the industry:

• Market Positioning: JA series floating joints are an efficient and flexible connection solution for pneumatic systems, with excellent design and performance. They are widely used in the field of industrial automation.
• User Evaluation: Users have given high praise to SMC's JA series floating joints. They believe that it performs well in absorbing eccentricity and insufficient parallelism, high temperature tolerance, and high load response ability. Thus, providing users with a stable and reliable pneumatic connection solution.

Overall, SMC's JA series floating joints are an efficient and reliable solution for connecting pneumatic and hydraulic systems. These floating joints offer excellent design and performance and are widely used in the industrial automation field.

Packing and Shipping:

Product Packaging:

• Each solenoid valve is individually packaged in a protective plastic bag.
• All valves are then placed in a sturdy cardboard box for shipping.

Shipping:

• We offer multiple shipping options including standard ground and expedited shipping.
• Orders are typically shipped within 24-48 hours of purchase.
• Customers will receive a tracking number as soon as the order has shipped.
• We ship to most locations worldwide.
