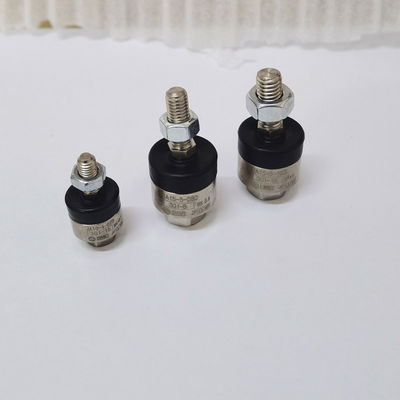

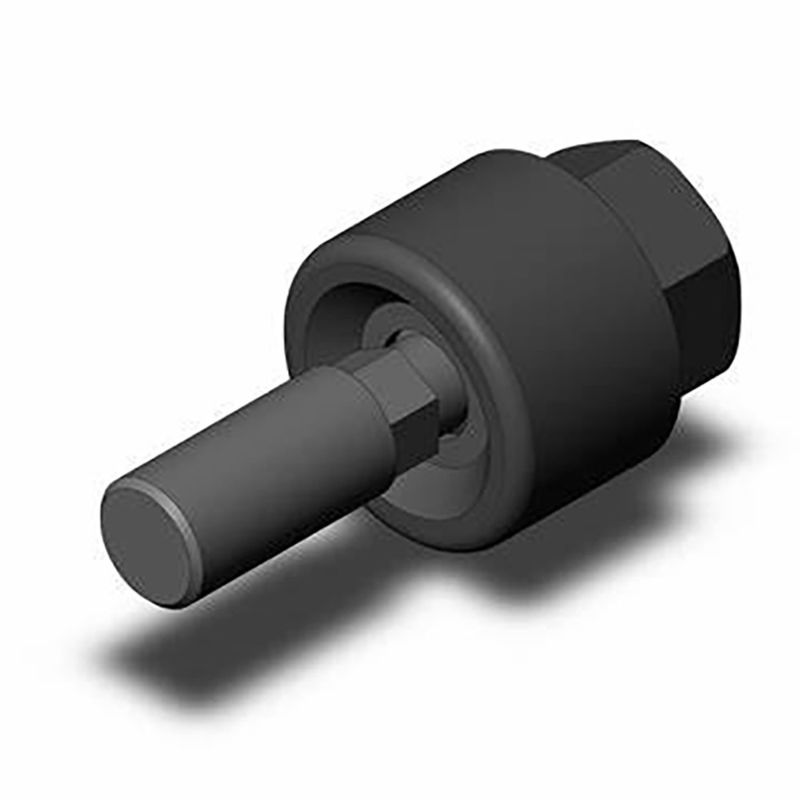

SMC JA40-12-175 Tapped Exhaust Tailpipe Joint for Performance Air Cylinder

Product Description:

The design of this product includes several key features:

• Floating Joint Design: The floating joint design can easily handle the eccentricity between the passive body and the cylinder, as well as the insufficient accuracy of parallelism, without the need for axis alignment. This simplifies the installation process.
• High Temperature Specification: This product is suitable for working environments ranging from -5 ℃ to 60 ℃, ensuring connection stability even under extreme temperatures.
• High Load Handling Capacity: The maximum applied tensile force on both the compression and tension sides is 28000 N. This demonstrates excellent load bearing capacity.

This product has several technical specifications:

• Installation Form: This product is the Basic type, which provides a stable connection method 2.
• Suitable Cylinder Diameter: This product is suitable for cylinder 1 with a diameter of 100mm.
• Thread Specification: This product uses a standard M26X1.5 thread specification. This makes it easy to connect with cylinders and other pneumatic components.
• Swing Angle: This product has a swing angle of ± 5 °. This allows for a certain eccentricity of 0.5mm and provides greater flexibility and adaptability.
• Pressure Range: This product can handle a pressure range of 0.05-1 MPa, making it suitable for various working pressures.
• Environmental and Fluid Temperature: This product is suitable for a temperature range of -5~60 ℃, making it ideal for various working environments.

Technical Parameters:

This solenoid valve is suitable for use with hydraulic cylinder floating joint and has applicable cylinder thread size. It is a product from SMC floating joint.

Applications:

SMC's JA series floating joints are highly versatile and can be used in various applications. They are especially suitable for connecting cylinders and hydraulic systems where eccentricity and parallelism need to be absorbed. In automated machinery, the floating joints ensure stable operation by connecting cylinders and driven bodies. Additionally, they improve handling efficiency by ensuring stable operation of cylinders in the handling system.

The JA series floating joints are an efficient and flexible connection solution for pneumatic systems, making them a popular choice in the field of industrial automation. Users have praised SMC for the excellent design and performance of the JA series floating joint. They perform well in absorbing eccentricity and insufficient parallelism, tolerate high temperatures, and respond well to high loads. This makes them a stable and reliable option for pneumatic connection solutions.

In conclusion, SMC's JA series floating joints are an efficient and reliable solution for connecting pneumatic and hydraulic systems. Their versatility and excellent performance make them widely used in the field of industrial automation. With high praise from satisfied users, the JA series floating joints offer a stable and reliable pneumatic connection solution.
