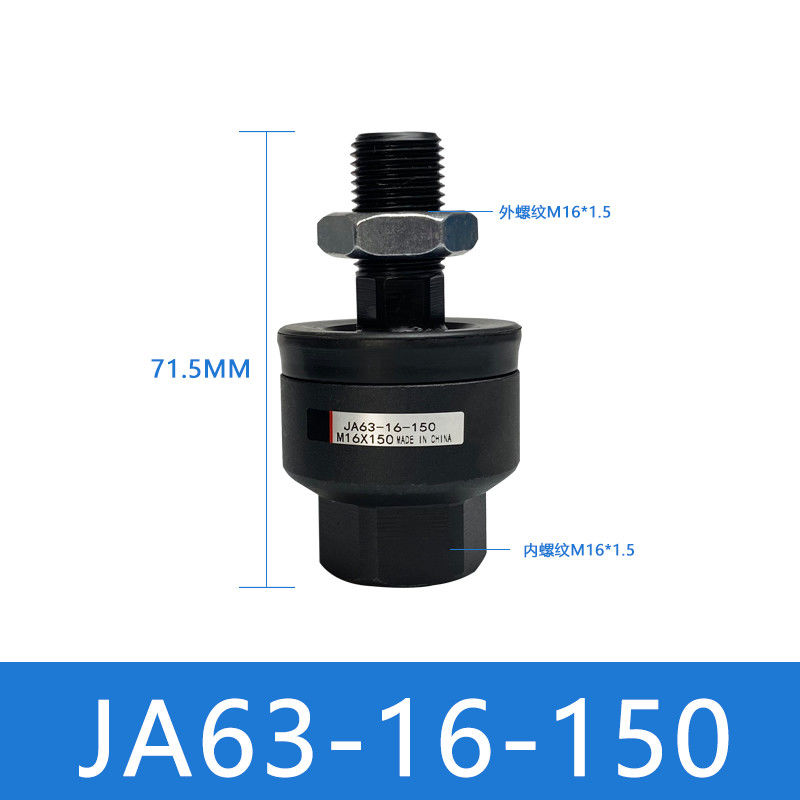

JA63-16-150 SMC Floating Joint Fittings with Flange Connection

The floating joint design is a unique feature of this product. It is capable of absorbing eccentricity and parallelism, which simplifies the installation process as there is no need for axis alignment. This design also accommodates the insufficient accuracy of parallelism between the passive body and the cylinder.

Furthermore, this product has a high-temperature specification; it can operate in working environments ranging from -5 ℃ to 60 ℃. This makes the product highly adaptable to extreme temperatures while ensuring connection stability.

Another useful feature of this product is its high load handling capacity. It can withstand a maximum applied tensile force of 28000 N on both the compression and tension sides, thus having a reliable load bearing capacity.

This product comes in a basic installation form that provides a stable connection method 2. It is designed for a cylinder with a 100mm diameter and has a standard thread specification of M26X1.5. This makes it easy to connect with different pneumatic components, including cylinders.

This product also has a swing angle of ± 5 °, allowing for a certain eccentricity of 0.5mm. This feature provides greater flexibility and enables the product to adapt to various cylinder movements.

Additionally, the product can operate within a pressure range of 0.05-1 MPa and is suitable for various working pressures. Its environmental temperature and fluid temperature ranges from -5~60 ℃, making it adaptable to different working environments.

Pneumatic and Hydraulic Systems:

SMC's JA series floating joints are suitable for connecting cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed. These floating joints ensure a stable and reliable pneumatic connection solution, making them highly efficient and flexible.

Automated Machinery:

In automated machinery, the SMC's JA series floating joints are used to connect cylinders and driven bodies to ensure the stable operation of the system.

Handling System:

The SMC's JA series floating joints ensure the stable operation of cylinders in the handling system, improving handling efficiency.

Market Positioning and User Evaluation:

Market Positioning: SMC's JA series floating joints provide an efficient and flexible connection solution for pneumatic systems with their excellent design and performance, and are widely used in the field of industrial automation.

User Evaluation: Users have given high praise to SMC's JA series floating joint, believing that it performs well in absorbing eccentricity and insufficient parallelism, high temperature tolerance, and high load response ability. It provides users with a stable and reliable pneumatic connection solution.

In conclusion, the SMC's JA series floating joints are highly efficient and reliable in connecting pneumatic and hydraulic systems. They provide an excellent solution for industrial automation, making them widely used in various industries.
