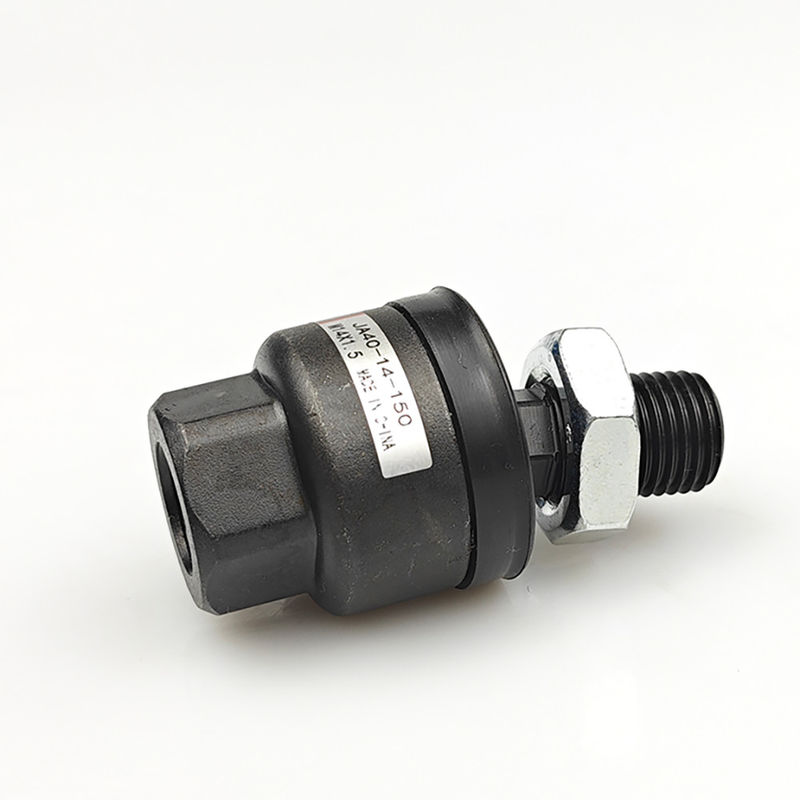

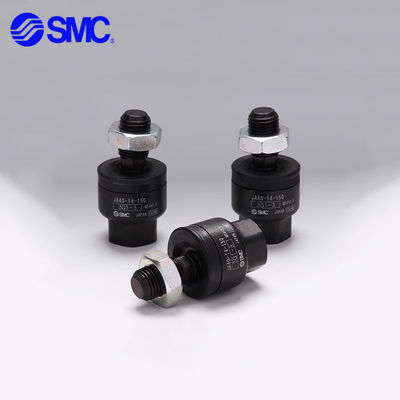

Product Description:
Design Features:
The floating joint design of this product can absorb eccentricity and parallelism between the passive body and cylinder. It also eliminates the need for axis alignment, simplifying the installation process. With high-temperature specifications ( -5℃ to 60℃ ), it can ensure stable connections even in extreme temperatures. The product also has a high load handling capacity with the maximum applied tensile force on both compression and tension sides being 28000 N.
Technical Specifications:
The basic type installation form provides a stable connection method 2 for this product. It is suitable for cylinders with a diameter of 100mm . The thread specification is M26X1.5 , which is a standard thread specification and easily connects with cylinders and other pneumatic components. With a swing angle of ± 5 °, it allows a certain eccentricity of 0.5mm, providing greater flexibility and adaptability. The pressure range is 0.05-1 MPa , making it suitable for various working pressures. Its environmental temperature and fluid temperature range from -5 ~ 60 ℃ , making it suitable for various working environments.
Technical Parameters:
| Series |
SMC JA Series Floating Joints |
| Color |
Black |
| Cylinder Used |
Air Cylinder / Hydraulic Cylinders |
| Connection |
Flange |
| Connection Type Cylinder Side |
Tapped |
| Type |
Fittings |
Applications:
Pneumatic and Hydraulic Systems
SMC's JA series floating joints are ideal for connecting cylinders and hydraulic cylinders, especially in situations where eccentricity and parallelism need to be absorbed. These joints provide an efficient and flexible connection solution for pneumatic systems.
Automated Machinery
In automated machinery, the JA series floating joint is used to connect cylinders and driven bodies to ensure the stable operation of the system. This helps to improve the efficiency of automated machinery.
Handling System
The JA series floating joint is also used in handling systems to ensure stable operation of cylinders and improve handling efficiency. This makes them an ideal solution for industries that require efficient and reliable operation of handling systems.
Market Positioning and User Evaluation
Market Positioning
SMC's JA series floating joints are highly regarded in the field of industrial automation. Their excellent design and performance make them an efficient and flexible connection solution for pneumatic systems.
User Evaluation
Users have given high praise for SMC's JA series floating joints. They are highly effective in absorbing eccentricity and insufficient parallelism, are tolerant of high temperatures, and have high load response ability, providing users with a stable and reliable pneumatic connection solution.
In summary, SMC's JA series floating joints provide an efficient and reliable solution for connecting pneumatic and hydraulic systems with their excellent design and performance. They are widely used in the field of industrial automation, and have received high praise for their effectiveness and reliability.
