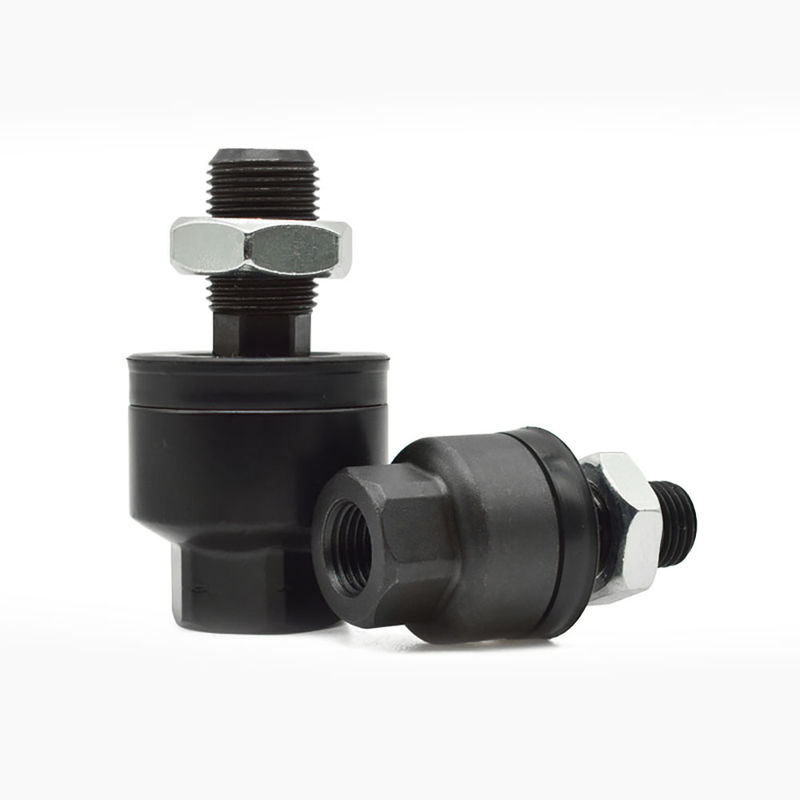

JA80-20-150 Flange Connection JA Series Air and Hydraulic Cylinder Fitting

Product Details:

Place of Origin:	China
Brand Name:	SMC
Certification:	CE
Model Number:	JA80-20-150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000 pieces/1Month

Contact Now

Detailed Product Description

Type:	Fittings	Connection:	Flange
Color:	Black	Series:	JA Series
Connection Type Cylinder Side:	Tapped	Cylinder Used:	Air Cylinder / Hydraulic Cylinders

Product Description:

Design Features

The product boasts of the following design features:

Insufficient absorption of eccentricity and parallelism: The floating joint design can absorb the eccentricity between the passive body and the cylinder and the insufficient accuracy of parallelism. There's no need for axis alignment, simplifying the installation process.
High temperature specification: The product is suitable for working environments ranging from -5 ℃ to 60 ℃, ensuring connection stability under extreme temperatures.
High load handling capacity: The product can handle a maximum applied tensile force of 28000 N on both the compression and tension sides, demonstrating excellent load bearing capacity.

Technical Specifications

The product has the following technical specifications:

Installation form: Basic type, providing stable connection method 2.
Suitable cylinder diameter: 100mm, suitable for cylinder 1 with a diameter of 100mm.
Thread specification: M26X1.5, standard thread specification, easy to connect with cylinders and other pneumatic components.
Swing angle: ± 5 °, allowing a certain eccentricity of 0.5mm, providing greater flexibility and adaptability.
Pressure range: 0.05-1 MPa, suitable for various working pressures.
Environmental temperature and fluid temperature: -5~60 ℃, suitable for various working environments.

Technical Parameters:

Series	SMC JA Series Floating Joints
Cylinder Used	Air Cylinder / Hydraulic Cylinders
Type	Fittings
Connection	Flange
Connection Type Cylinder Side	Tapped
Color	Black
Applicable Cylinder Thread Size	JA Series

Applications:

Pneumatic and Hydraulic Systems: SMC's JA series floating joints are ideal for connecting cylinders and hydraulic cylinders, especially in situations where there is a need to absorb eccentricity and parallelism. The floating joint ensures a stable connection and smooth operation of the system.

Automated Machinery: In automated machinery, the floating joint is a vital piece of equipment for connecting cylinders and driven bodies. It ensures the stability of the system and aids in its smooth operation.

Handling Systems: JA series floating joints guarantee the stable operation of cylinders, improving the overall efficiency of the handling system.

Market Positioning: With its excellent design and performance, SMC's JA series floating joints provide an efficient and flexible connection solution for pneumatic systems. They are widely used in industrial automation and are highly regarded for their quality.

User Evaluation: Users have given high praise for the JA series floating joint, complementing its ability to absorb eccentricity and insufficient parallelism, high-temperature tolerance, and high load response ability. It provides a stable and reliable pneumatic connection solution for users.

Overall, SMC's JA series floating joints are a reliable solution for connecting pneumatic and hydraulic systems with excellent performance and design. They are a staple in industrial automation, delivering stable and efficient operation.
